Kobelco SK-8 Excavator Solenoid Valve Troubleshooting Guide: Professional Maintenance Secrets
What is the Role of a Solenoid Valve?
When the solenoid valve coil is energized, the fixed iron core attracts the movable iron core to turn left via electromagnetic force. The movable iron core pushes the pushrod downward, switching the valve spool position.
Common Solenoid Valve Alarm & Troubleshooting Methods (SK-8 Series)
When your Kobelco excavator triggers D-series or E-series alarm codes, codes starting with D typically indicate related solenoid valve faults, while codes starting with E indicate proportional solenoid valve faults. Locate the components using the guidelines below (taking the Kobelco SK-8 series as an example):
Cross-Testing: Locate the suspect solenoid valve and swap its plug with an identical type of valve. If the original alarm disappears and a new one appears, the solenoid valve itself is faulty.
Wiring Inspection: Besides valve failure, harness issues are common. Check for adapter connectors between the wiring harness and the controller (computer board).
Spool Sticking Test: Insert a screwdriver or thin wire into the lower part of the proportional solenoid valve to push the spool upward. If it returns properly, the valve is sound; if it fails to return, the spool is stuck and requires cleaning.
Seal & Port Check: Inspect the four O-rings of the proportional valve for wear or damage (replace if necessary). Check for blockages in the ports and clean them out.

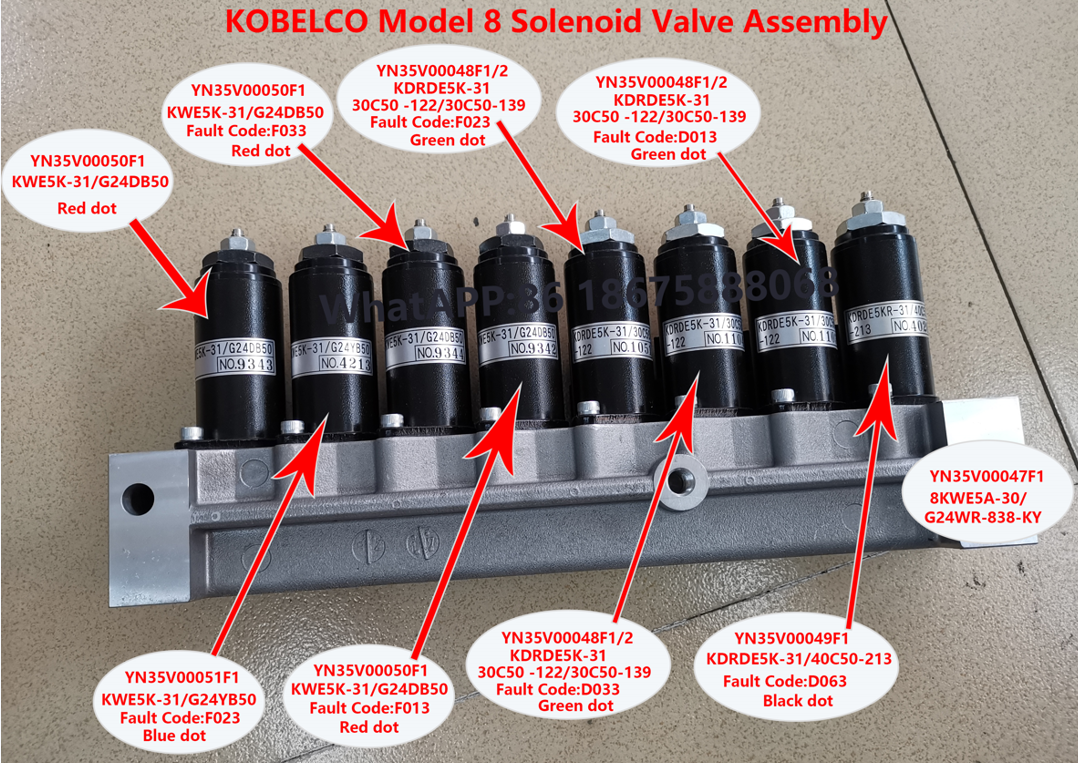

Kobelco SK-8 Solenoid Valve Common Fault Codes Table
| Fault Code | Fault Content | Description | Standard Troubleshooting Steps |
|---|---|---|---|
| D012 | P1 Loading Proportional Valve Output Transistor ON Fault | P1 pump loading proportional valve drive circuit short circuit. | 1. Swap plugs with another proportional valve; if D012 disappears and another code appears → valve/sensor damaged, replace. 2. If D012 persists → check harness and connectors for shorts/damage. 3. If wiring is OK → controller internal drive transistor damaged, replace controller. |
| D013 | P1 Unloading Proportional Valve Output Transistor ON Fault | P1 pump unloading proportional valve drive circuit short circuit. | Same troubleshooting logic as above. |
| D022 | P2 Unloading Proportional Valve Output Transistor ON Fault | P2 pump unloading proportional valve drive circuit short circuit. | Same troubleshooting logic as above. |
| D023 | P2 Unloading Proportional Valve Disconnection | P2 unloading proportional valve circuit open / coil open. | 1. Swap plugs; if D023 clears and new alarm shows → proportional valve body damaged. 2. If fault remains → check harness open circuit or loose connector pins. 3. If wiring is good → controller fault. |
| D032 | Straight Travel Proportional Valve Output Transistor ON Fault (PSV-C) | Travel straight proportional valve drive short circuit. | 1. Plug swap test; if D032 clears, other error shows → sensor/proportional valve damaged. 2. Fault unchanged → inspect wiring; finally replace controller. |
| D033 | Straight Travel Proportional Valve Disconnection (PSV-C) | Travel straight valve coil or circuit open. | 1. Swap plugs, D033 clears, new code pops → valve body damaged. 2. Fault remains → inspect harness; if normal, replace controller. |
| D062 | Arm Retract 2-Speed Proportional Valve Transistor ON / Disconnection | Arm retraction 2-speed proportional valve drive short circuit. | 1. Swap plug test, D062 clears, other alarm shows → proportional valve damaged. 2. Fault persists → check harness. 3. Wiring normal → replace controller. |
| D063 | Arm Retract 2-Speed Proportional Valve Disconnection | Arm retraction 2-speed proportional valve circuit/coil open. | 1. Swap plugs, D063 clears, other alarm appears → valve body damaged. 2. Fault unchanged → inspect harness. 3. Wiring OK → controller fault. |
| E012 | P1 Pump Proportional Valve Output Transistor ON Fault | P1 main pump proportional valve drive circuit short; controller output persistently conducting. | 1. Power off, swap this plug with another proportional valve plug. If E012 clears and another code appears → P1 pump proportional valve damaged, replace. 2. If E012 persists → check harness and connectors for short circuits/frayed insulation. 3. No abnormal wiring → controller internal drive transistor damaged, replace controller. |
| E013 | P1 Pump Proportional Valve Output Transistor ON Fault | P1 pump proportional valve drive short (same as E012, different channel). | Same troubleshooting workflow as above (power-off operation). |
| E022 | P2 Pump Proportional Valve Output Transistor ON Fault | P2 main pump proportional valve drive circuit short circuit. | 1. Power off and swap plugs, E022 shifts to other path → valve damaged. 2. Fault code unchanged → check harness short circuit. 3. Wiring OK → controller fault. |
| E023 | P2 Pump Proportional Valve Disconnection | P2 pump proportional valve coil open, harness broken, pins dropped. | 1. Power off, swap plugs, E023 follows plug to another valve → P2 valve coil damaged. 2. Fault code remains → check harness open circuit, pin back-out/oxidation. 3. Wiring normal → controller detection circuit fault. |
| F011 | ATT Boost Solenoid Valve Output Transistor OFF Fault, Ground Short | ATT boost solenoid valve circuit shorted to ground; controller output cannot shut off. | 1. Power off, swap with another solenoid plug. F011 clears, other code appears → valve body damaged, replace. 2. If F011 still alarms → check harness insulation damage/ground short, water in plug. 3. Wiring OK → controller drive channel damaged, replace controller. |
| F013 | ATT Boost Solenoid Valve Output Transistor ON Fault, Ground Short | ATT boost solenoid drive transistor persistently conducting, shorted to ground. | Same troubleshooting workflow as above. |
| F021 | Swing Parking Solenoid Valve Output Transistor OFF Fault, Ground Short | Swing parking (brake) solenoid circuit shorted to ground. | 1. Power off, swap plugs, fault code transfers → valve damaged. 2. Fault code unchanged → inspect harness ground short. 3. Wiring OK, replace controller. |
| F023 | Swing Parking Solenoid Valve Output Transistor ON Fault / Disconnection | Swing parking solenoid coil open / harness broken, drive transistor always ON. | 1. Power off, swap plug test, fault follows plug → valve damaged. 2. Fault unchanged → check harness open, pin corrosion/back-out. 3. Wiring normal → controller fault. |
| F041 | Select Solenoid Valve Output Transistor OFF Fault, Ground Short | Mode selection solenoid valve circuit shorted to ground. | 1. Power off, swap plugs, fault transfers → valve body fault. 2. Fault persists → check line ground short. 3. Wiring normal, replace controller. |
| F043 | Select Solenoid Valve Output Transistor ON Fault / Disconnection | Mode selection solenoid coil / harness open circuit. | 1. Power off, swap plugs, fault follows plug → valve damaged. 2. Fault code unchanged → inspect harness break. 3. Wiring OK, replace controller. |
How to Disassemble and Clean Solenoid / Proportional Valves
Disassembly Steps:

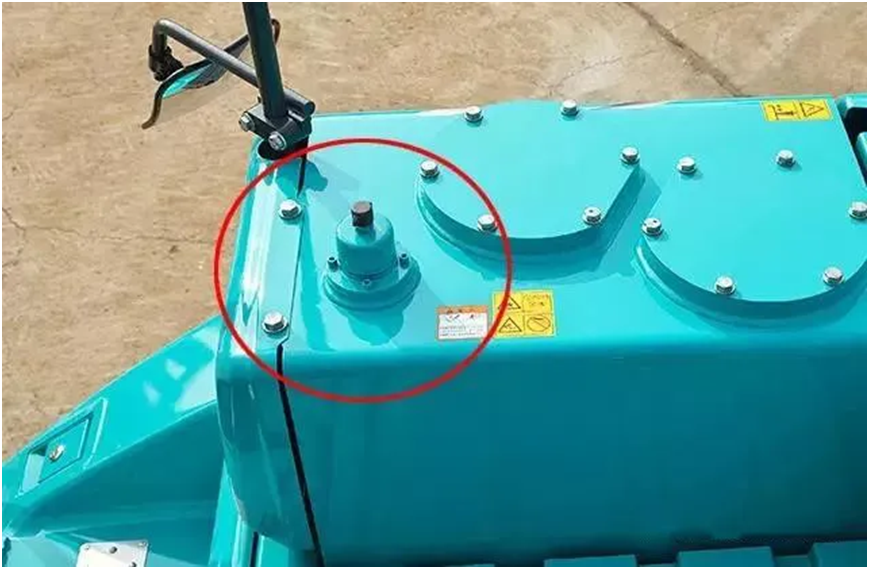

Under cold engine conditions, press the hydraulic oil tank exhaust valve to release pressure.
Use a 4mm Allen wrench to loosen the two socket head cap screws at the bottom of the solenoid valve. Loosen both sides evenly and simultaneously—do not fully loosen one side before the other.
Cleaning Steps:

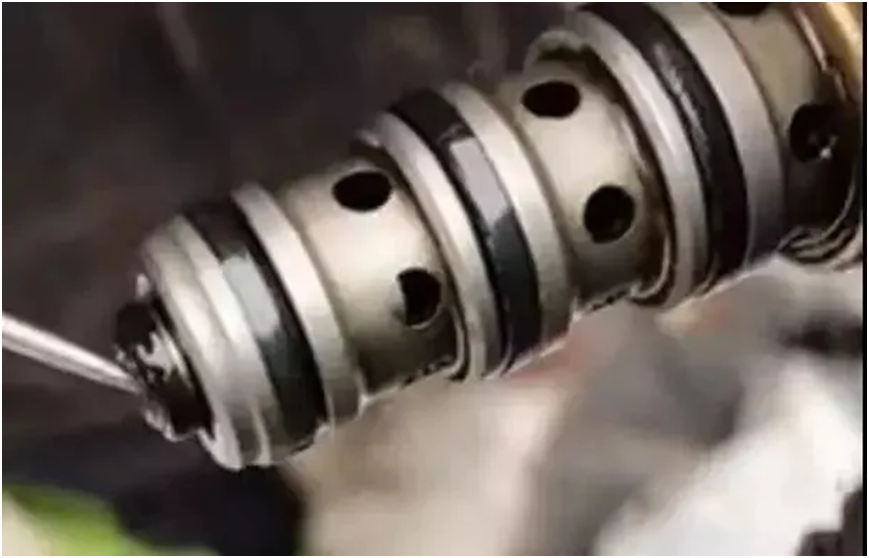

Use a needle hook to pull out the internal spool, then clean it with degreaser/solvent cleaner. Wipe away sludge with clean paper towels. The clearance between the spool and sleeve must be thoroughly cleaned.
Use a wrench to secure the bottom bolt, then use another wrench to remove the adjustment screw and clean the spring inside.
