YN35V00048F2 KDRDE5K-31 30C50 -139 Solenoid Valve for SK200-10 SK210-10 SK350-10 SK380-10 SK350-9

Kobelco SK200-10 SK210-10 SK350-10 SK380-10 SK350-9 Solenoid Valve YN35V00048F2 KDRDE5K-31/30C50-139

Part Namesolenoid valvePart NumberYN35V00048F2
BrandKobelco、KPM、KOBEKIApplicable ModelSK170-9 SK260-9 SK295-9 SK350-9 SK485-9 SK130-10 SK140-10 SK200-10 SK210-10 SK250-10 SK260-10 SK350-10 SK380-10 SK430-10 SK450-10 SK480-10 SK500-10

Weight: 0.6KG

YN35V00048F2 KDRDE5K-31 30C50 -139 Solenoid Valve for SK200-10 SK210-10 SK350-10 SK380-10 SK350-9

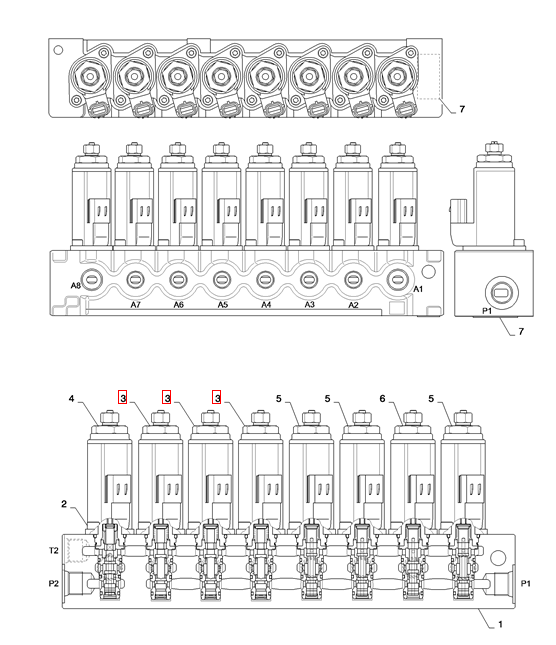

Image: Component Installation Diagram


When the Kobelco 10 excavator displays error codes D023, D0183, or D173, this solenoid valve must be replaced.

Recommended Best-Selling Kobelco Parts

YN35V00048F2 KDRDE5K-31 30C50 -139 Solenoid Valve for SK200-10 SK210-10 SK350-10 SK380-10 SK350-9YN35V00048F2 KDRDE5K-31 30C50 -139 Solenoid Valve for SK200-10 SK210-10 SK350-10 SK380-10 SK350-9YN35V00048F2 KDRDE5K-31 30C50 -139 Solenoid Valve for SK200-10 SK210-10 SK350-10 SK380-10 SK350-9
YN35V00048F2 KDRDE5K-31 30C50 -139 Solenoid Valve for SK200-10 SK210-10 SK350-10 SK380-10 SK350-9YN35V00048F2 KDRDE5K-31 30C50 -139 Solenoid Valve for SK200-10 SK210-10 SK350-10 SK380-10 SK350-9YN35V00048F2 KDRDE5K-31 30C50 -139 Solenoid Valve for SK200-10 SK210-10 SK350-10 SK380-10 SK350-9
YN35V00048F2 KDRDE5K-31 30C50 -139 Solenoid Valve for SK200-10 SK210-10 SK350-10 SK380-10 SK350-9YN35V00048F2 KDRDE5K-31 30C50 -139 Solenoid Valve for SK200-10 SK210-10 SK350-10 SK380-10 SK350-9YN35V00048F2 KDRDE5K-31 30C50 -139 Solenoid Valve for SK200-10 SK210-10 SK350-10 SK380-10 SK350-9


Which drawing and which valve number applies

YN35V00048F2 is the -139 valve listed for -9 and -10 machines. It is not covered by the 8-series valve block drawing used for YN35V00048F1; the body shape is close, but the suffix and the machine generation are what separate the two.

Before ordering, read the whole marking on the old valve. The table below puts the numbers that are easy to confuse side by side, so the comparison is made on data rather than on the outline of the part.

Solenoid valve numbers that are easy to confuse

These numbers all appear on similar-looking valves. Compare the marking and the machine generation rather than the shape.

Valve markingPart numberWhere it is listed
KDRDE5K-31/30C50-122YN35V00048F18 and 10 series solenoid valve block
KDRDE5K-31/30C50-139YN35V00048F29 and 10 series solenoid valve block
KWE5K-31/G24DB50YN35V00050F18 and 10 series travel and boost circuits
KWE5K-31/30C50-143YN35V00054F110 series hydraulic pump control
KWE5K-31/G24DB50YN35V00061F110 series valve assembly

YN35V00050F1 and YN35V00061F1 share the same valve marking, so both the number on the old valve and the machine serial number matter.

The -139 valve for -9 and -10 machines

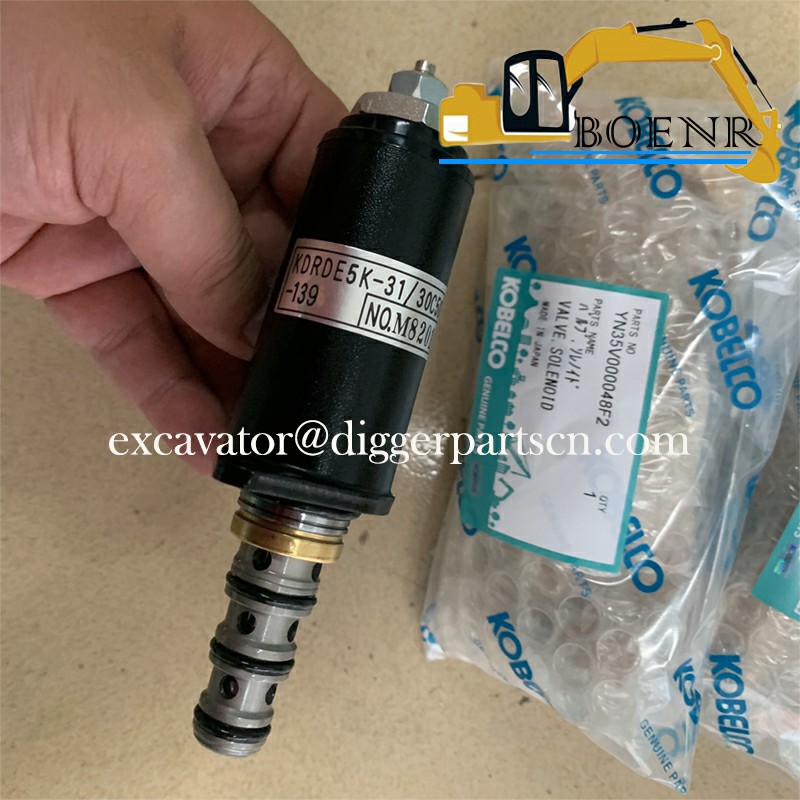

This is the YN35V00048F2 variant with the KDRDE5K-31/30C50-139 marking. It looks almost identical to YN35V00048F1, but the two are listed for different machine generations and should not be substituted for one another.

Codes that point to this valve

When a 10-series machine logs D023 or D173, the solenoid valve circuit is where the check starts. Write down the complete code and the operating condition that triggered it: a code that only appears while travelling points to a different circuit from one that appears at idle.

Checks before you replace it

Inspect the connector for oil and loose pins, then check the coil housing and the wiring back to the block. If the valve is still suspect, exchange it with an identical valve in another position and see whether the code moves with it. That result separates a failed valve from a wiring fault without guessing.

Confirm fitment before ordering

Match the YN35V00048F2 marking and the -139 suffix against the part removed, and give us the machine model and serial number. This number is listed for SK200-10, SK210-10, SK350-10, SK380-10 and SK350-9 among others; the exact valve block varies by serial number.

Common questions

Is this the same valve as YN35V00048F1? No. The bodies look alike but the suffixes and the listed machine ranges differ. Read the marking on the old part, not the shape.

Related parts on the same machine: YN35V00048F1 solenoid valve, YN35V00054F1 pump solenoid valve.

Troubleshooting reading: Kobelco -10 series fault codes and solenoid valve locations.

Confirm YN35V00048F2 fitment for your serial number
