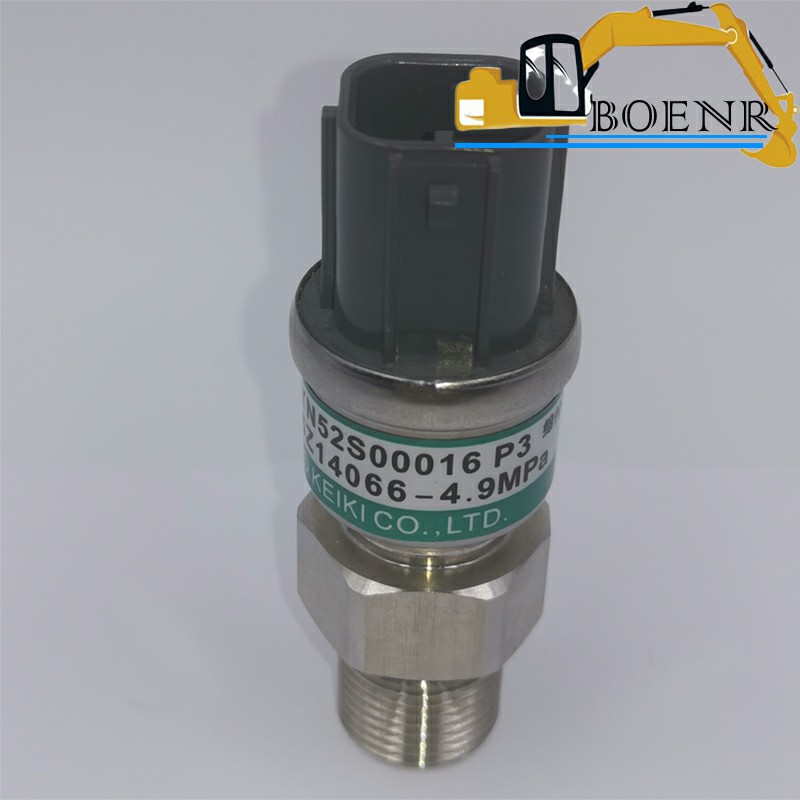

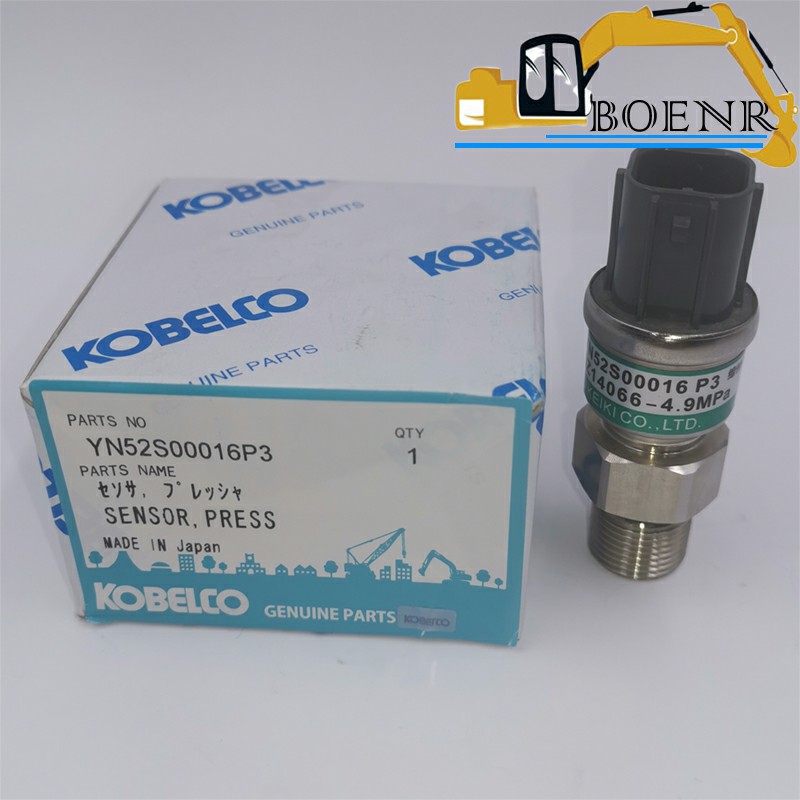

YN52S00016P3 negative Pressure Sensor For Kobelco SK200-6E SK330LC-6E SK480LC-6E SK200-6 SK230-6
SK200-6E SK330LC-6E SK480LC-6E negative Pressure Sensor YN52S00016P3 YN52S00016P2 YN52S00016P1
| Part Name | Pressure Sensor | Part Number | YN52S00016P3 YN52S00016P2 YN52S00016P1 |
| Brand | Kobelco | Applicable Model | SK200-6E SK330LC-6E SK480LC-6E SK200-6 SK230-6 SK330LC SK250LC SK290LC SK250LC SK210LC SK480LC |
Weight: 0.3KG

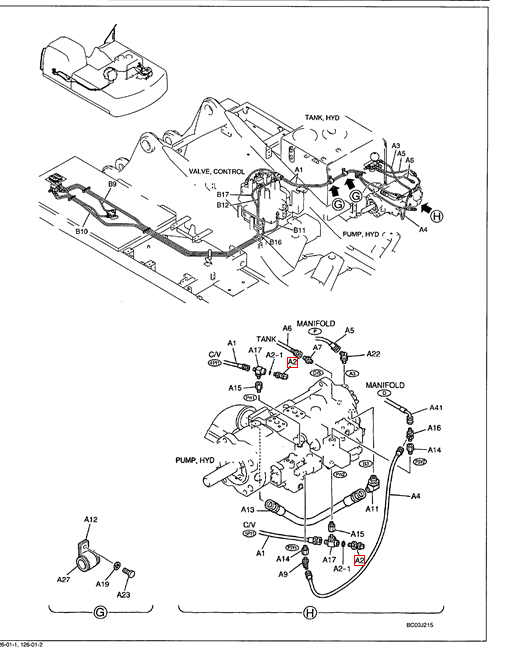

Installation Diagram for Component Locations
Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| B17 | 1 | 2420R537D390 | HOSE (3/8" PF), 3900mm Long (153-1/2 in) |
| B16 | 1 | 2420R537D340 | HOSE ASSY. 3400 mm long |
| B12 | 1 | 2420R537D400 | FLEXIBLE HOSE 4000mm Long (157-31/64 in) |
| B11 | 1 | 2420R537D360 | HOSE 9.60 mm ID x 3600.00 mm |
| B10 | 1 | 2444R1119D100 | HOSE 3/8" PF, 1000mm Long (39-3/8 in) |
| B9 | 1 | 2420R349D090 | HOSE 900.00 mm, 900mm Long (35-7/16 in) |
| AR | LS62H00003F1 | CONTROL LINES, PROPEL | |
| A41 | 1 | HX81X13064DX | FLEXIBLE HOSE Protective tube 640mm long, |
| A27 | 2 | YN03H01074P1 | BUSHING |
| A23 | 2 | ZS18C10016 | SCREW M10x1.50x16mm |
| A22 | 1 | ZH42X06000 | ELBOW 45° -- (Incls. O-Ring 237-6006) |
| A19 | 2 | ZW16H10000 | WASHER ID 11 x OD 24 x Th 3.2mm |
| A17 | 2 | YN06H01026P1 | TEE |
| A16 | 1 | 2444Z2336 | HYD CONNECTOR Tee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| A15 | 2 | 2444Z2525 | HYD CONNECTOR 1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) |
| A14 | 2 | HH25R04004G5 | HYD CONNECTOR (Incls. O-Ring ZD12P01100) |
| A13 | 1 | ZX22M12056 | HOSE 560 mm long |
| A12 | 2 | ZC46X38014 | CLIP Clamp -- Ø38.1mm Single Cable |
| A11 | 1 | ZH42X12000 | ELBOW 45° -- 3/4" PF (Incls. O-Ring 237-6012) |
| A9 | 1 | ZH32X04000 | HYD CONNECTOR Elbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| A7 | 1 | ZH22X06000 | HYD CONNECTOR (Incls. O-Ring ZD12P01400) (PF3/8) |
| A6 | 1 | 2444R1119D050 | HOSE 500mm Long (19-11/16 in) |
| A5 | 1 | 2420R537D065 | HOSE ASSY. 650mm Long (25-1/2 in) |
| A4 | 1 | 2420R349D050 | HOSE 500.00 mm, 500mm Long (19-11/16 in) |
| A3 | 1 | 2444R963D13 | FLEXIBLE HOSE 800mm Long (31-1/2 in) |
| A2-1 | 1 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| A2 | 2 | YN52S00016P3 | SENSOR PRESSURE |
| A1 | 2 | 2420R349D230 | HOSE ASSY. 2300mm Long (90-1/2 in) |
| AR | LS06H00021F1 | CONTROL LINES, PUMP |
When the excavator displays error codes B-11 or B-12, this sensor should be inspected and replaced.
