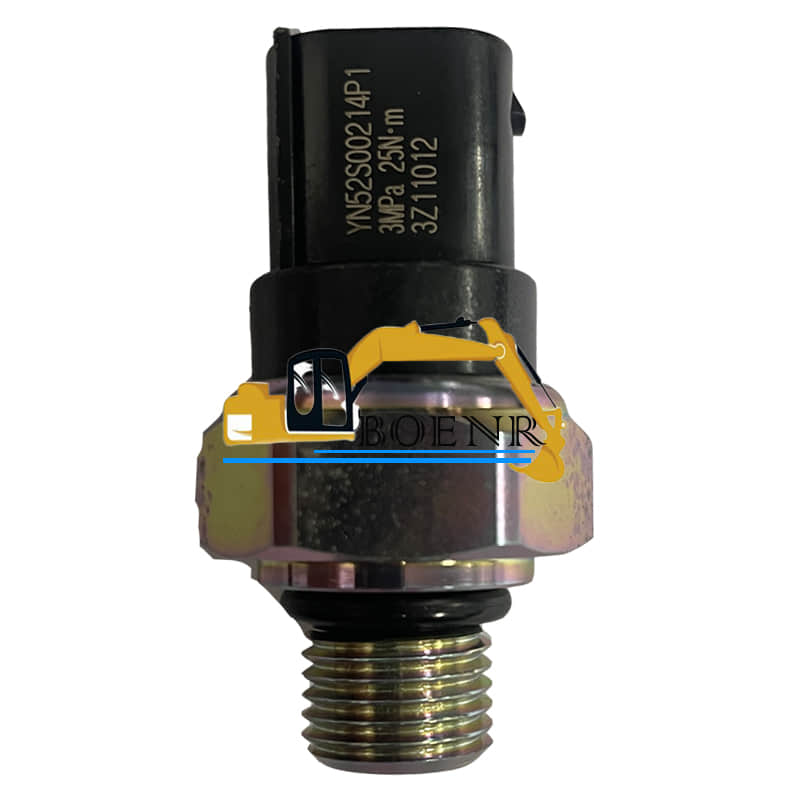

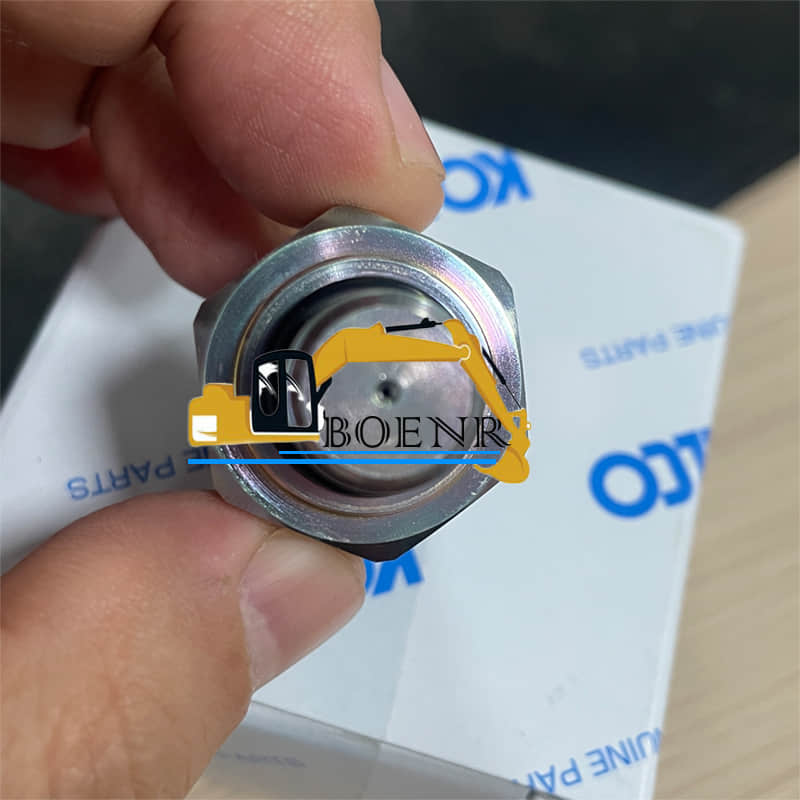

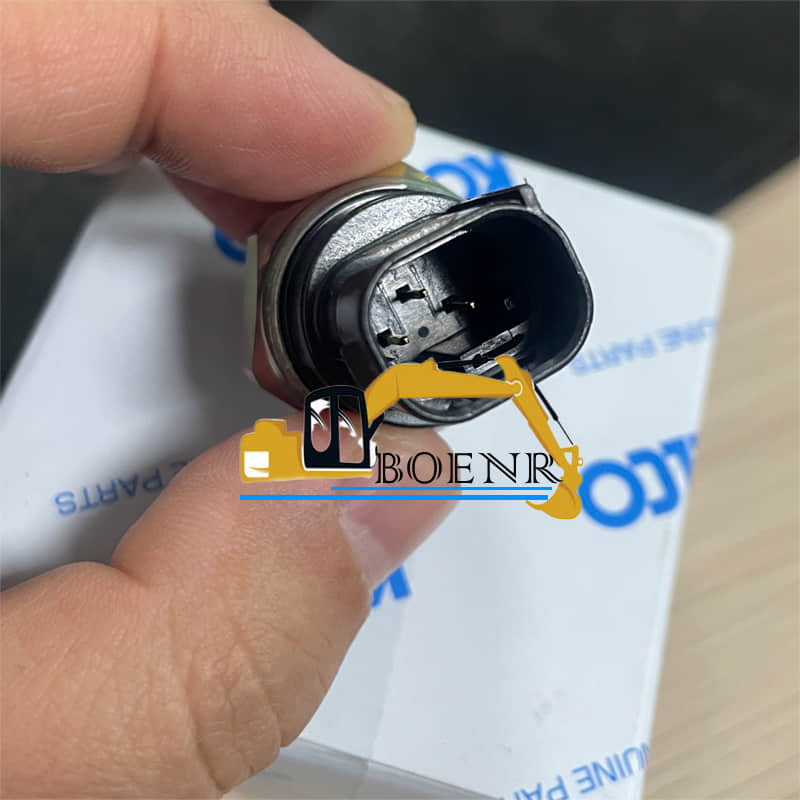

YN52S00214P1 Low Pressure Sensor For SK200-8 SK200-10 SK250-10 SK330-8 SK350-10 SK250-8 SK380-8
SK200-8 SK210-8 SK200-10 SK210-10 SK250-10 SK260-10 SK350-10 SK380-10 Low Pressure Sensor YN52S00214P1
| Part Name | Sensor | Part Number | YN52S00214P1 |
| Brand | Kobeki、Kobelco | Applicable Model | SK70SR SK80MSR SK100 SK115SR SK135SR SK235SR SK200-6 SK200-6E SK330-6 SK330-6E SK60-8 SK130-8 SK140-8 SK200-8 SK200-9 SK200-10 SK210-8 SK210-9 SK210-10 SK250-8 SK250-9 SK250-10 SK330-8 SK330-10 SK350-8 SK350-10 SK380-8 SK380-10 SK430-8 SK450-8 SK480-8 SK500-8 SK500-10 |
Weight: 0.2 kg
Packaging Size: 10*10*5 CM

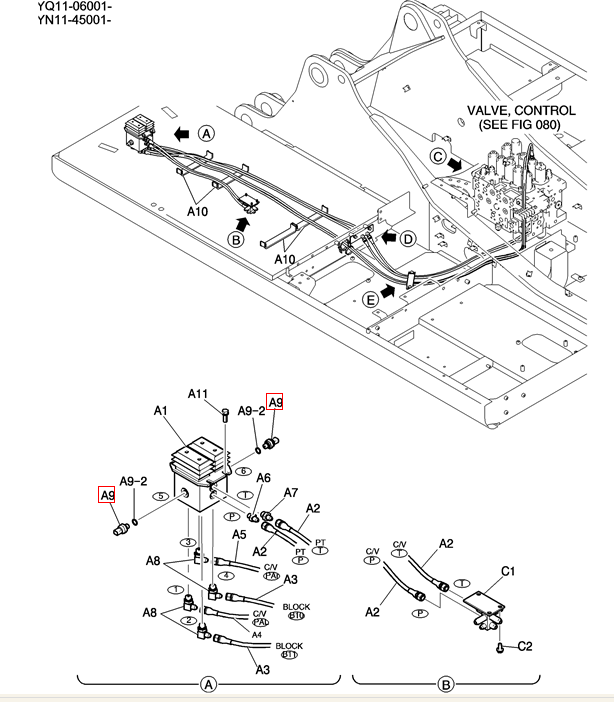

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| C2 | 3 | ZM73C08020 | BOLT Sems |
| C1 | 1 | YN64H01336P1 | BLOCK |
| AR | YN64H00183F1 | Control, Block | |
| B7 | 2 | ZM73C10020 | BOLT Sems |
| B6 | 1 | YN64H01288P1 | CLAMP |
| B4 | 2 | HM83C10030G1 | BOLT Sems |
| B3 | 1 | 2420R349D120 | HOSE 1200.00 mm |
| B2 | 1 | 2420R349D110 | HOSE 1100.00 mm |
| B1 | 1 | YN64H01291P1 | BLOCK |
| AR | YN64H00185F1 | Control, Block | |
| A13 | 1 | PY01P01043D8 | CLIP |
| A12 | 1 | YN13E01375P1 | CLIP |
| A11 | 4 | HM83C10030G1 | BOLT Sems |
| A10 | 4 | YN62H01015P1 | RUBBER BAND |
| A9-2 | 1 | ZD12P01100 | O-RING |
| 2 | LC52S00019P1 | SENSOR Press (L.P) Incls. O-Ring ZD12P01100, ASN YN11-46330 | |
| 2 | YN52S00214P1 | SENSOR Press (L.P) Incls. O-Ring ZD12P01100, ASN YQ11-06106 | |
| A9 | 2 | YX52S00013P1 | SENSOR Press (L.P) , BTW YN11-45001 & YN11-46329 |
| A9 | 2 | YX52S00013P1 | SENSOR Press (L.P), BTW YQ11-06001 & YQ11-06105 |
| A8 | 4 | ZH32X04006 | ELBOW |
| A7 | 1 | ZH22X04006 | HYD CONNECTOR |

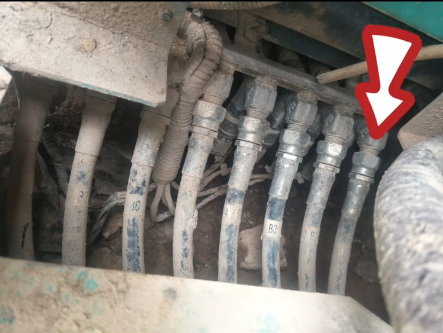

When an 8-series excavator displays fault codes B103 and B093, the low-pressure sensor on the travel pilot valve must be inspected.
When an 8-series excavator displays fault code B053, the bucket retraction low-pressure sensor must be inspected.
When an 8-series excavator displays fault code B063, the bucket extension low-pressure sensor must be inspected.
When an 8-series excavator displays fault code B013, the boom lift low-pressure sensor must be inspected.
When an 8-series excavator displays fault code B023, the boom lower low-pressure sensor must be inspected.
When an 8-series excavator displays fault code B043, the low-pressure sensor for the arm retraction must be inspected.
When an 8-series excavator displays fault code B033, the low-pressure sensor for the arm extension must be inspected.
