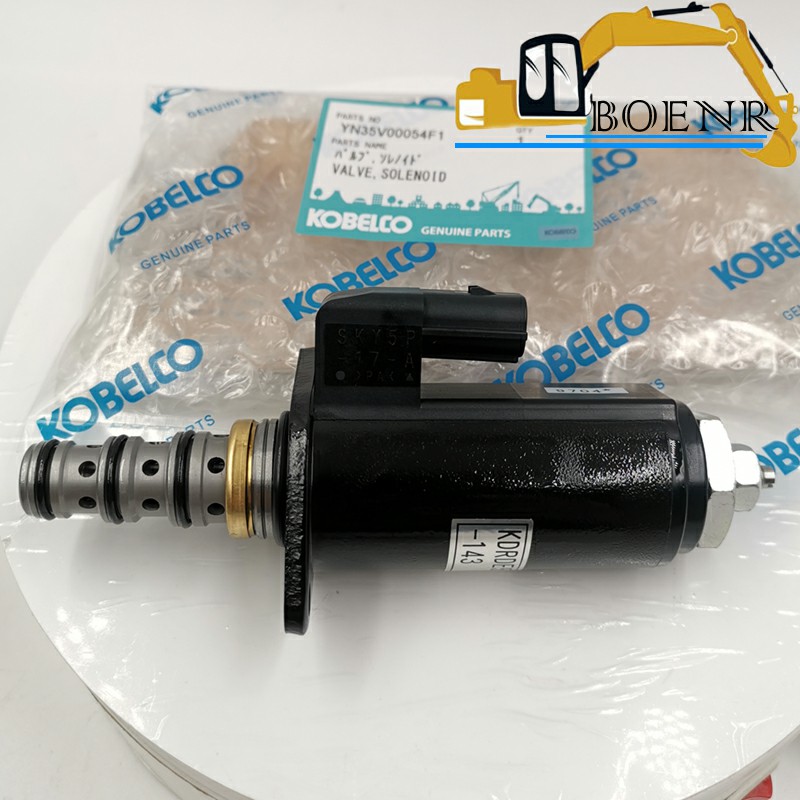

YN35V00054F1 KWE5K-31/30C50-143 Solenoid Valve for SK220-10 SK200-10 SK250-10 SK260-10 SK330-10

SK220-10 SK200-10 SK210-10 SK250-10 SK260-10 SK330-10 SK350-10 SK380-10 hydraulic pump Solenoid Valve KWE5K-31/30C50-143 YN35V00054F1

Part Namesolenoid valvePart NumberYN35V00054F1
BrandKobelco、KPM、KOBEKIApplicable ModelSK130-10 SK140-10 SK200-10 SK210-10 SK250-10 SK260-10 SK350-10 SK380-10 SK430-10 SK450-10 SK480-10 SK500-10

Weight: 0.6KG

YN35V00054F1 KWE5K-31/30C50-143 Solenoid Valve for SK220-10 SK200-10 SK250-10 SK260-10 SK330-10

Parts Catalog

符号

ITEM
部品番号

PARTS NO.
  PART   NAME部品名数量

QTY
2YN10V01011F1REGULATORレキュレータ2
2-1ZS28C06016CAPSCREWキャップ  スクリュ3
2-2ZS23C08040CAPSCREWキャップ  スクリュ5
2-3ZS23C08025CAPSCREWキャップ  スクリュ1
2-4ZS23C05012BOLTホルト2
2-5YW30V00001S157PLUGプラク2
2-6YW30V00001S155PLUGプラグ1
2-7YN30V00001S158PLUGプラク1
2-8LV10V00006S059PLUGプラク9
2-20YM10V01002S708O-RINGO- リンク1
2-21YN10V01001S727O-RINGO- リンク1
2-22YT10V00003S708O-RINGO- リンク3
2-23YX10V00003S015O-RINGO- リンク1
2-24YT10V00003S710O-RINGO- リンク3
2-25LQ10V01006S758RINGリング10
2-26ZN18C10008NUTナット1
2-31EB15V01001S801SETSCREWセットスクリュ1
2-32YN35V00054F1VALVE, SOLENOIDバルプ,ソレノイト1
2-32FYN35V00004S361O-RINGO- リンク1
2-32GYN35V00004S362O-RINGO- リンク1
2-32HYN35V00004S363O-RINGO- リンク1
2-32KYN35V00018S802NUTナット1
2-32LZD12P02000O-RINGO- リンク1

When an 10-series excavator displays fault codes E013 or E023, the solenoid valve on the hydraulic pump must be inspected.

Recommended Best-Selling Kobelco Parts

YN35V00054F1 KWE5K-31/30C50-143 Solenoid Valve for SK220-10 SK200-10 SK250-10 SK260-10 SK330-10YN35V00054F1 KWE5K-31/30C50-143 Solenoid Valve for SK220-10 SK200-10 SK250-10 SK260-10 SK330-10YN35V00054F1 KWE5K-31/30C50-143 Solenoid Valve for SK220-10 SK200-10 SK250-10 SK260-10 SK330-10
YN35V00054F1 KWE5K-31/30C50-143 Solenoid Valve for SK220-10 SK200-10 SK250-10 SK260-10 SK330-10YN35V00054F1 KWE5K-31/30C50-143 Solenoid Valve for SK220-10 SK200-10 SK250-10 SK260-10 SK330-10YN35V00054F1 KWE5K-31/30C50-143 Solenoid Valve for SK220-10 SK200-10 SK250-10 SK260-10 SK330-10
YN35V00054F1 KWE5K-31/30C50-143 Solenoid Valve for SK220-10 SK200-10 SK250-10 SK260-10 SK330-10YN35V00054F1 KWE5K-31/30C50-143 Solenoid Valve for SK220-10 SK200-10 SK250-10 SK260-10 SK330-10YN35V00054F1 KWE5K-31/30C50-143 Solenoid Valve for SK220-10 SK200-10 SK250-10 SK260-10 SK330-10


Item 2-32 in the pump regulator parts list

In the hydraulic pump regulator parts list, YN35V00054F1 is called out as item 2-32, one valve per regulator. Its seals and fixings are listed immediately after it as 2-32F, 2-32G, 2-32H, 2-32K and 2-32L.

The regulator itself sits at item 2 on the same sheet, so a pump fault is not automatically a valve fault. Work through the fault code first, then use the drawing to locate the parts that come off with the valve.

Pump control solenoid on 10-series machines

YN35V00054F1 (KWE5K-31/30C50-143) is the solenoid valve used on the hydraulic pump of 10-series excavators, including SK200-10, SK210-10, SK250-10, SK260-10, SK330-10, SK350-10 and SK380-10.

E013 and E023: a practical order of checks

Both codes point at the pump solenoid circuit. Note whether the machine loses pump response under load or right from startup, then inspect the coil connector and the harness before removing anything.

A swap with an identical valve on the pump, where one is fitted, shows whether the fault follows the valve. Re-seat the O-rings and fittings when refitting.

Before you order

Read the marking on the valve body and compare it with the part removed. The 10-series pump carries several solenoid valves with similar bodies and different numbers, so a photo of the marking plus the machine serial number is the safest way to confirm.

Common questions

Are the O-rings included? Send the photo of your valve and we will confirm which seals and fittings are needed for your assembly.

Related parts on the same machine: YN35V00061F1 solenoid valve.

Troubleshooting reading: Kobelco -10 series fault codes and solenoid valve locations.

Send your pump valve marking for a YN35V00054F1 match

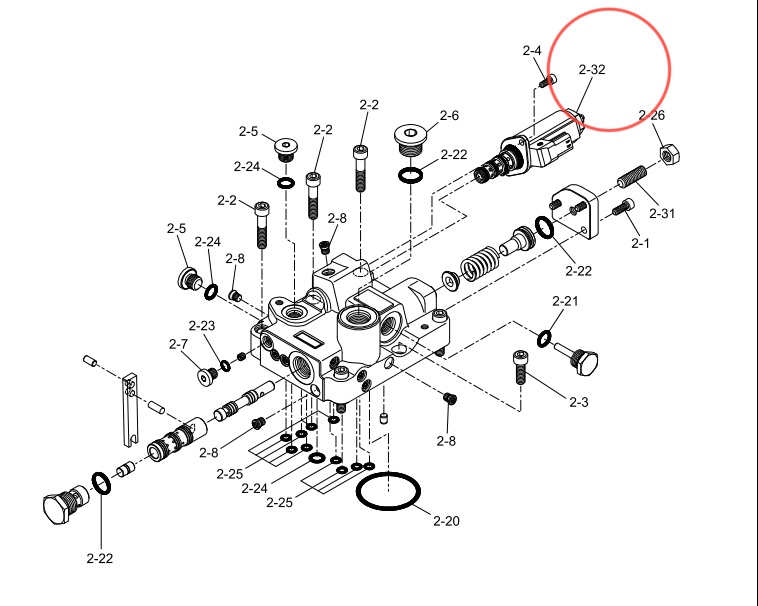

Reading item 2-32 on the pump regulator drawing above

The exploded view at the top of this page is the regulator assembly for the 10-series hydraulic pump. Item 2-32 is circled on that drawing: it is the solenoid valve YN35V00054F1, one valve per regulator. The drawing also shows the regulator body as item 2 together with the cap screws, plugs and O-ring groups around it; those are separate line items in the parts list above and are not supplied with the valve.

Five small parts sit directly under the 2-32 callout in that parts list: 2-32F, 2-32G, 2-32H, 2-32K and 2-32L. They are the seals, nut and O-ring for this valve. Check their condition when the old valve comes off, so a worn seal is not carried over to the new one.

A callout number is a drawing position, not a part number. Find 2-32 in the parts list above to get the valve number, then read the marking on the old valve body to confirm YN35V00054F1 before ordering.
