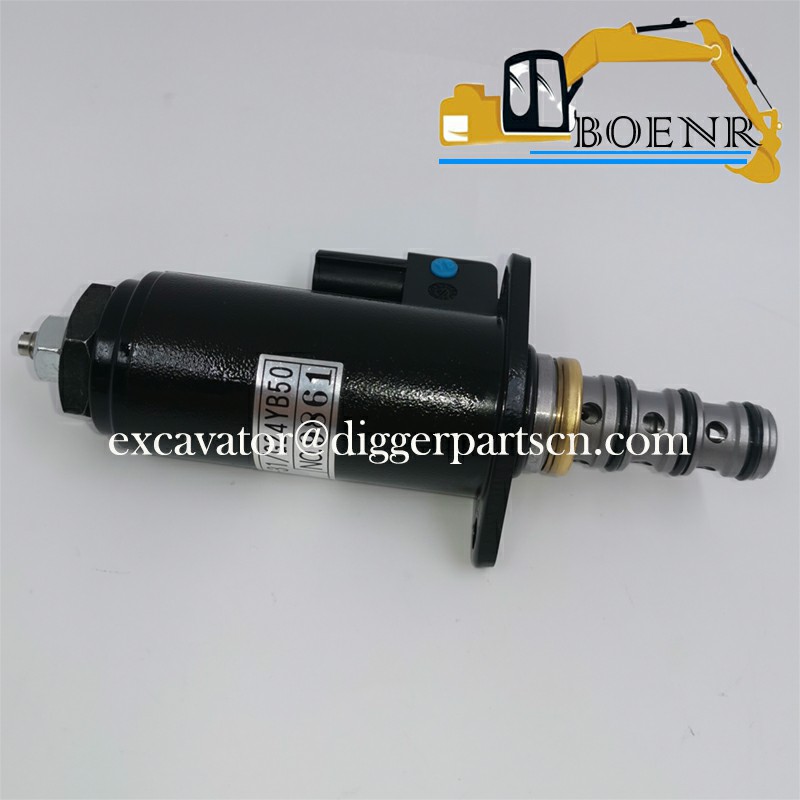

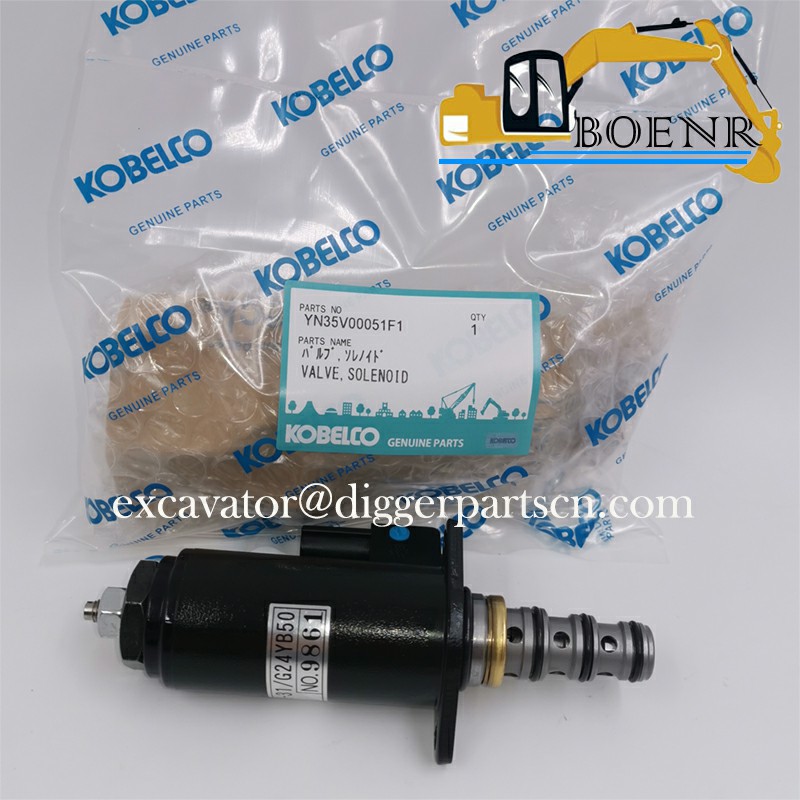

YN35V00051F1 KWE5K-31/G24YB50 Solenoid Valve Kobelco SK200-10 SK210-10 SK350-8 SK380-8

Kobelco SK200-8 SK210-8 SK250-8 SK200-10 SK210-10 SK350-8 SK380-8 Solenoid Valve YN35V00051F1 KWE5K-31/G24YB50

Part Namesolenoid valvePart NumberYN35V00051F1
BrandKobelco、KPM、KOBEKIApplicable ModelSK140SR SK130-8 SK140-8 SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK380-8 SK430-8 SK450-8 SK480-8 SK500-8 SK130-10 SK140-10 SK200-10 SK210-10 SK250-10 SK260-10 SK350-10 SK380-10 SK430-10 SK450-10 SK480-10 SK500-10

Weight: 0.6KG

When an 8-series excavator displays error code F023, you must inspect the solenoid valve, which is used to release the swing brake.


YN35V00051F1 KWE5K-31/G24YB50 Solenoid Valve Kobelco SK200-10 SK210-10 SK350-8 SK380-8

Recommended Best-Selling Kobelco Parts

YN35V00051F1 KWE5K-31/G24YB50 Solenoid Valve Kobelco SK200-10 SK210-10 SK350-8 SK380-8YN35V00051F1 KWE5K-31/G24YB50 Solenoid Valve Kobelco SK200-10 SK210-10 SK350-8 SK380-8YN35V00051F1 KWE5K-31/G24YB50 Solenoid Valve Kobelco SK200-10 SK210-10 SK350-8 SK380-8
YN35V00051F1 KWE5K-31/G24YB50 Solenoid Valve Kobelco SK200-10 SK210-10 SK350-8 SK380-8YN35V00051F1 KWE5K-31/G24YB50 Solenoid Valve Kobelco SK200-10 SK210-10 SK350-8 SK380-8YN35V00051F1 KWE5K-31/G24YB50 Solenoid Valve Kobelco SK200-10 SK210-10 SK350-8 SK380-8
YN35V00051F1 KWE5K-31/G24YB50 Solenoid Valve Kobelco SK200-10 SK210-10 SK350-8 SK380-8YN35V00051F1 KWE5K-31/G24YB50 Solenoid Valve Kobelco SK200-10 SK210-10 SK350-8 SK380-8YN35V00051F1 KWE5K-31/G24YB50 Solenoid Valve Kobelco SK200-10 SK210-10 SK350-8 SK380-8


Position 702 on the solenoid valve block diagram

YN35V00051F1 is called out as item 702, fitted once on the block. It is the single valve at that position, while items 601 and 701 each take three valves, under assembly number YN35V00047F1.

The sub-figure for this callout is HC854. Because this valve releases the swing brake, a fault in its circuit shows up as a swing lock symptom rather than a general loss of hydraulic power.

Part numbers printed on the valve block drawing

The table reproduces the callouts on the same sheet. The highlighted line is item 702, the valve on this page.

RefPart numberDescription
901YY35V00007S901Name plate
702YN35V00051F1Solenoid valve assy, see HC854
701YN35V00050F1Solenoid valve assy, see HC853
602YN35V00049F1Solenoid valve assy, see HC852
601YN35V00048F1Solenoid valve assy, see HC851
171YN35V00047S171Cap screw
101YN35V00047S101Case
ARYN35V00047F1Hydraulic valve, solenoid valve assy

Only one YN35V00051F1 is fitted, so there is no second valve of the same number on the block. Compare it with another valve of the same type and watch whether the alarm follows the connector.

What F023 tells you on an -8 machine

F023 is tied to the solenoid valve that releases the swing brake. When the brake does not release, the swing function stays locked even though the rest of the hydraulics work normally. This valve carries the KWE5K-31/G24YB50 marking and sits in position 702 on the solenoid valve block.

Rule out the simple causes first

Check that the swing lock is released, then inspect the valve connector, the pins and the coil housing. Swap the connector with an identical valve on the same block and watch whether the alarm follows the valve. If it stays with the original position, the wiring is the better suspect.

Number and position check

The parts list shows YN35V00051F1 once on the block while other positions use YN35V00050F1 and YN35V00048F1. Do not order by position alone. Read the marking on the old valve and send your model and serial number so the match can be confirmed.

Common questions

Can a wiring fault produce F023? Yes. A damaged connector or harness in the same circuit can trigger the code, which is why the swap test comes before ordering.

Related parts on the same machine: YN35V00050F1 solenoid valve.

Troubleshooting reading: Kobelco -10 series fault codes and solenoid valve locations.

Check YN35V00051F1 against your machine serial number
