Kobelco Hino J05 & J08 Engine Fault Codes, Sensor Locations & Troubleshooting Guide
1. Introduction & Overview

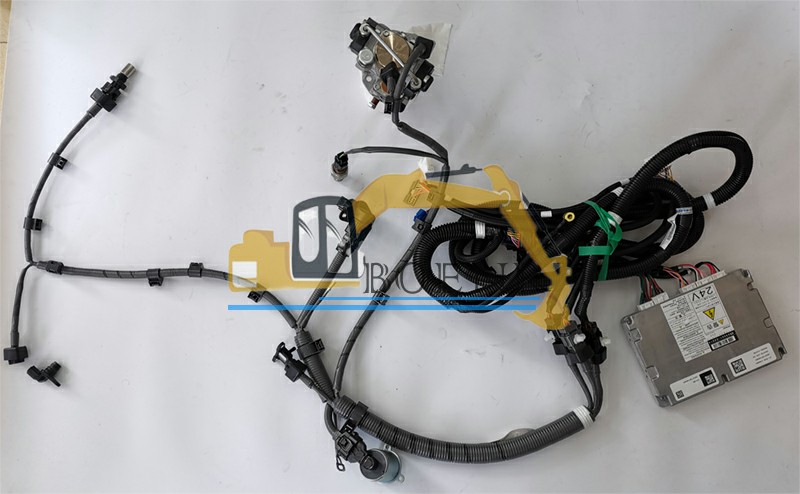

Illustration of the J05E Engine Sensors
2. Quick Reference Table: Sensors, Fault Codes & Symptoms
Use this quick-lookup table for Hino J05/J08 engine troubleshooting:
| Component Name | Location | Fault Codes | Symptoms |
|---|---|---|---|
| EGR Solenoid Valve | Engine / Fan side | P0404, P0405, P0406, P0489 (J05) P0407, P0408, P1402 (J08) | Slow machine operation, black smoke |
| Atmospheric Pressure Sensor | Engine compartment | P0234, P0237 | Black smoke, engine unable to rev up |
| Fuel Injector Main Connector | Engine harness | P0201, P0202, P0203, P0204 | Cylinder misfire, rough engine sound, vibration |
| SCV Valve | Diesel pump | P0628, P0088, P2635 | Engine speed drop, slow operation, engine stalling |
| Fuel Temperature Sensor | Near diesel pump | P0183 | Usually no direct excavator fault symptom |
| Camshaft Speed Sensor | Valve cover area | P0340, P0341, P0219 | Hard starting, speed instability, power loss, stalling |
| CPU Main Speed Sensor | Lower edge of the flywheel | G033,G043 | Wrong CPU data, Hydraulic system power drops, engine shuts down |
| Common Rail Pressure Sensor | Top center of engine | P0193, P0192, P0191 (J05) P193 (J08) | Hard starting, black smoke, engine dragging/stalling |
| Water Temperature Sensor | Generator upper area / Thermostat | P0117, P0118 | Abnormal water temp, slow machine operation |
| Engine Oil Pressure Sensor | Below turbocharger | Displayed as Chinese Text: (Low Oil Pressure) | Engine shutdown after starting, low pressure alarm |
| ECU/Crankshaft Speed Sensor | Lower edge of the flywheel | P0335, P0336 | Wrong ECU data, slow movement |
3. Detailed Component Analysis & Troubleshooting
3.1 EGR Solenoid Valve
Location: Positioned near the engine body and fan side. J08 engines feature dual EGR solenoids.
Fault Codes: P0404, P0405, P0406, P0489 (J05); P0407, P0408, P1402 (J08).
Symptoms: When these valves malfunction, the entire excavator experiences sluggish hydraulic operation and excessive black smoke.
3.2 SCV Valve & Common Rail Pressure Sensor
SCV Valve Location: Mounted directly on the diesel pump. Fault codes include P0628, P0088, P2635, leading to engine speed drops and stalling.
Common Rail Pressure Sensor: Located on top of the engine (J05 vs J08 positioning varies slightly). Codes like P0193, P0192, P0191 cause incorrect pressure readings, hard starting, and black smoke.
3.3 Speed Sensors: Camshaft & Crankshaft
Camshaft Sensor: Located near the valve cover, yielding codes P0340, P0341, P0219 (hard starting, unstable idle).
Crankshaft / ECU Main Speed Sensor: Located at the lower flywheel housing with codes P0335, P0336, G033, G043. Failure results in incorrect data transmission, slow vehicle movement, and random engine shutdown.
