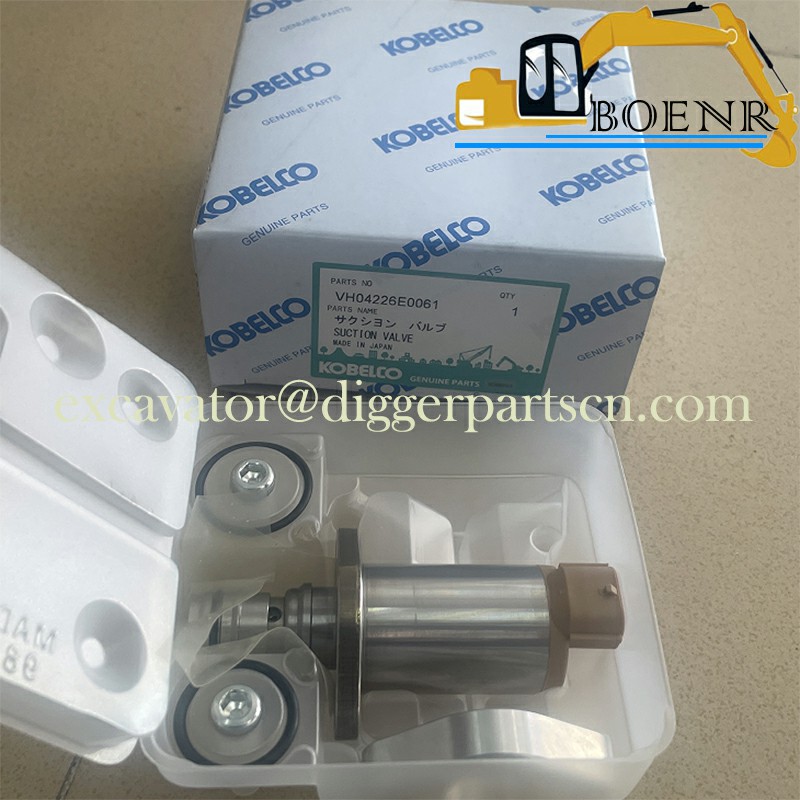

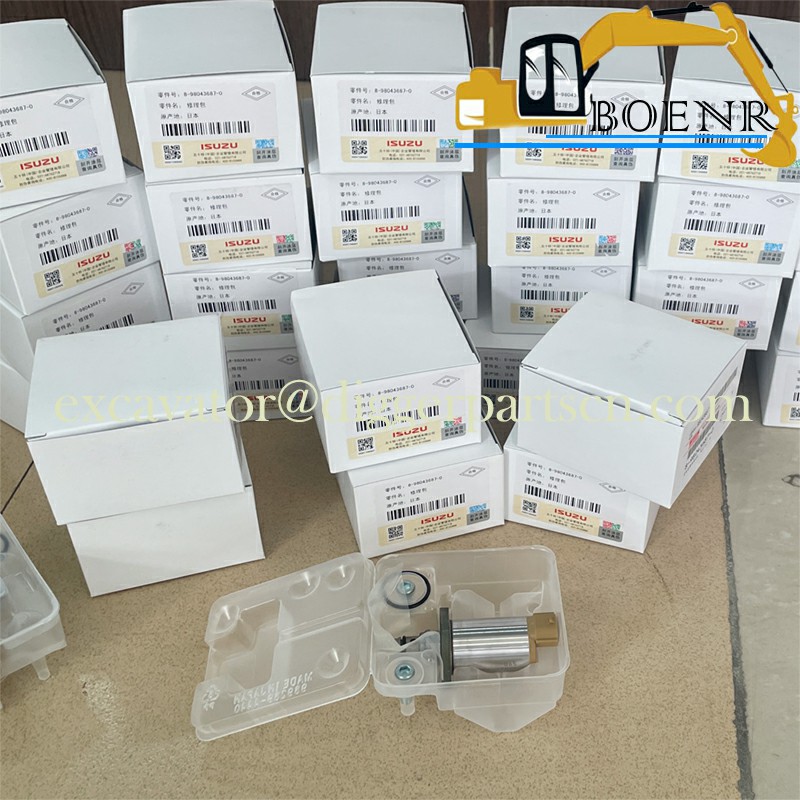

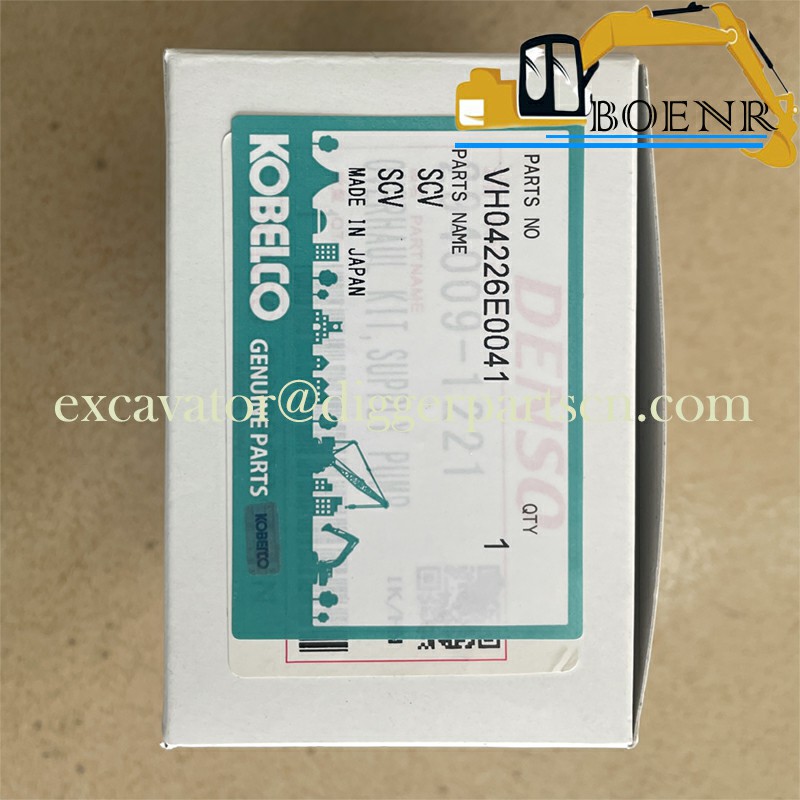

294009-1221 VH04226E0041 VH04226E0061 8-98043687-0 SCV Valve For SK200-8 SK210-8 SK250-8 SK260-8
SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK380-8 SCV Valve 294009-1221 VH04226E0041 VH04226E0061 8-98043687-0 S2273-11071
| Part Name | SCV Valve | Part Number | 294009-1221 VH04226E0041 VH04226E0061 8-98043687-0 S2273-11071 |
| Brand | Kobelco、DESON、ISUZU | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK380-8 |
Weight:0.6KG

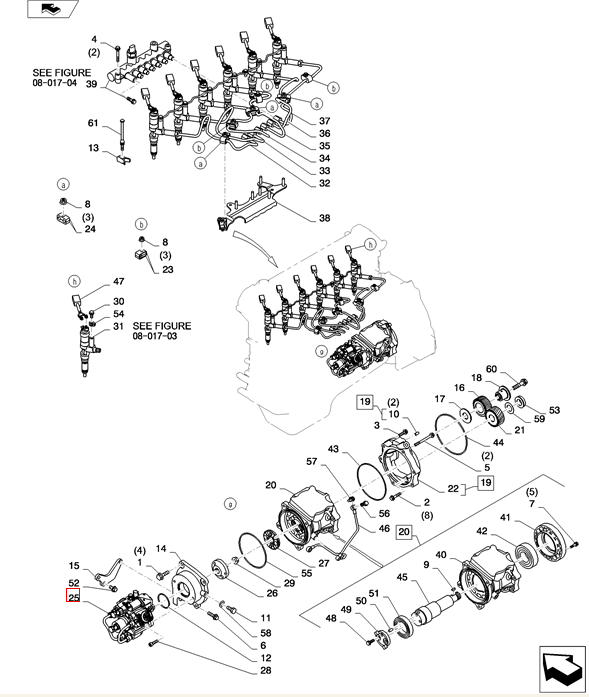

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 61 | 6 | VHSZ91024336 | BOLT |
| 60 | 1 | VHSZ91024194 | BOLT |
| 59 | 1 | VHSZ91029033 | COLLAR |
| 58 | 1 | VHSZ43010004 | WASHER Soft |
| 57 | 3 | VHSZ43010011 | WASHER Soft |
| 56 | 3 | VHSZ40110019 | BOLT |
| 55 | 1 | VHSZ30101054 | O-RING |
| 54 | 6 | VHSZ20908024 | WASHER |
| 53 | 1 | VHSZ17824002 | NUT |
| 52 | 2 | VHSZ10510041 | FLANGE BOLT |
| 51 | 1 | VHS900740116 | BALL BEARING |
| 50 | 1 | VHS900727136 | PIN |
| 49 | 1 | VHS900714113 | COLLAR |
| 48 | 2 | VHS900700327 | BOLT |
| 47 | 6 | VH82121E0611 | WIRE HARNESS Engine |
| 46 | 1 | VHS296012151 | PIPE Sub Assy., Oil |
| 45 | 1 | VHS291971570 | CAMSHAFT |
| 44 | 1 | VHS291791160 | O-RING |
| 43 | 1 | VHS291791150 | O-RING |
| 42 | 1 | VHS291721220 | BEARING |
| 41 | 1 | VHS291711360 | BEARING Holder |
| 40 | 1 | VHS291611490 | BLOCK Cyl. |
| 39 | 1 | VH23810E0170 | FUEL INJECTION PUMP Common, See Figure 08-017-04 |
| 38 | 1 | VH23809E0370 | SUPPORT TUBE Fuel Pipe |
| 37 | 1 | VH23706E0130 | PIPE Injection, No.6 |
| 36 | 1 | VH23705E0100 | PIPE Injection, No.5 |
| 35 | 1 | VH23704E0180 | PIPE Injection, No.4 |
| 34 | 1 | VH23703E0140 | PIPE Injection, No.3 |
| 33 | 1 | VH23702E0180 | PIPE Injection, No.2 |
| 32 | 1 | VH23701E0140 | PIPE Injection, No.1 |
| 31 | 6 | VH23670E0400 | FUEL SYSTEM INJECTOR , See Figure 08-017-03 |
| 30 | 6 | VHS228351570 | BOLT Joint |
| 29 | 1 | VHS228252570 | NUT |
| 28 | 3 | VHS228153740 | BOLT |
| 27 | 1 | VH22670E0040 | COUPLING |
| 26 | 1 | VHS226112421 | FLANGE Coupling |
| 25 | 1 | 22100-E0021 | PUMP Supply |
| 24 | 6 | VH21576E0020 | CLIP |
| 23 | 6 | VH21576E0010 | CLIP |
| 22 | 1 | VHS136911830 | CASE Brg. Holder |
| 21 | 1 | VH13613E0120 | GEAR Injection Pump Drive |
| 20 | 1 | VH13610E0050 | SHAFT Injection Pump Drive Housing, Includes Ref. 7, 9, 40-42, 45, 48-51 |
| 19 | 1 | VH13607E0010 | CASE Sub-Assy., Injection Pump Drive, Includes Ref. 10, 22 |
| 18 | 1 | VH13581E0210 | SHAFT Idle Gear |
| 17 | 1 | VHS135721490 | PLATE Idle Gear Thrust |
| 16 | 1 | VH13508E0341 | GEAR Idle |
| 15 | 1 | VHS114912570 | BRACKET Inj. Pump |
| 14 | 1 | VH11334E0060 | INJECTOR NOZZLE HOLDER Pump Drive Shaft Brg |
| 13 | 6 | VHS111951180 | CLAMP Nozzle Holder |
| 12 | 1 | VHSN73210493 | O-RING |
| 11 | 1 | VHSN46101011 | PLUG |
| 10 | 2 | VHSM21200816 | PIN Straight |
| 9 | 1 | VHSM16100516 | WOODRUFF KEY |
| 8 | 14 | VHSL15010808 | NUT |
| 7 | 5 | VHSH69110625 | BOLT |
| 6 | 1 | VHSH55211028 | FLANGE BOLT |
| 5 | 2 | VHSH55210885 | FLANGE BOLT |
| 4 | 2 | VHSH55210860 | FLANGE BOLT |
| 3 | 1 | VHSH55210845 | FLANGE BOLT |
| 2 | 9 | VHSH55210840 | FLANGE BOLT |
| 1 | 4 | VHSH55210825 | FLANGE BOLT |
