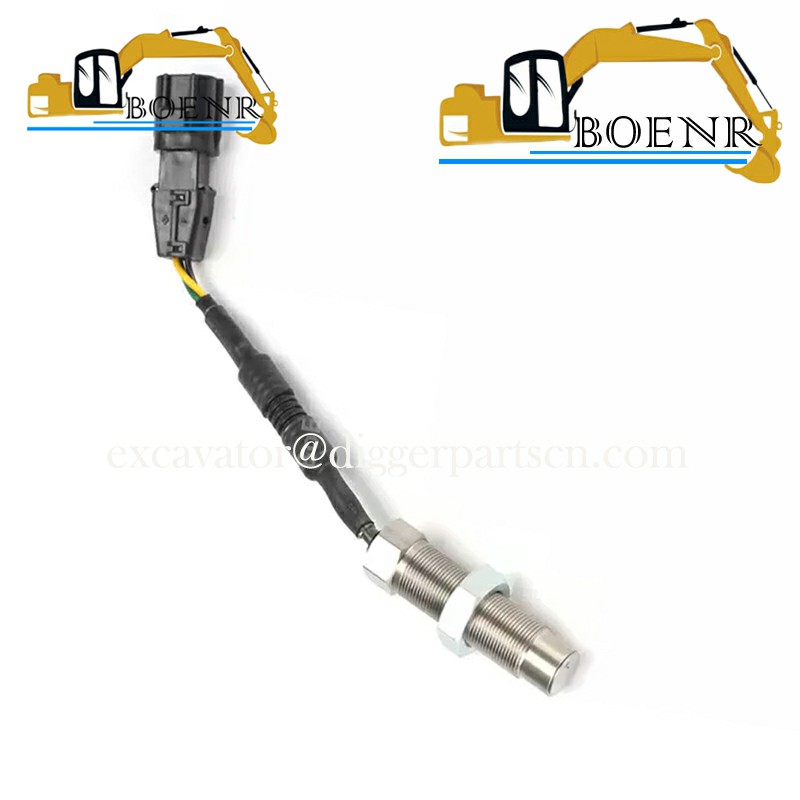

VH894101290A S8941-01290 J05E J08E engine Speed Sensor for SK200-8 SK210-8 SK350-8 SK350-9 SK485-9

SK200-8 SK210-8 SK350-8 SK350-9 SK485-9 J05E J08E engine Speed Sensor VH894101290A S8941-01290 VHS894101290

Part NameSpeed SensorPart NumberVH894101290A S8941-01290 VHS894101290
BrandKobelco、KOBEKIApplicable ModelSK200-8 SK210-8 SK350-8 SK350-9 SK485-9

Weight: 0.5KG

VH894101290A S8941-01290 J05E J08E engine Speed Sensor for SK200-8 SK210-8 SK350-8 SK350-9 SK485-9

Parts Catalog

ITEMQTYPart NumberPart Name
161VH894101290ASENSOR Assy
151VH985119116AO-RING
141VH834601510ASWITCH Assy, Level   Warning
131YN30T01002P1ELEMENT Filter Fuel   E/G  Hino pn VH23390E0010
121YN30T01001P1ELEMENT Filter Oil   E/G   Hino pn VH156072190A
111VH156601090APLUG Assy, Oil
101VH040166104ATHERMOSTAT Kit
91VH270402192AALTERNATOR Assy
81VH281002894ASTARTER MOTOR Assy
71VH900149375ABELT V-belt (2 Pieces   Set) (2)
1-1B1YN22E00263S002Software Not serviced
1-1A1YN22E00263S001CONTROLLER   Unprogrammed - Hino pn VH89661E0010
61YN20M01494D1BELT V (conditioner,   Air)  (COG B66)
51YN05P01495P1HOSE
41YN05P01439P1HOSE
31YN05P01494P1RADIATOR HOSE
21YN05P01479P1HOSE Radiator

1YN02P00042F1ENGINE Assy , BTW   YQ11-06077 & YN11-46018
1-11YN22E00263F1CONTROLLER Assy
11YN02P00028F1ENGINE Assy , BTW   YN11-45001 & YN11-46017
11YN02P00028F1ENGINE Assy , BTW   YQ11-06001 & YQ11-06076

ARYN02P00031F1Instal (See Fig   No.025-01-1,2)

ARYN02P00034F1Instal


Recommended Best-Selling Kobelco Parts

VH894101290A S8941-01290 J05E J08E engine Speed Sensor for SK200-8 SK210-8 SK350-8 SK350-9 SK485-9 VH894101290A S8941-01290 J05E J08E engine Speed Sensor for SK200-8 SK210-8 SK350-8 SK350-9 SK485-9 VH894101290A S8941-01290 J05E J08E engine Speed Sensor for SK200-8 SK210-8 SK350-8 SK350-9 SK485-9
VH894101290A S8941-01290 J05E J08E engine Speed Sensor for SK200-8 SK210-8 SK350-8 SK350-9 SK485-9 VH894101290A S8941-01290 J05E J08E engine Speed Sensor for SK200-8 SK210-8 SK350-8 SK350-9 SK485-9 VH894101290A S8941-01290 J05E J08E engine Speed Sensor for SK200-8 SK210-8 SK350-8 SK350-9 SK485-9
VH894101290A S8941-01290 J05E J08E engine Speed Sensor for SK200-8 SK210-8 SK350-8 SK350-9 SK485-9 VH894101290A S8941-01290 J05E J08E engine Speed Sensor for SK200-8 SK210-8 SK350-8 SK350-9 SK485-9 VH894101290A S8941-01290 J05E J08E engine Speed Sensor for SK200-8 SK210-8 SK350-8 SK350-9 SK485-9



Item 16 in the engine parts list

The engine parts list shows VH894101290A as item 16, sensor assy, one per engine. The O-ring at item 15 is listed directly below it and is worth replacing whenever the sensor is removed.

The same sheet covers the alternator, starter motor, thermostat and belt items, which is why this sensor is often ordered as part of a larger engine service. Confirm the number on the old sensor before ordering.

Part numbers on the same engine parts list

These callouts appear on the engine sheet that contains the speed sensor. The highlighted line is item 16.

RefPart numberDescription
16VH894101290ASpeed sensor assy
15VH985119116AO-ring
14VH834601510ALevel warning switch assy
13YN30T01002P1Fuel filter element
12YN30T01001P1Engine oil filter element
11VH156601090AOil drain plug assy
10VH040166104AThermostat kit
9VH270402192AAlternator assy
8VH281002894AStarter motor assy
7VH900149375AV-belt set
6YN20M01494D1Air conditioner belt
5YN05P01495P1Hose
4YN05P01439P1Hose
3YN05P01494P1Radiator hose
2YN05P01479P1Radiator hose

The sensor is listed under VH894101290A, S8941-01290 and VHS894101290. Match whichever number is on the old part and check the plug shape before ordering.

Engine speed signal on J05E and J08E

This speed sensor supplies the engine speed signal used by the controller on Kobelco machines fitted with Hino J05E and J08E engines. It is listed under three numbers: VH894101290A, S8941-01290 and VHS894101290.

When to suspect the speed sensor

Look at the whole symptom before ordering: hard starting, unstable idle, an engine speed reading that does not match the sound of the engine, or a fault that appears and clears with vibration.

Inspect the sensor connector, the wiring run and the mounting face for damage or looseness first, since those produce the same symptoms as a failed sensor.

Cross-reference and fitment

Match the number on the old sensor against any of the three listings above. These sensors are listed for SK200-8, SK210-8, SK350-8, SK350-9 and SK485-9 with J05E or J08E engines. Send the engine model, machine serial number and a photo of the sensor marking so the connector type can be confirmed.

Common questions

Are the three numbers the same sensor? They are all listed for this speed sensor application. Confirm against the marking on your old part and the plug shape before ordering.

Troubleshooting reading: how error code G033 is diagnosed on an 8-series excavator.

Check the speed sensor number against your engine
