Overview

Excavator G033 fault code directly indicates engine speed sensor abnormality, which will cause serious faults such as reduced engine power, slow overall machine operation and unstable work. This guide details the step-by-step troubleshooting methods for the G033 alarm, including resistance measurement, wiring inspection and correct installation position of the speed sensor (standard resistance value 1.6-2kΩ). We supply high-quality excavator speed sensors for direct replacement, completely solving the G033 alarm fault.

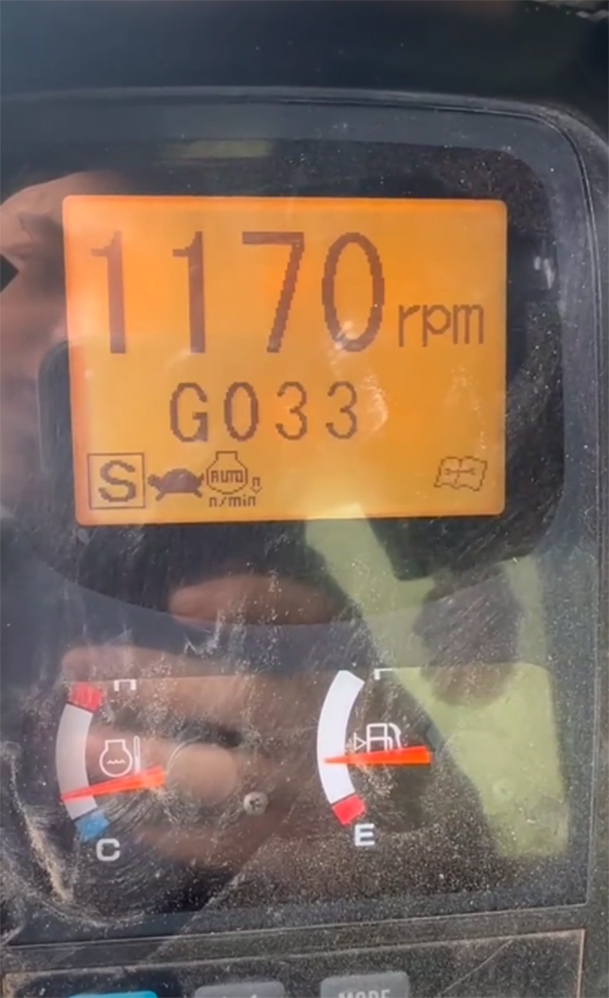

Image: Excavator Dashboard G033 Fault Code Display

1. G033 Alarm Fault Phenomenon & Corresponding Parts

Once the G033 alarm appears on the excavator dashboard, the fault is highly targeted, and the core inspection part is the engine speed sensor and its associated components.

Typical Fault Phenomenon

• Engine power drops significantly, insufficient power for operation

• Overall machine operation speed slows down, low work efficiency

• Unstable engine speed, abnormal idle speed

• G033 fault code is always displayed and cannot be eliminated temporarily




Core Inspection Part

The engine speed sensor installed under the engine flywheel (the only core part corresponding to the G033 alarm).

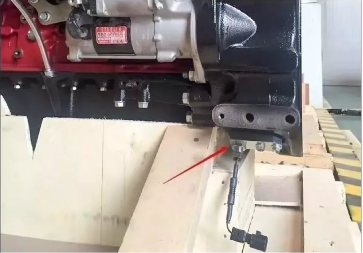

Image: Excavator Engine Speed Sensor Installation Position (Under Flywheel)

2. Step-by-Step Troubleshooting for G033 Alarm

Follow the from simple to complex inspection logic: resistance measurement → wiring check → installation position verification, which can quickly locate the fault and avoid blind disassembly and repair.

Step 1: Measure the Resistance of the Speed Sensor (Key Step)

Use a multimeter to measure the resistance of the engine speed sensor, and judge the quality of the sensor itself by the standard resistance value—this is the fastest way to eliminate sensor faults.

• Standard resistance value: 1.6 – 2 kΩ (1600 – 2000 ohms)

• If the resistance is higher/lower than the standard value → the sensor is damaged and needs to be replaced immediately

• If the resistance is within the standard range → the sensor body is normal, and the fault is in the wiring or installation position

• If the resistance value is outside the acceptable range, the sensor is faulty and needs to be replaced.


Step 2: Check the Speed Sensor Wiring & Speed Limit Plug

When the sensor resistance is normal, the next step is to check the wiring connection to eliminate the fault of poor contact or disconnection.

• Check the connecting wire of the speed sensor for breakage, peeling, oxidation and poor contact of pins

• Inspect the front speed limit plug for loose connection, disconnection or poor contact

• Check the wiring harness for aging, hardening and internal disconnection (hidden fault)

Step 3: Verify the Correct Installation Position of the Speed Sensor

Incorrect installation position is a common non-damage fault of the speed sensor, which will directly cause the G033 alarm even if the sensor and wiring are normal.

✅ Correct Installation Method

• First, make the magnetic element at the front end of the sensor contact the gear ring of the flywheel

• Then turn the sensor back 1 to 1.5 circles and fix it tightly

❌ Incorrect Installation Hazard

If the installation distance is too close (the magnetic element is in direct contact with the gear ring and not rotated back), the magnetic field generated by the magnetic element will be disturbed, the sensor cannot collect the speed signal normally, and the G033 alarm will be triggered immediately.
