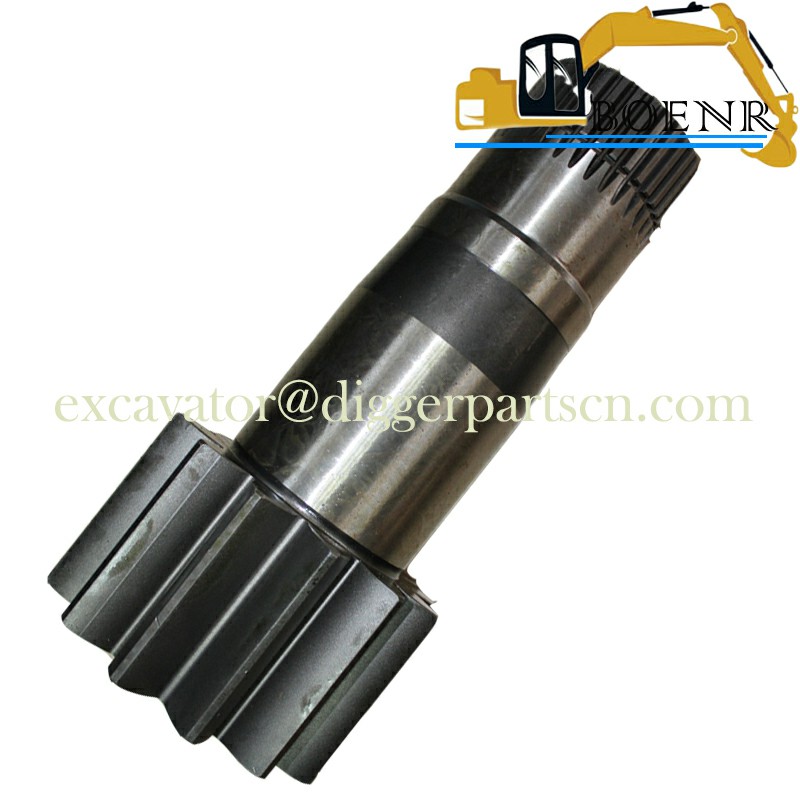

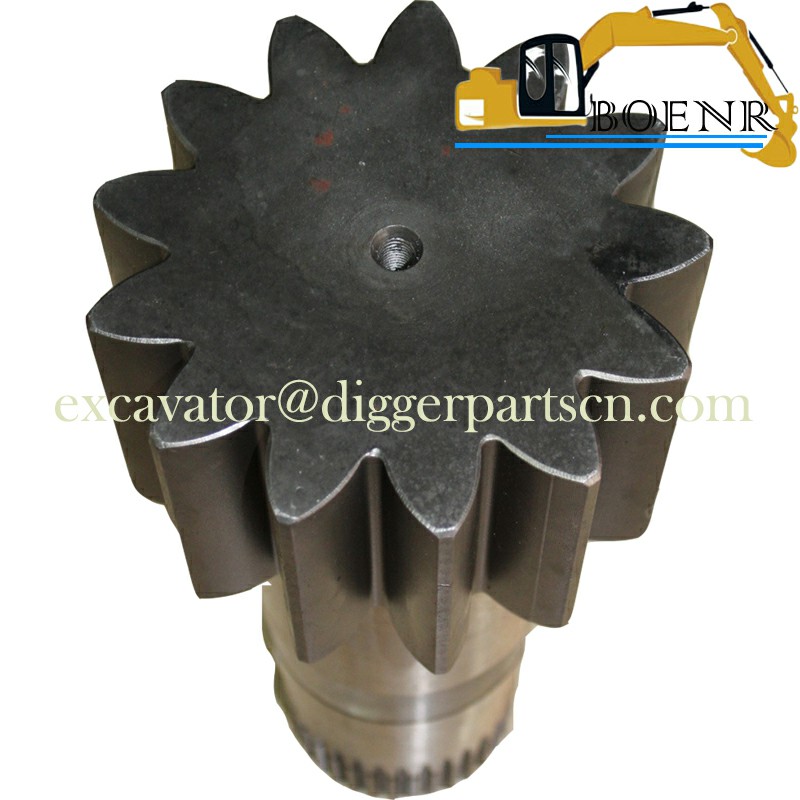

YN32W01125P1 Swing shaft for SK200-8 SK210-8 SK210-9 SK200-10 SK210-10
SK200-8 SK210-8 SK210-9 SK200-10 SK210-10 Swing shaft YN32W01125P1
| Part Name | Swing shaft | Part Number | YN32W01125P1 |
| Brand | Kobelco , Kobeki | Applicable Model | SK200-8 SK210-8 SK210-9 SK200-10 SK210-10 |
Weight: 26KG

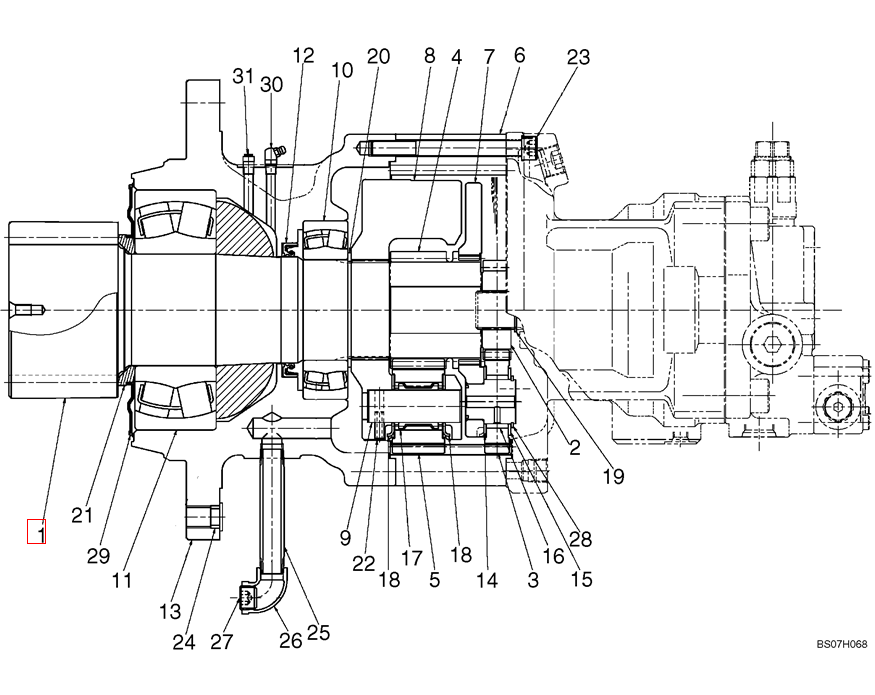

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 31 | 1 | ZE82T02000 | PLUG 1/8"PT |
| 30 | 1 | ZG91V02000 | LUBE NIPPLE 67°x1/8" PT |
| 29 | 1 | YN32W01081P1 | GASKET |
| 28 | 3 | ZR16X04000 | RING Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 27 | 1 | ZE82T08000 | PLUG 1/2" PT |
| 26 | 1 | ZG31U08000 | HYD CONNECTOR Elbow, 90° -- 1/2" PT |
| 25 | 1 | YN32W01080D5 | RIGID TUBE 1/2" PT x 112mm Long |
| 24 | 2 | PV02B01073DB | CAP 18.4mm Plastic |
| 23 | 11 | ZS23C14130 | SCREW M14x2.0x135mm |
| 22 | 4 | ZP26D08025 | PIN Roll -- OD 08 x 25mm Long |
| 21 | 1 | YN32W01133P1 | SLEEVE |
| 20 | 1 | ZR16X09000 | RING Retaining -- ID 84.50 x OD 108 x 3.0mm |
| 19 | 1 | ZR16X03500 | RING Retaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 18 | 8 | YN32W01063P1 | WASHER |
| 17 | 4 | YN32W01072P1 | NEEDLE BEARING |
| 16 | 102 | YN32W01022P1 | ROLLER |
| 15 | 3 | YN32W01028P1 | THRUST WASHER |
| 14 | 3 | YN32W01026P1 | THRUST WASHER |
| 13 | 1 | YN32W01132P1 | BOX |
| 12 | 1 | YN32W01060P1 | GASKET |
| 11 | 1 | YN32W01029P1 | SPHERICAL BEARING |
| 10 | 1 | YN32W01030P1 | SPHERICAL BEARING |
| 9 | 4 | YN32W01131P1 | SHAFT |
| 8 | 1 | YN32W01130P1 | PLANET CARRIER |
| 7-2 | 3 | NSS | NOT SERVICED SEPARATELY Shaft |
| 7-1 | 1 | NSS | NOT SERVICED SEPARATELY Spider |
| 7 | 1 | YN32W01123F1 | SPIDER Gear, Inludes, Refs. 7-1 & 7-2 |
| 6 | 1 | YN32W01127P1 | GEAR Ring |
| 5 | 4 | YN32W01143P1 | GEAR |
| 4 | 1 | YN32W01126P1 | GEAR |
| 3 | 3 | YN32W01135P1 | GEAR Pinton |
| 2 | 1 | YN32W01136P1 | GEAR |
| 1 | 1 | YN32W01125P1 | GEAR Shaft |
| Swing Reduction Assembly YN32W00025F1 |
