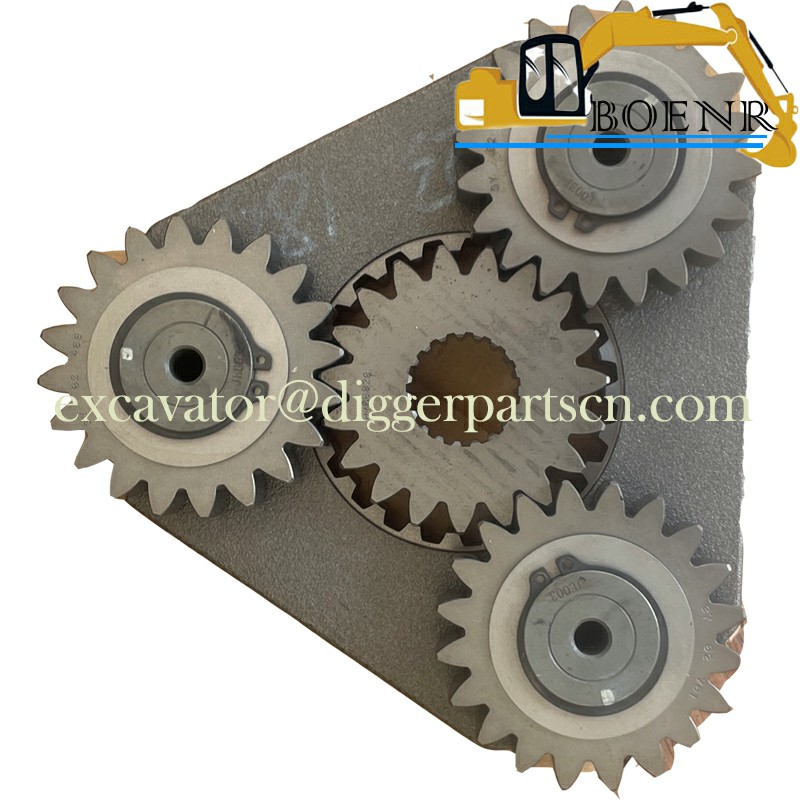

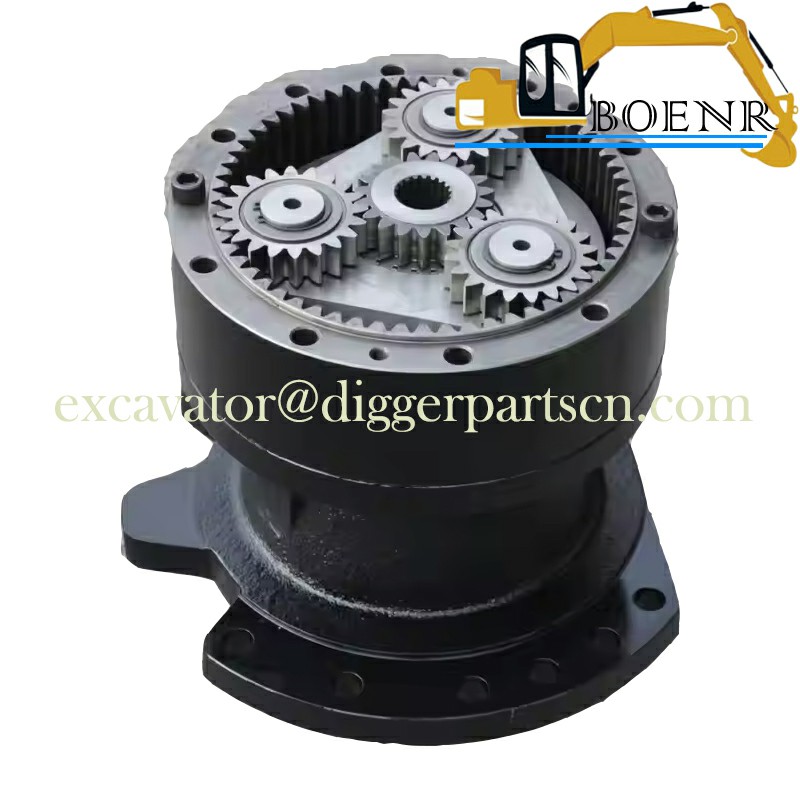

YN32W00025F1 Swing Gearbox For SK200-8 SK210-8 SK200-10 SK210-10
SK200-8 SK210-8 SK200-10 SK210-10 Swing Gearbox YN32W00025F1
| Part Name | Swing Gearbox | Part Number | YN32W00025F1 |
| Brand | Kobelco、Kobeki | Applicable Model | SK200-8 SK210-8 SK200-10 SK210-10 |
Weight: 165KG

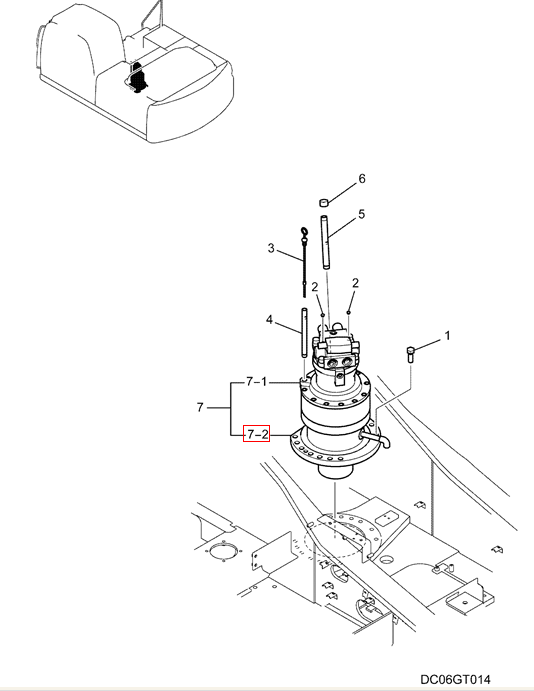

Image: Component Installation Diagram
| ITEM | QTY | PART NO | PART NAME |
| 7-2 | 1 | YN32W00025F1 | GEAR REDUCTION UNIT Swing Gear Reduction Unit |
| 7-1 | 1 | YN15V00055F1 | HYDRAULIC MOTOR Assembly |
| 7 | 1 | YN15V00054F1 | HYDRAULIC MOTOR Swing Hydraulic Motor Assembly |
| 6 | 1 | ZE91T12000 | PLUG Cap, 3/4" PT |
| 5 | 1 | YN32W01122D1 | RIGID TUBE |
| 4 | 1 | YN32W01114D4 | RIGID TUBE 262mm Long (10-5/16 in) |
| 3 | 1 | YN32W01101D1 | LEVEL GAUGE 385.5mm Long (15-11/64 in) |
| 2 | 2 | YN64H01391D1 | CAP 10.0mm Slotted Plastic |
| 1 | 13 | ZS13C20055 | SCREW Screw -- M20x2.50x55mm |
| Swing Motor Install YN32W00024F1 |
