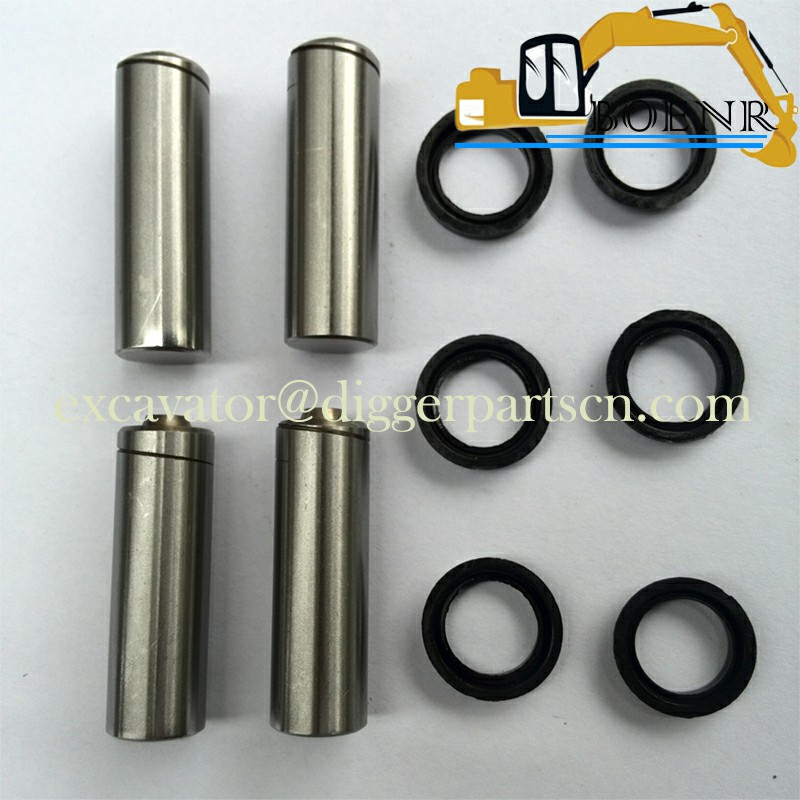

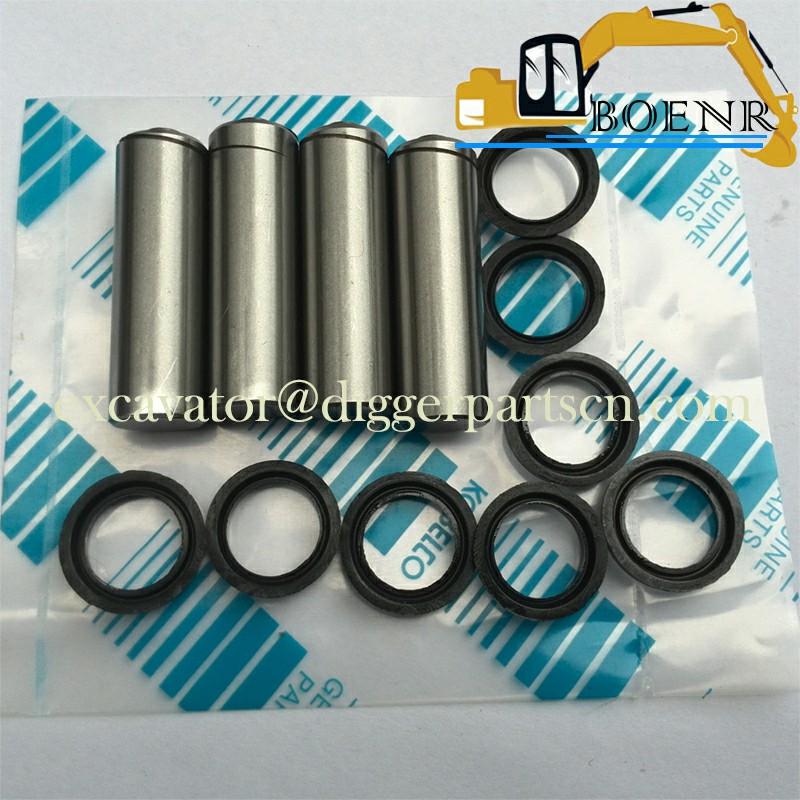

YN30V00105R150 propel pilot valve repair kit for SK140SR SK200-8 SK210-8 SK215SR SK235SR SK260-9
SK140SR SK200-8 SK210-8 SK215SR SK235SR SK260-9 SK295-8 SK350-8 SK485-8 propel pilot valve repair kit YN30V00105R150
| Part Name | pilot valve repair kit | Part Number | YN30V00105R150 |
| Brand | Kobelco、Kobeki | Applicable Model | SK140SR SK200-8 SK210-8 SK215SR SK235SR SK260-9 SK295-8 SK350-8 SK485-8 |
Weight:0.6KG

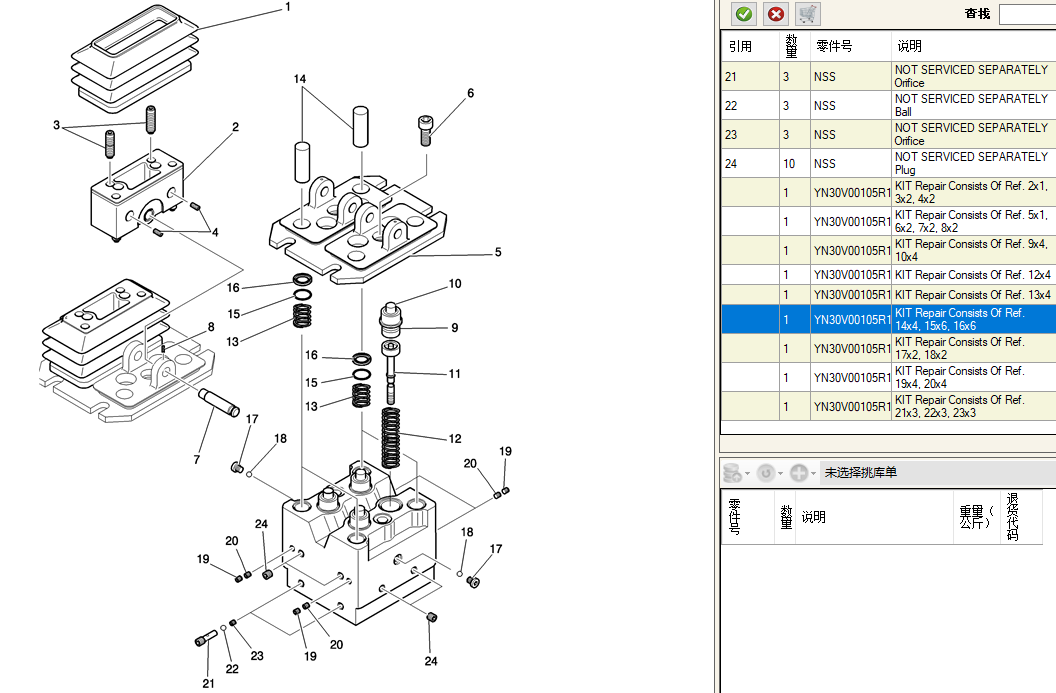

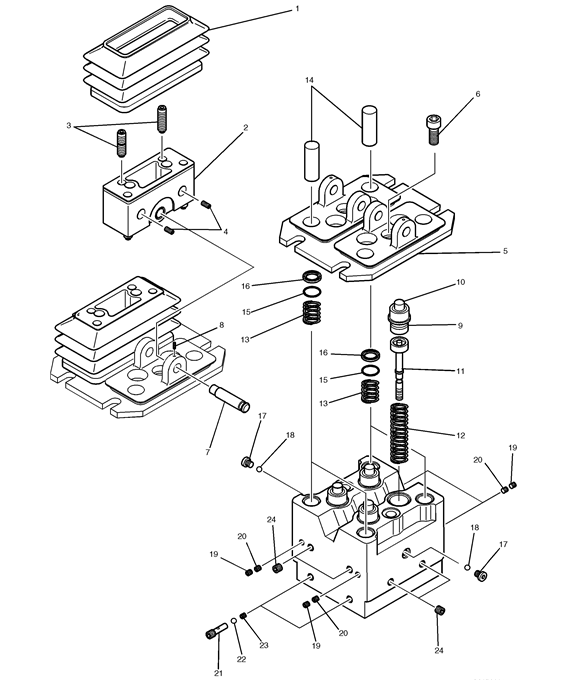

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| K | 1 | YN30V00105R180 | KIT Repair Contains Items 21 - 23 |
| K | 1 | YN30V00105R170 | KIT Repair Contains Items 19 & 20 |
| K | 1 | YN30V00105R160 | KIT Repair Contains Items 17 & 18 |
| K | 1 | YN30V00105R150 | KIT Repair Contains Items 14 - 16 |
| K | 1 | YN30V00105R140 | KIT Repair Contains Items 13 |
| K | 1 | YN30V00105R130 | KIT Repair Contains Items 12 |
| K | 1 | YN30V00105R120 | KIT Repair Contains Items 9 & 10 |
| K | 1 | YN30V00105R110 | KIT Repair Contains Items 5 - 8 |
| K | 1 | YN30V00105R100 | KIT Repair Contains Items 2 - 4 |
| 24 | 10 | NA | NOT SERVICED Plug |
| 23 | 3 | NA | NOT SERVICED Orifice |
| 22 | 3 | NA | NOT SERVICED Ball |
| 21 | 3 | NA | NOT SERVICED Orifice |
| 20 | 4 | NA | NOT SERVICED Orifice |
| 19 | 4 | NA | NOT SERVICED Plug |
| 18 | 2 | NA | NOT SERVICED Ball |
| 17 | 2 | NA | NOT SERVICED Plug |
| 16 | 6 | NA | NOT SERVICED Seal |
| 15 | 6 | NA | NOT SERVICED Seal |
| 14 | 4 | NA | NOT SERVICED Rod |
| 13 | 4 | NA | NOT SERVICED Spring |
| 12 | 4 | NA | NOT SERVICED Spring |
| 11 | 4 | YN30V00105S010 | ROD Spool |
| 10 | 4 | NA | NOT SERVICED Rod, Push |
| 9 | 4 | NA | NOT SERVICED Plug |
| 8 | 2 | NA | NOT SERVICED Capscrew |
| 7 | 2 | NA | NOT SERVICED Pin |
| 6 | 2 | NA | NOT SERVICED Capscrew |
| 5 | 1 | NA | NOT SERVICED Plate |
| 4 | 2 | NA | NOT SERVICED Capscrew |
| 3 | 2 | NA | NOT SERVICED Capscrew |
| 2 | 1 | NA | NOT SERVICED Plate |
| 1 | 2 | YN30V00105S005 | COVER |
| YN30V00105F1 | VALVE Pilot, Propelling |
