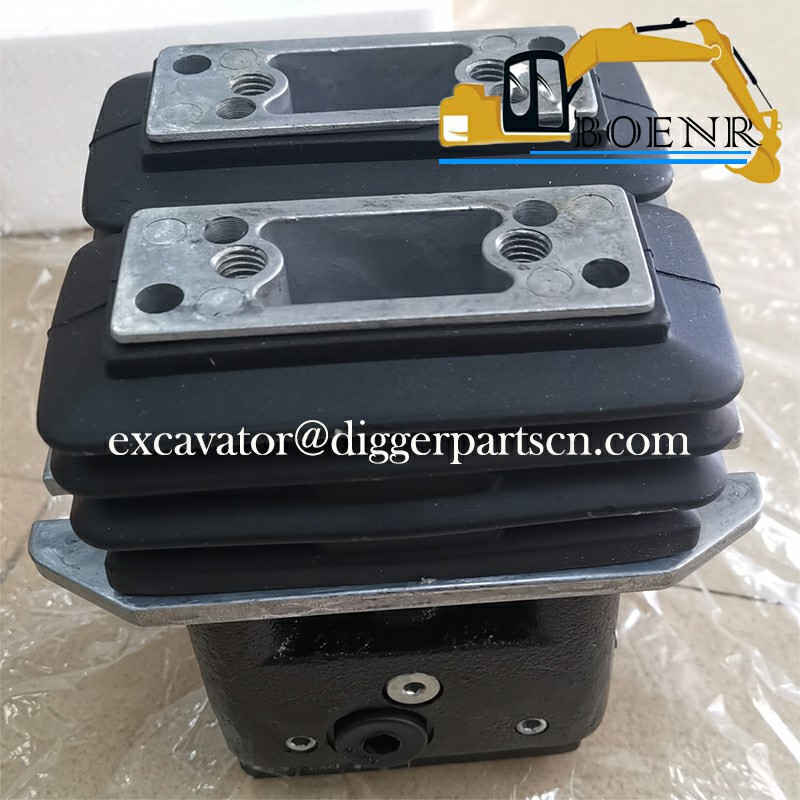

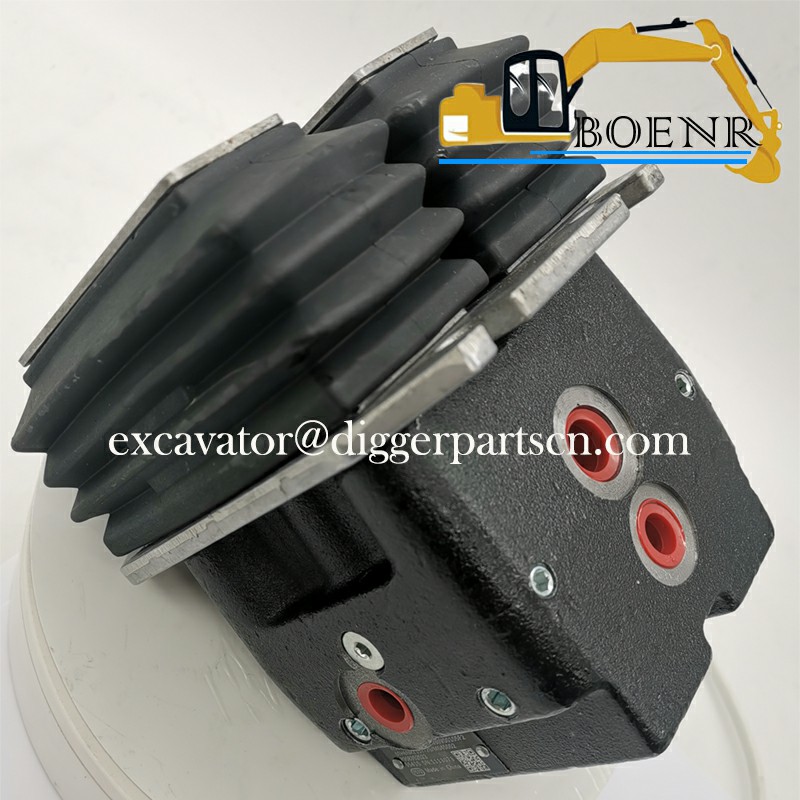

YN30V00105F1 YN30V00105F2 Foot Pedal Valve for SK200-8 SK210-8 SK250-8 SK260-9 SK485-8 SK485LC-9

SK200-8 SK210-8 SK250-8 SK260-9 SK485-8 SK485LC-9 SK215SR SK235SR Foot Pedal Valve YN30V00105F1 YN30V00105F2

Part Name	Foot Pedal Valve	Part Number	YN30V00105F1 YN30V00105F2
Brand	Kobelco、KPM、KOBEKI	Applicable Model	SK200-8 SK210-8 SK250-8 SK260-9 SK485-8 SK485LC-9 SK850 SK350-8 SK250-8 SK260-8 SK380-8

Weight: 8.5KG

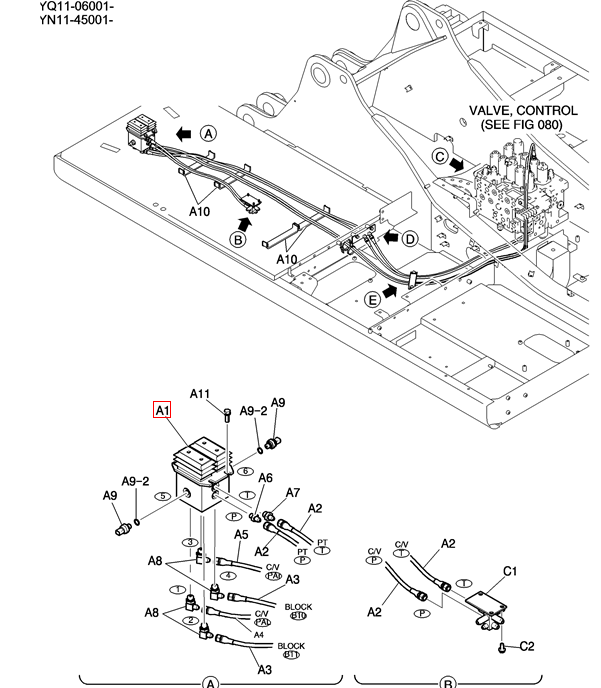

Parts Catalog

ITEM	QTY	PART NUMBER	PART NAME
C2	3	ZM73C08020	BOLT Sems
C1	1	YN64H01336P1	BLOCK
	AR	YN64H00183F1	Control, Block
B7	2	ZM73C10020	BOLT Sems
B6	1	YN64H01288P1	CLAMP
B4	2	HM83C10030G1	BOLT Sems
B3	1	2420R349D120	HOSE 1200.00 mm
B2	1	2420R349D110	HOSE 1100.00 mm
B1	1	YN64H01291P1	BLOCK
	AR	YN64H00185F1	Control, Block
A13	1	PY01P01043D8	CLIP
A12	1	YN13E01375P1	CLIP
A11	4	HM83C10030G1	BOLT Sems
A10	4	YN62H01015P1	RUBBER BAND
A9-2	1	ZD12P01100	O-RING
	2	LC52S00019P1	SENSOR Press (L.P) Incls. O-Ring ZD12P01100, ASN YN11-46330
	2	LC52S00019P1	SENSOR Press (L.P) Incls. O-Ring ZD12P01100, ASN YQ11-06106
A9	2	YX52S00013P1	SENSOR Press (L.P) , BTW YN11-45001 & YN11-46329
A9	2	YX52S00013P1	SENSOR Press (L.P), BTW YQ11-06001 & YQ11-06105
A8	4	ZH32X04006	ELBOW
A7	1	ZH22X04006	HYD CONNECTOR
A6	1	HH25X04004G2	HYD CONNECTOR
A5	1	2420R349D360	HOSE 3600.00 mm
A4	1	2420R349D345	HOSE
A3	2	2420R349D155	HOSE 1550.00 mm
A2	2	2420R349D085	HOSE 850.00 mm
A1	1	YN30V00105F1	VALVE Assy, Pilot , See (C.P.M)
	AR	YN62H00026F1	Control, Propel
