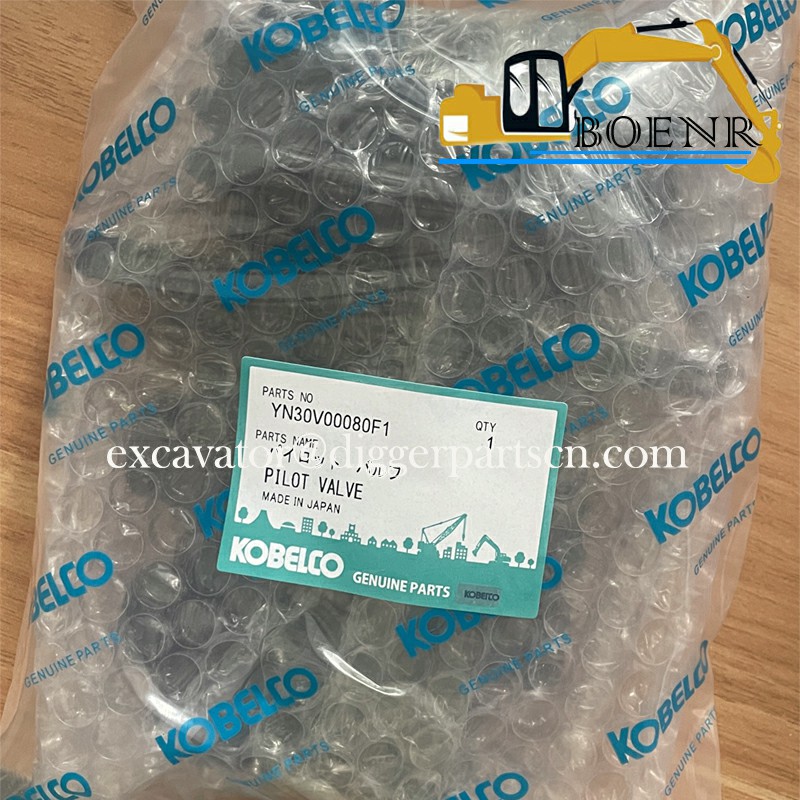

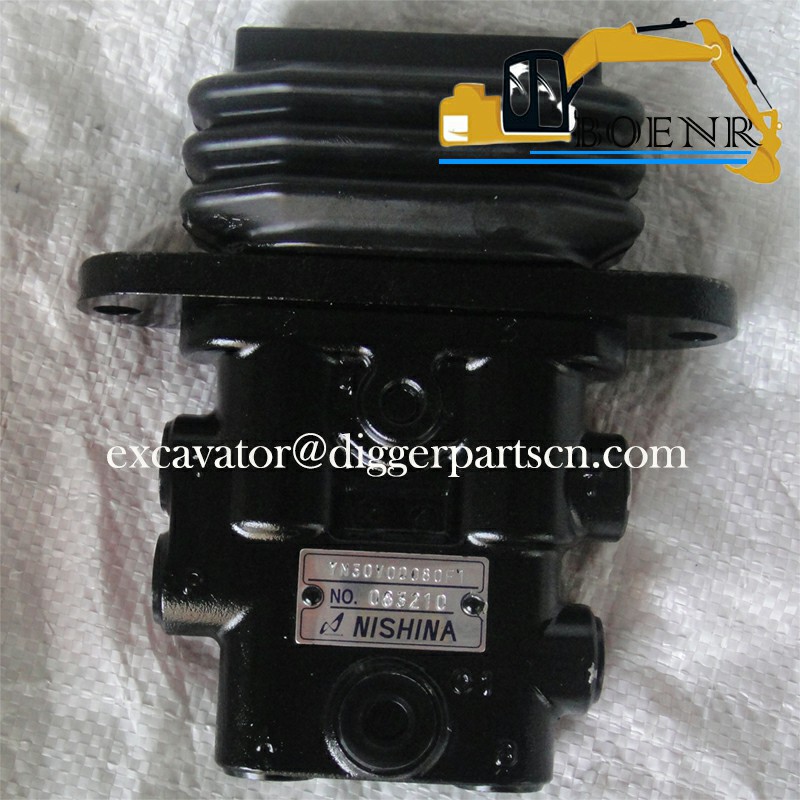

Yn30v00080f1 YN30V00080F2 Pilot Valve For kobelco SK200-8 SK210-8 SK210LC-6E SK215SR SK235SR SK350-8
SK200-8 SK210-8 SK210LC-6E SK215SR SK235SR SK350-8 SK350-9 SK295-8 SK295-9 SK485-8 SK485-9 Pilot Valve Yn30v00080f1 YN30V00080F2
| Part Name | Pilot Valve | Part Number | Yn30v00080f1 YN30V00080F2 |
| Brand | Kobelco、KOBEKI | Applicable Model | SK200-8 SK210-8 SK210LC-6E SK215SR SK235SR SK350-8 SK350-9 SK295-8 SK295-9 SK485-8 SK485-9 |
Weight: 1.6KG

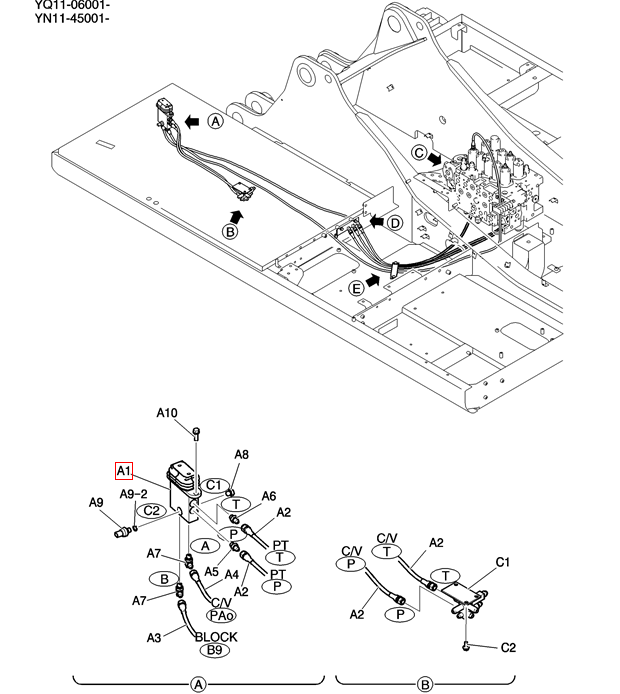

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| C2 | 3 | ZM73C08020 | BOLT Sems |
| C1 | 1 | YN64H01337P1 | BLOCK |
| B8 | AR | LC64H00090F1 | CONTROL Control |
| B7 | 2 | ZM73C10020 | BOLT Sems |
| B6 | 1 | YN64H01288P1 | CLAMP |
| B5 | 2 | HM83C10030G1 | BOLT Sems |
| B4 | 1 | ZH42X04006 | ELBOW |
| B3 | 1 | 2420R349D120 | HOSE 1200.00 mm |
| B2 | 2 | 2420R349D110 | HOSE 1100.00 mm |
| B1 | 1 | YN64H01292P1 | BLOCK |
| AR | YN64H00225F1 | CONTROL BLOCK Lines | |
| A11 | 1 | ZH22X04006 | HYD CONNECTOR |
| A10 | 2 | HM83C10030G1 | BOLT Sems |
| A9-2 | 1 | ZD12P01100 | O-RING |
| 1 | LC52S00019P1 | SENSOR Press (L.P) Incls. O-Ring ZD12P01100, ASN YN11-46330 | |
| 1 | LC52S00019P1 | SENSOR Press (L.P) Incls. O-Ring ZD12P01100, ASN YQ11-06106 | |
| A9 | 1 | YX52S00013P1 | SENSOR Press (L.P) , BTW YN11-45001 & YN11-46329 |
| A9 | 1 | YX52S00013P1 | SENSOR Press (L.P) , BTW YQ11-06001 & YQ11-06105 |
| A8 | 1 | ZE72X04000 | PLUG |
| A7 | 2 | ZH32X04000 | HYD CONNECTOR Elbow |
| A6 | 1 | ZH22X04000 | HYD CONNECTOR |
| A5 | 1 | HH25X04004G2 | HYD CONNECTOR |
| A4 | 1 | 2420R349D365 | HOSE ASSY. |
| A3 | 1 | 2420R349D160 | HOSE 1600.00 mm |
| A2 | 2 | 2420R349D090 | HOSE 900.00 mm |
| A1 | 1 | YN30V00080F1 | VALVE Assy, Pilot , See (C.P.M) |
| AR | YN68H00135F1 | REMOTE CONTROL Control Lines, Remote |
