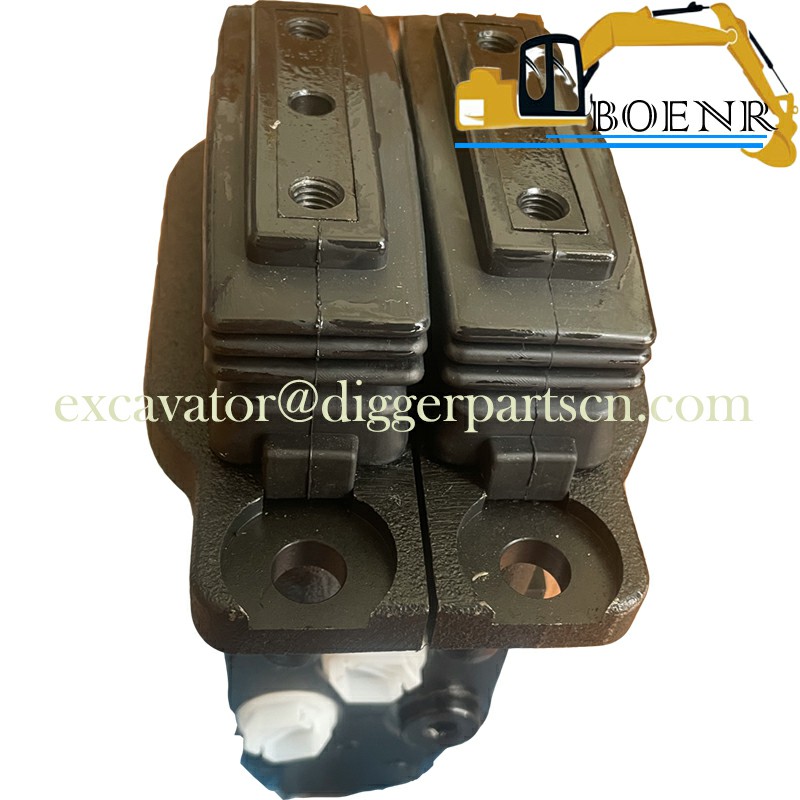

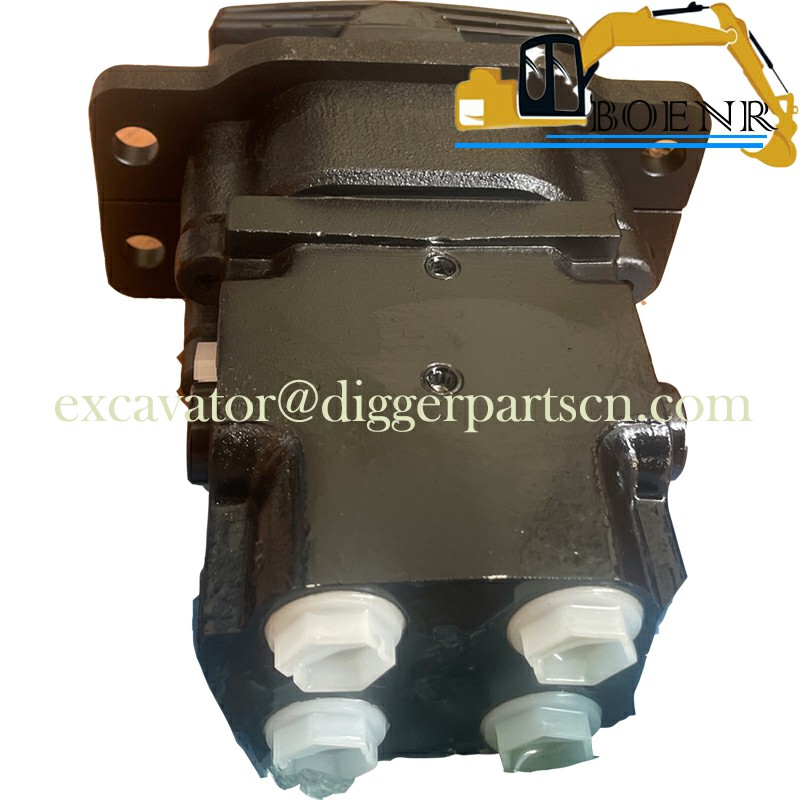

PM30V00019F1 Pilot Valve For SK27SR-3 SK30SR-2 SK30SR-3 SK35SR-2 SK35SR-3 SK50SR-3 SK25SR-2 SK40SR-2
SK27SR-3 SK30SR-2 SK30SR-3 SK35SR-2 SK35SR-3 SK50SR-3 SK25SR-2 SK40SR-2 SK45SR-2 Pilot Valve PM30V00019F1
| Part Name | Pilot Valve | Part Number | PM30V00019F1 |
| Brand | Kobelco Kobeki | Applicable Model | SK27SR-3 SK30SR-2 SK30SR-3 SK35SR-2 SK35SR-3 SK50SR-3 SK25SR-2 SK40SR-2 SK45SR-2 |
Weight: 5.3 kg

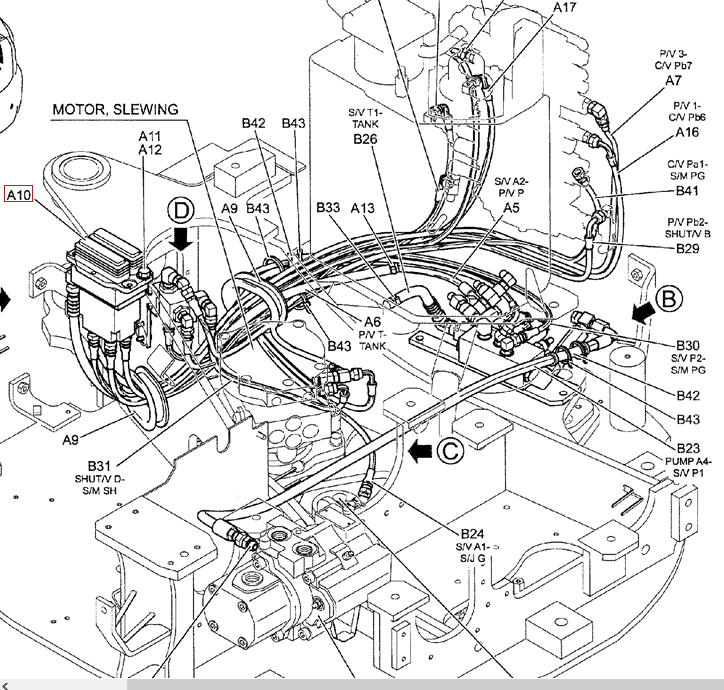

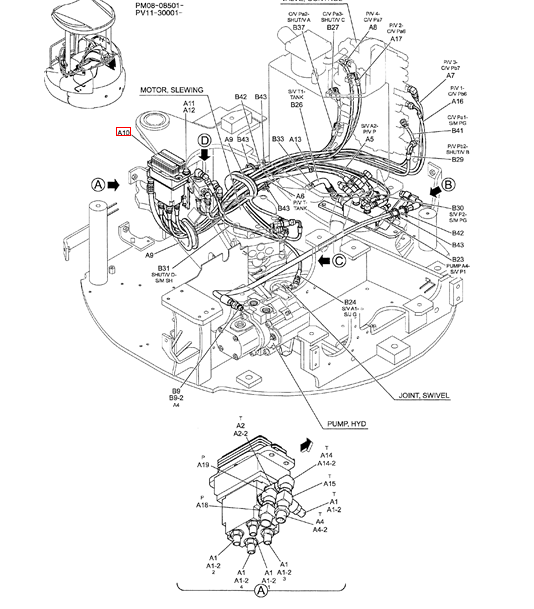

Parts Catalog
| ITEM | QTY | PART NO | PART NAME |
| B43 | 6 | PY01P01043D6 | CLIP Wire Ties -- 368mm Long |
| B42 | 2 | 2420Z2185 | GROMMET |
| B41 | 1 | HX23L03105DX | HOSE |
| B37 | 1 | HX33L03076DX | HOSE ASSY. |
| B33 | 1 | ZC16X01800 | CLIP Clamp, Hose -- Min 12 x Max 22mm |
| B31 | 1 | HX33L03046DX | HOSE ASSY. |
| B30 | 1 | HX33L03120DX | HOSE |
| B29 | 1 | HX33L03110DX | HOSE |
| B27 | 1 | HX33L03088DX | HOSE |
| B26 | 1 | PW68H01023D6 | HOSE |
| B24 | 1 | HX33L03115DX | HOSE |
| B23 | 1 | HX35L06120DY | HOSE |
| B9-2 | 1 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| B9 | 1 | HH25S06006G1 | HYD CONNECTOR (Incls. O-Ring ZD12P01400) |
| Control Lines, Valve, PM64H00048F1, Includes Ref. B9 - B43 | |||
| A19 | 1 | PH62H01003P1 | ELBOW 90° -- (Incls. O-Ring ZD12P01100) |
| A18 | 1 | HH55L04004G1 | TEE |
| A17 | 1 | HX33L03110DX | HOSE |
| A16 | 1 | HX33L03135DX | HOSE |
| A15 | 1 | HH55Q04004G1 | TEE 1/4" PF (Incls. O-Ring ZD12P01100) |
| A14-2 | 1 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| A14 | 1 | 2444Z2894 | HYD CONNECTOR Elbow, 90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| A13 | 1 | ZC16X01800 | CLIP Clamp, Hose -- Min 12 x Max 22mm |
| A12 | 4 | ZW16H08000 | WASHER ID 08 x OD 18 x Th 3.2mm |
| A11 | 4 | ZS18C08025 | SCREW M08x1.25x25mm |
| A10 | 1 | PM30V00019F1 | PILOT VALVE , See C.P.M. |
| A9 | 2 | PW62H01001P1 | GROMMET |
| A8 | 1 | HX33L03120DX | HOSE |
| A7 | 1 | HX23L03140DX | HOSE |
| A6 | 1 | PW68H01023DB | HOSE |
| A5 | 1 | HX34L04105DX | HYDRAULIC HOSE |
| A4-2 | 1 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| A4 | 1 | HH25S06004G1 | HYD CONNECTOR |
| A2-2 | 1 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| A2 | 1 | 2444Z2525 | HYD CONNECTOR 1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) |
| A1-2 | 5 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| A1 | 5 | HH25S04004G1 | HYD CONNECTOR 1/4"PFx1/4"PFx34mm Long (Incls. O-Ring ZD12P01100) |
