LS22V00003F1 LS22V00002F1 LS22V00009F1 Relief Valve For SK485-8 SK485-9 SK480-6E
SK485-8 SK485-9 SK480-6E Relief Valve LS22V00003F1 LS22V00002F1 LS22V00009F1
| Part Name | Relief Valve | Part Number | LS22V00003F1 LS22V00002F1 LS22V00009F1 |
| Brand | Kobelco、Kobeki | Applicable Model | SK485-8 SK485-9 SK480-6E |
Weight:5KG

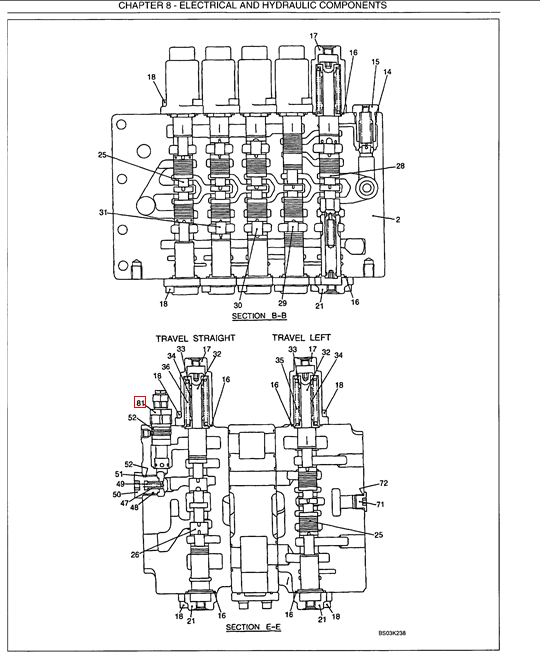

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 1 | LS30V00002R260 | SPOOL REPAIR KIT - Includes Ref 31, 32 - 35 | |
| 1 | LS30V00002R250 | SPOOL REPAIR KIT - Includes Ref 30, 32 - 35 | |
| 1 | LS30V00002R240 | SPOOL REPAIR KIT - Includes Ref 29, 32 - 35 | |
| 1 | LS30V00002R230 | SPOOL REPAIR KIT - Includes Ref 28, 32 - 35, 39 - 43, 45 | |
| 1 | LS30V00002R140 | SPOOL Includes Ref 26, 32 - 36 | |
| 1 | LS30V00002R220 | SPOOL REPAIR KIT - Includes Ref 25, 32 - 35 | |
| 81 | 1 | LS22V00003F1 | VALVE MAIN |
| 72 | 1 | ZD12P02240 | O-RING ID 22.10 ± 0.24 x OD 28.4mm |
| 71 | 1 | 2436U2716S12 | CAP COVER |
| 52 | 2 | ZD12P03100 | O-RING ID 30.70 ± 0.30 x OD 37mm |
| 51 | 1 | ZD85P03100 | BACK-UP RING ID 31 x OD 37 x Th 1.25mm |
| 50 | 1 | LS30V00002S050 | CAP |
| 49 | 1 | 2441U962S46 | SPRING |
| 48 | 1 | 2441U455S69 | SEAL BALL |
| 47 | 1 | LS30V00002S047 | CHECK VALVE |
| 36 | 1 | LS30V00002S036 | SPRING |
| 35 | 1 | LS30V00002S141 | SPRING |
| 34 | 2 | LS30V00002S034 | SLEEVE |
| 33 | 2 | LS30V00002S033 | SPRING SEAT GUIDE |
| 32 | 2 | LS30V00002S032 | BOLT CAP |
| 31 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 30 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 29 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 28 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 26 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 25 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 21 | 5 | LS30V00002S021 | GUARD COVER |
| 18 | 20 | ZS23C12030 | SCREW M12x1.75x30mm |
| 17 | 5 | LS30V00002S017 | GUARD COVER |
| 16 | 10 | LS30V00002S016 | O-RING |
| 15 | 1 | LS22V00004F1 | CHECK VALVE |
| 14 | 1 | ZD12P03600 | GASKET O-Ring -- ID 35.70 ± 0.34 x OD 42mm |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY HOUSING |
| LS30V00002F3 | VALVE |
