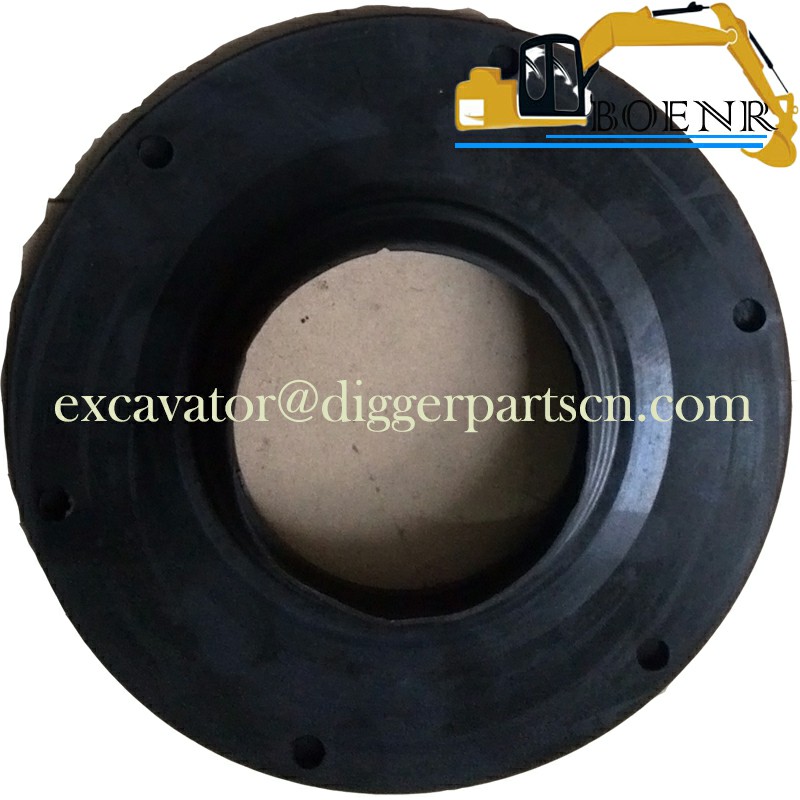

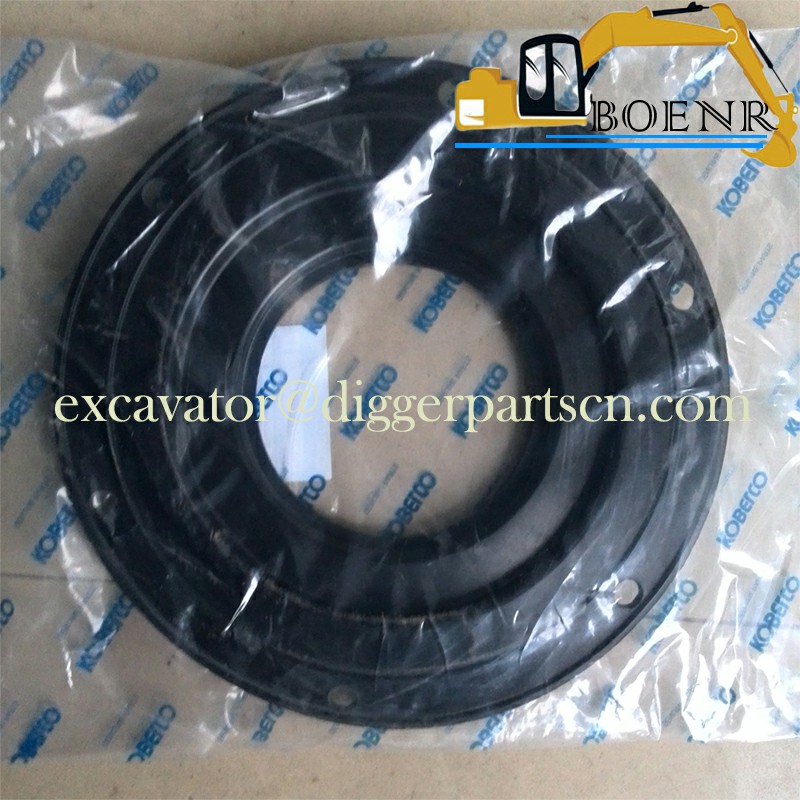

YN52F01857P1 Center Joint Swivel Seal For SK140SR SK200-8 SK210-8 SK210-9 SK215SR SK235SR SK260-9
SK140SR SK200-8 SK210-8 SK210-9 SK215SR SK235SR SK260-9 SK330-8 Sk350-8 SK380-8 Center Joint Swivel Seal YN52F01857P1
| Part Name | Seal | Part Number | YN52F01857P1 |
| Brand | Kobeki、Kobelco | Applicable Model | SK140SR SK200-8 SK210-8 SK210-9 SK215SR SK235SR SK260-9 SK330-8 Sk350-8 SK380-8 |
Weight:0.5KG

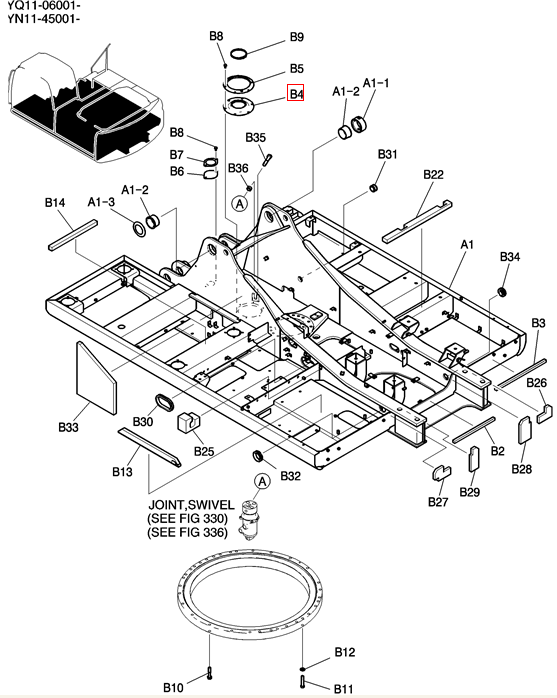

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| B36 | 1 | ZN18F24019 | NUT |
| B35 | 1 | ZS18F24130 | SCREW Cap |
| B34 | 1 | PH02H01108P1 | GROMMET |
| B33 | 1 | YN52F01959P1 | FOAM INSULATION |
| B32 | 1 | YN13E01363P1 | GROMMET |
| B31 | 1 | PH13E01071P1 | GROMMET |
| B30 | 1 | YN64H01286D1 | GROMMET |
| B29 | 1 | YN52F01975P1 | FOAM INSULATION |
| B28 | 1 | YN52F01952P1 | FOAM INSULATION |
| B27 | 1 | YN52F01974P1 | FOAM INSULATION |
| B26 | 1 | YN52F01950P1 | FOAM INSULATION |
| B25 | 1 | YN52F01965P1 | FOAM INSULATION |
| B22 | 1 | YN52F01738P1 | FOAM INSULATION |
| B14 | 1 | YN52F01737P1 | FOAM INSULATION |
| B13 | 1 | YN52F01966P2 | FOAM INSULATION |
| B12 | 1 | ZW13H20000 | WASHER |
| B11 | 1 | HS53C20105G1 | CAP |
| B10 | 32 | YN52F01100D3 | CAP |
| B9 | 1 | ZC16X12200 | CLIP |
| B8 | 8 | ZM73C10025 | BOLT Sems |
| B7 | 1 | 2416Z434 | PACKING Rubber |
| B6 | 1 | YN52F01159P1 | PLATE |
| B5 | 1 | YN52F01615P1 | PLATE |
| B4 | 1 | YN52F01857P1 | SEAL |
| B3 | 1 | YN52F01736P1 | FOAM INSULATION |
| B2 | 1 | YN52F01976P1 | FOAM INSULATION |
| AR | YN52F00307F1 | Frame Group, Upper | |
| A1-3 | 1 | 2414T2784 | COVER |
| A1-2 | 2 | YN52F01582P1 | BUSHING |
| A1-1 | 1 | YN52F01894P1 | BOSS |
| A1 | 1 | YN52F00305P1 | Frame, Upper |
| AR | YN52F00374F1 | FRAME Assy, Upper (hd) | |
| AR | YN52F00354F1 | Upper |
