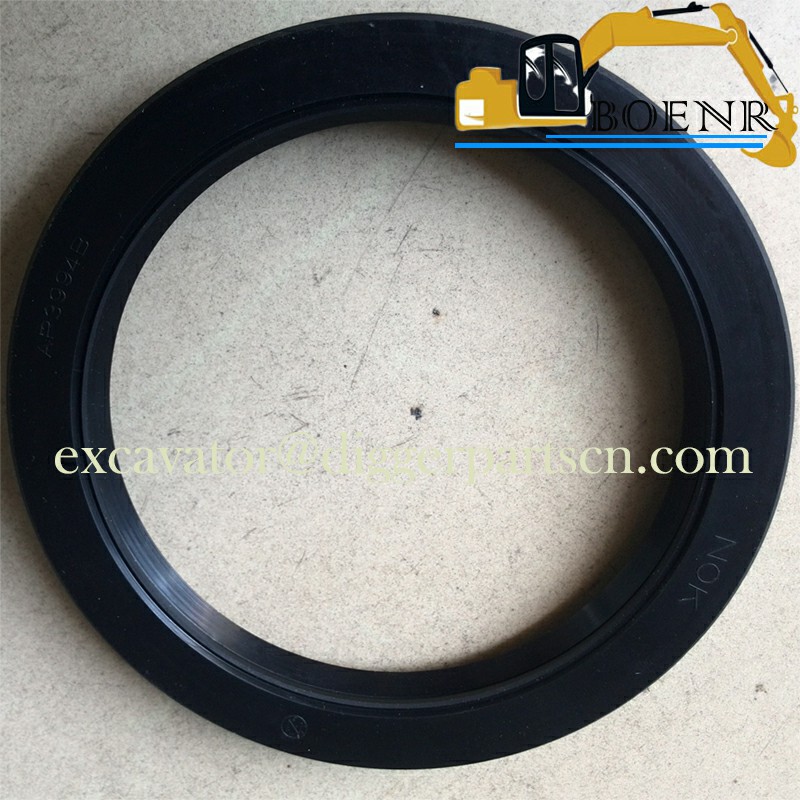

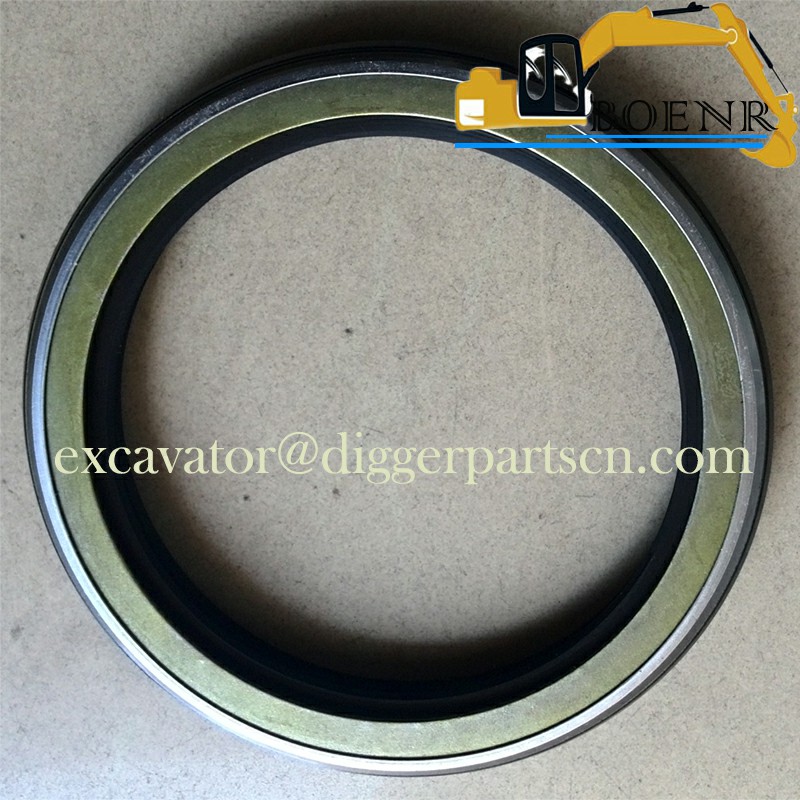

YN32W01060P1 swing reduction seal For SK200-8 SK170-8 SK210-8 SK210-9 SK235SR
SK200-8 SK170-8 SK210-8 SK210-9 SK235SR swing reduction seal YN32W01060P1
| Part Name | seal | Part Number | YN32W01060P1 |
| Brand | Kobelco, kobeki | Applicable Model | SK200-8 SK170-8 SK210-8 SK210-9 |
Weight: 0.2KG

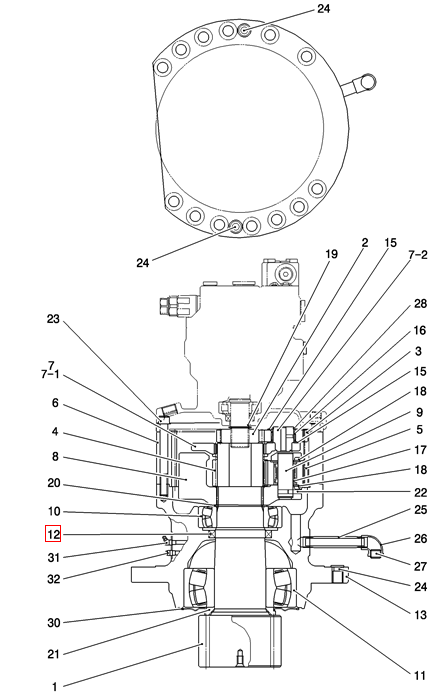

Parts Location Diagram
Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 32 | 1 | 2444Z3305 | BREATHER Valve, Relief |
| 31 | 1 | ZG91V02000 | LUBE NIPPLE Grease |
| 30 | 1 | YN32W01081P1 | GASKET Oil Seal |
| 28 | 3 | ZR16X04000 | RING Retaining |
| 27 | 1 | ZE82T08000 | PLUG |
| 26 | 1 | ZG31U08000 | HYD CONNECTOR Elbow |
| 25 | 1 | YN32W01080D1 | RIGID TUBE |
| 24 | 2 | PV02B01073D8 | CAP |
| 23 | 11 | HS23C14135G1 | SCREW Cap |
| 22 | 4 | ZP26D08025 | PIN Spring |
| 21 | 1 | YN32W01082P1 | SLEEVE |
| 20 | 1 | ZR16X09000 | RING Retaining |
| 19 | 1 | ZR16X03500 | RING Retaining |
| 18 | 8 | YN32W01063P1 | WASHER Thrust |
| 17 | 4 | YN32W01072P1 | NEEDLE BEARING Needle |
| 16 | 3 | YN32W01073P1 | NEEDLE BEARING Needle |
| 15 | 6 | YN32W01071P1 | WASHER Washer, Thrust |
| 13 | 1 | YN32W01104P1 | BOX Housing |
| 12 | 1 | YN32W01060P1 | GASKET Oil Seal |
| 11 | 1 | YN32W01029P1 | SPHERICAL BEARING Spherical |
| 10 | 1 | YN32W01030P1 | SPHERICAL BEARING Spherical |
| 9 | 4 | YN32W01067P1 | SHAFT |
| 8 | 1 | YN32W01058P1 | CARRIER Spider |
| 7-2 | 3 | YN32W01066P1 | SHAFT |
| 7-1 | 1 | YN32W01009P1 | |
| 7 | 1 | YN32W01057F1 | CARRIER Spider Assy |
| 6 | 1 | YN32W01056P1 | RING GEAR |
| 5 | 4 | YN32W01055P1 | GEAR Pinion |
| 4 | 1 | YN32W01054P1 | GEAR Sun |
| 3 | 3 | YN32W01053P1 | GEAR Pinion |
| 2 | 1 | YN32W01052P1 | GEAR Sun |
| 1 | 1 | YN32W01051P1 | SHAFT |
| AR | YN32W00019F1 | GEAR REDUCTION UNIT Reduction Assy (Swing) |
YN32W01060P1 is the spindle oil seal for the K200-8 slewing gearbox.
