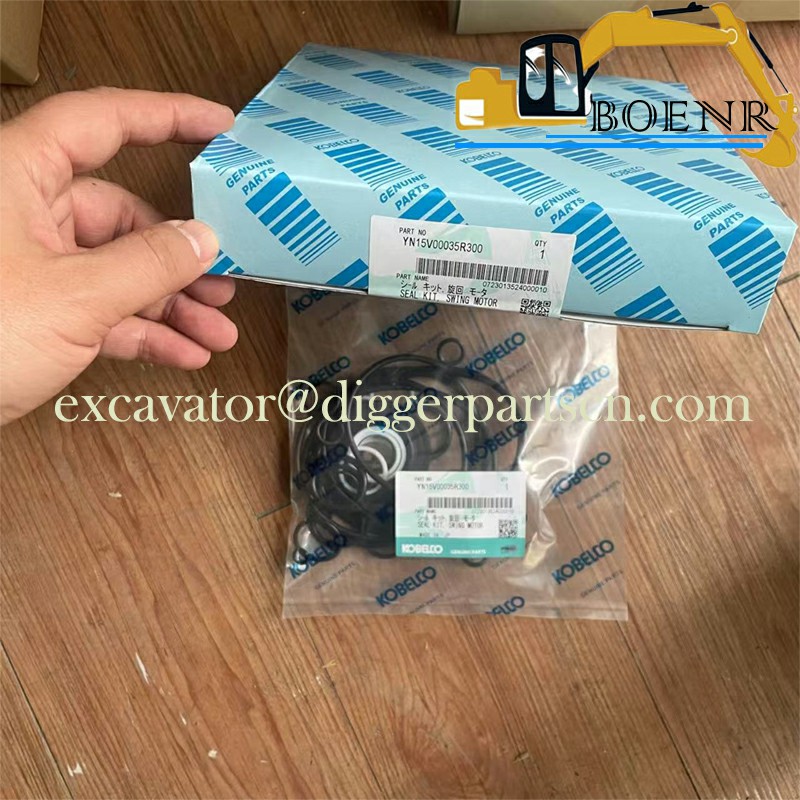

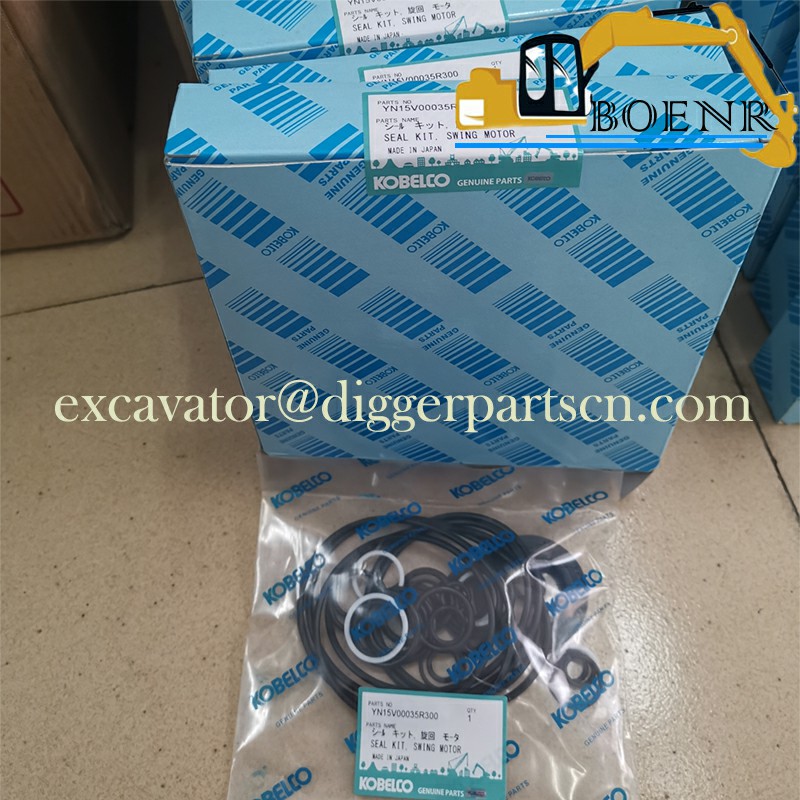

YN15V00035R300 Swing Motor Seal Kit For SK200-8 SK210-8
SK200-8 SK210-8 Swing Motor Seal Kit YN15V00035R300
| Part Name | Oil Seal | Part Number | YN15V00035R300 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-8 SK210-8 |
Weight:0.6KG

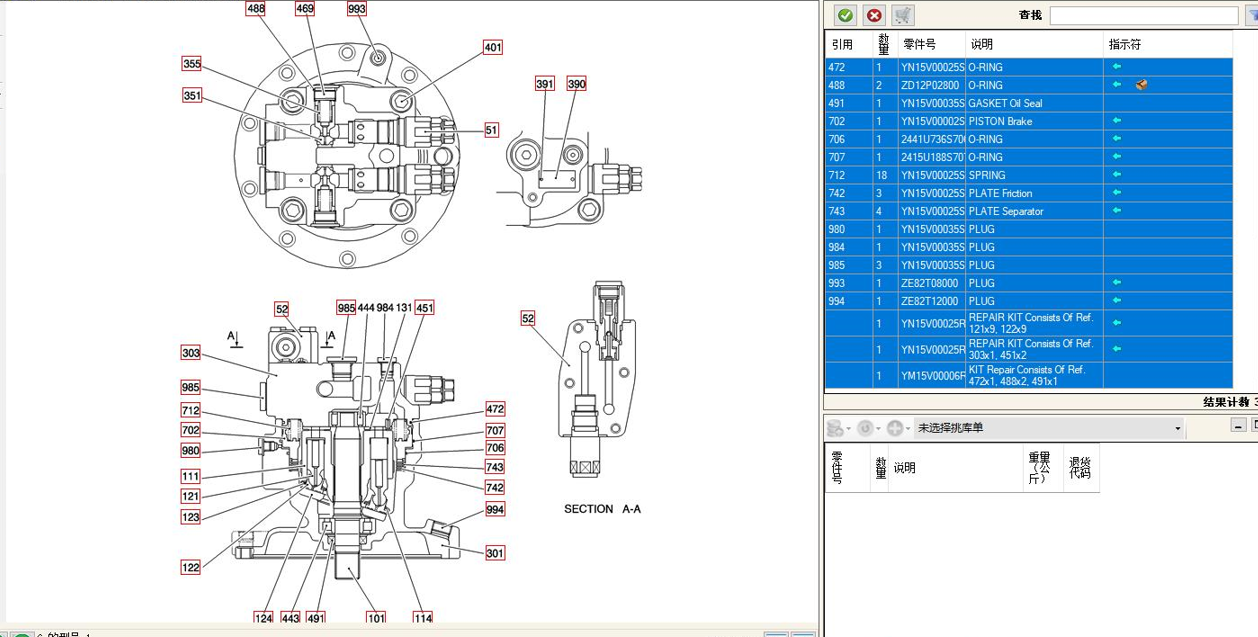

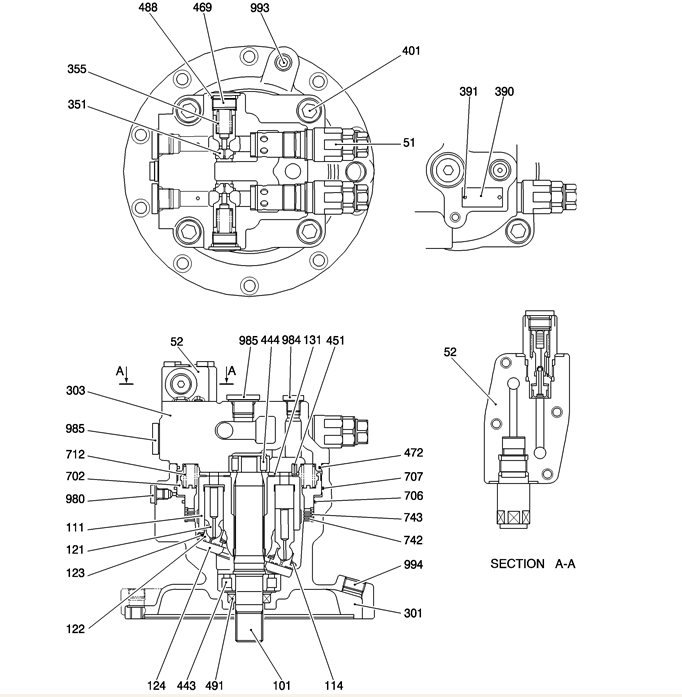

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 1 | YM15V00006R100 | KIT Repair Consists Of Ref. 472x1, 488x2, 491x1 | |
| 1 | YN15V00025R200 | REPAIR KIT Consists Of Ref. 303x1, 451x2 | |
| 1 | YN15V00025R100 | REPAIR KIT Consists Of Ref. 121x9, 122x9 | |
| 994 | 1 | ZE82T12000 | PLUG |
| 993 | 1 | ZE82T08000 | PLUG |
| 985 | 3 | YN15V00035S985 | PLUG |
| 984 | 1 | YN15V00035S984 | PLUG |
| 980 | 1 | YN15V00035S980 | PLUG |
| 743 | 4 | YN15V00025S743 | PLATE Separator |
| 742 | 3 | YN15V00025S742 | PLATE Friction |
| 712 | 18 | YN15V00025S712 | SPRING |
| 707 | 1 | 2415U188S707 | O-RING |
| 706 | 1 | 2441U736S706 | O-RING |
| 702 | 1 | YN15V00002S014 | PISTON Brake |
| 491 | 1 | YN15V00035S491 | GASKET Oil Seal |
| 488 | 2 | ZD12P02800 | O-RING |
| 472 | 1 | YN15V00025S489 | O-RING |
| 469 | 2 | YN15V00002S012 | PLUG |
| 451 | 2 | NSS | NOT SERVICED SEPARATELY Pin |
| 444 | 1 | LQ15V00008S010 | BEARING Roller |
| 443 | 1 | YN15V00002S011 | ROLLER BEARING Roller |
| 401 | 4 | ZS23C20045 | CAP |
| 391 | 2 | 2437U407S983 | RIVET Pin |
| 390 | 1 | YB15V00003S390 | PLATE Name Plate not serviced |
| 355 | 2 | YN15V00002S355 | SPRING |
| 351 | 2 | YN15V00025S351 | SPOOL Plunger |
| 303 | 1 | NSS | NOT SERVICED SEPARATELY Case |
| 301 | 1 | YN15V00035S301 | BOX Case |
| 131 | 1 | YN15V00025S131 | PLATE Valve |
| 124 | 1 | YN15V00025S124 | PLATE Shoe |
| 123 | 1 | YN15V00025S123 | PLATE Set |
| 122 | 9 | NSS | NOT SERVICED SEPARATELY Shoe |
| 121 | 9 | NSS | NOT SERVICED SEPARATELY Piston |
| 114 | 1 | YN15V00025S114 | SPRING |
| 111 | 1 | YN15V00025S111 | CYLINDER |
| 101 | 1 | YN15V00025S101 | SHAFT |
| 52 | 1 | YN20V00004F1 | VALVE Assy, Swing-reactionless (See HC315) |
| 51 | 2 | YN22V00014FA | VALVE Assy, Relief (See HC325) |
| AR | YN15V00035F1 | HYDRAULIC MOTOR Assy (Swing) |
