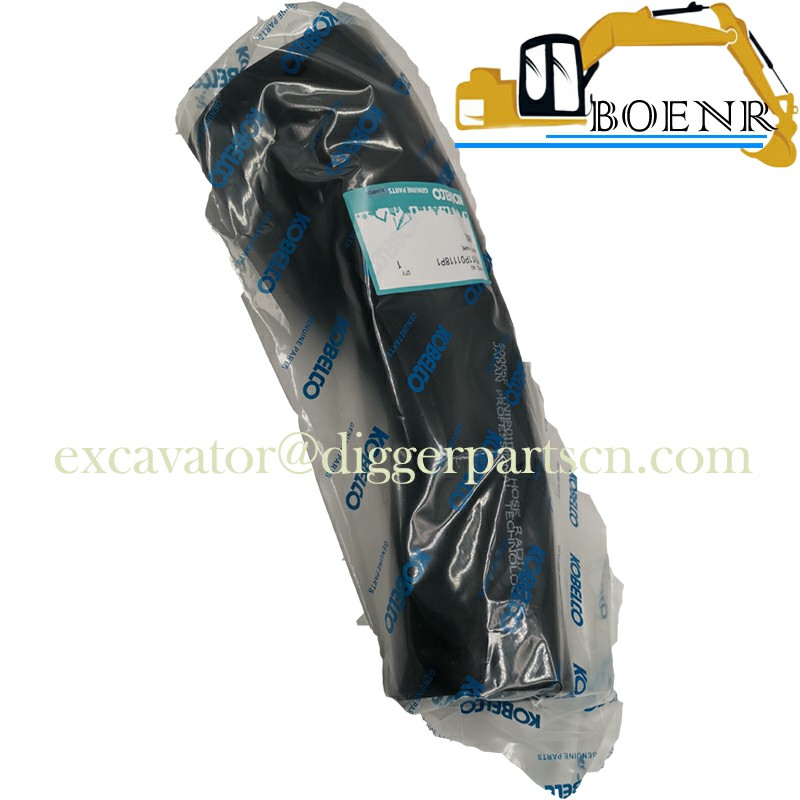

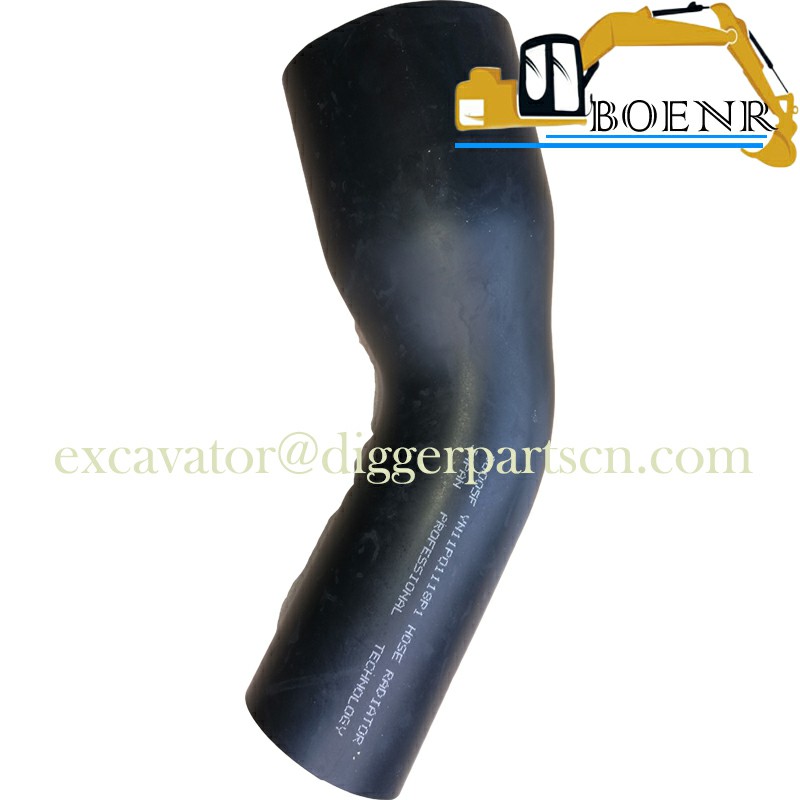

YN11P01118P1 J05E Engine Turbocharger Hose For Kobelco SK200-8 SK210-8 SK250-8 SK260-8
SK200-8 SK210-8 SK250-8 SK260-8 J05E Engine Turbocharger Hose YN11P01118P1
| Part Name | Hose | Part Number | YN11P01118P1 |
| Brand | Kobelco , kobeki | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 |
Weight: 2KG

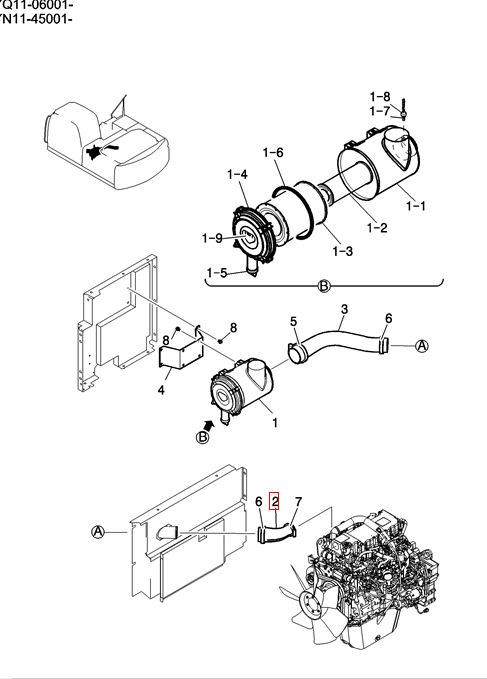

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 8 | 8 | ZM73C10025 | BOLT Sems |
| 7 | 1 | ZC16X07000 | CLIP |
| 6 | 2 | ZC16X10000 | CLIP |
| 5 | 1 | ZC16X12200 | CLIP |
| 4 | 1 | YN11P01126P1 | PLATE |
| 3 | 1 | YN11P01120P1 | HOSE Air |
| 2 | 1 | YN11P01118P1 | HOSE Air |
| 1-9 | 1 | EB11P00001S008 | LABEL |
| 1-8 | 1 | YR11P00008S005 | INDICATOR |
| 1-7 | 1 | EB11P00001S006 | ADAPTER |
| 1-6 | 1 | YN11P00029S006 | O-RING |
| 1-5 | 1 | EB11P00001S005 | VALVE Assy |
| 1-4 | 1 | YN11P00029S004 | COVER ASSY |
| 1-3 | 1 | YN11P00029S003 | AIR FILTER Filter (outer) |
| 1-2 | 1 | YN11P00029S002 | ELEMENT Filter (inner) |
| 1-1 | 1 | YN11P00029S001 | NSS Air cleaner Housing |
| 1 | 1 | YN11P00029F1 | CLEANER Assy, Air |
| AR | YN11P00028F1 | Air |
