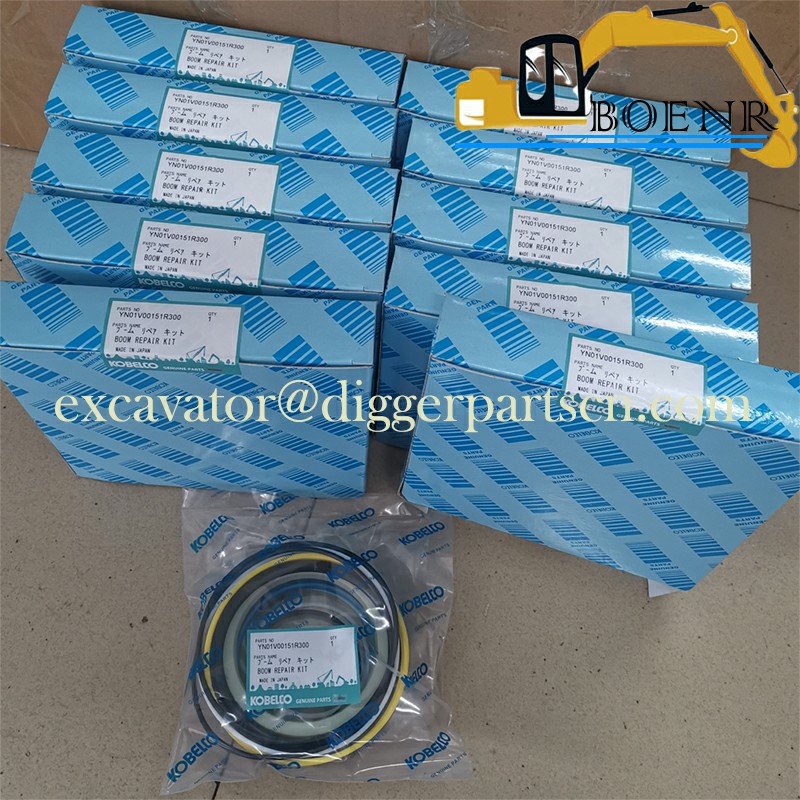

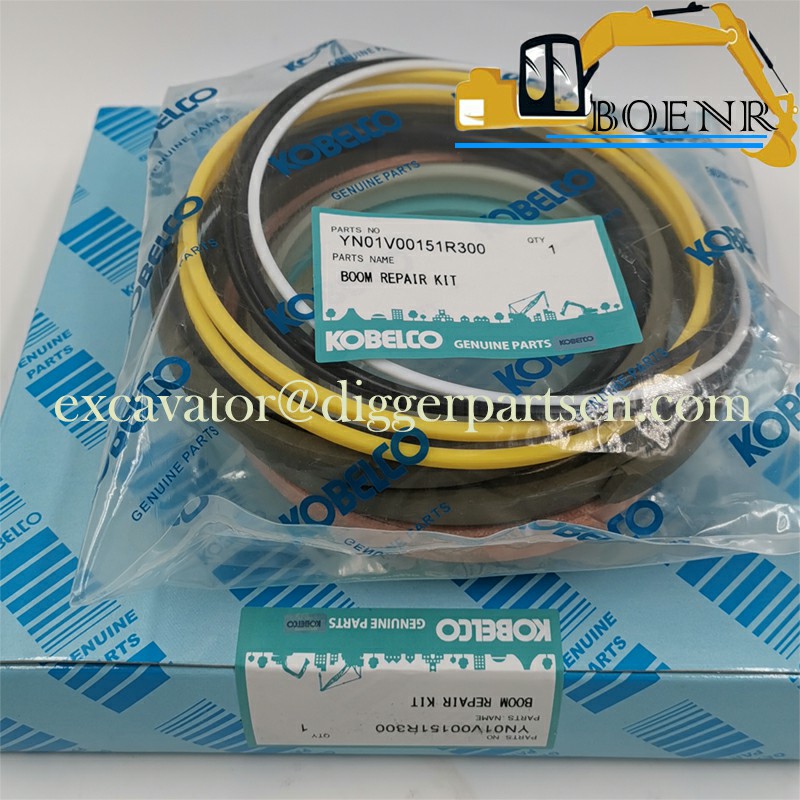

YN01V00151R300 boom cylinder seal kit For kobelco SK200-8 SK210-9 SK210D-8 SK215SRLC
SK200-8 SK210-9 SK210D-8 SK215SRLC boom cylinder seal kit YN01V00151R300
| Part Name | boom cylinder seal kit | Part Number | YN01V00151R300 |
| Brand | Kobelco ,Kobeki | Applicable Model | SK200-8 SK210-9 SK210D-8 SK215SRLC |
Weight: 2KG

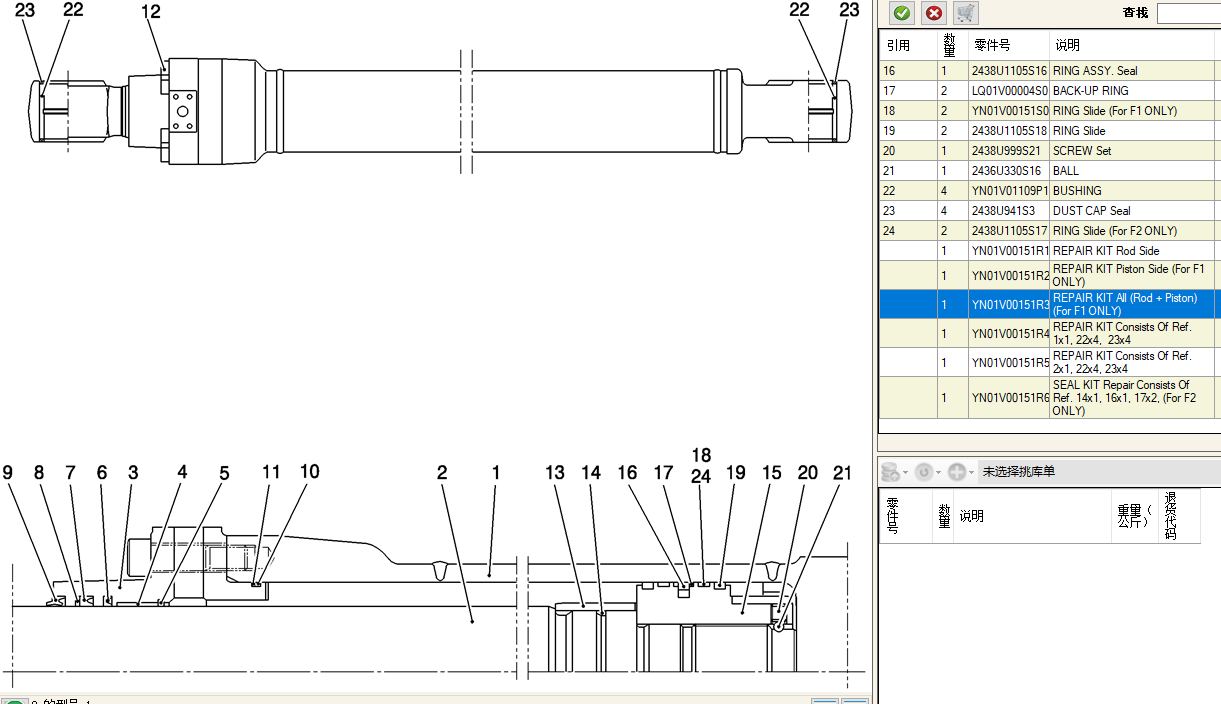

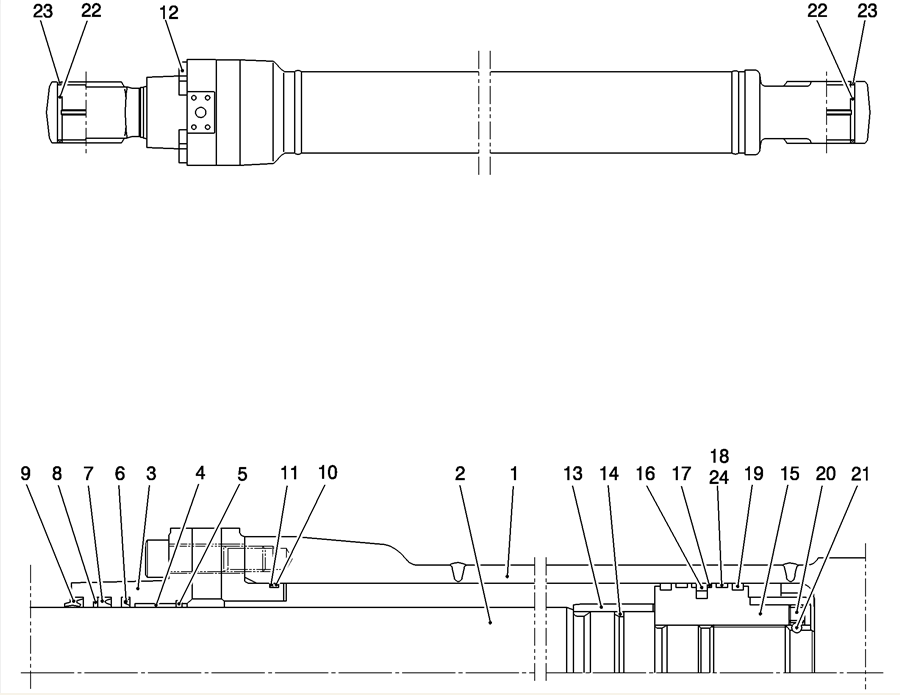

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 1 | YN01V00151R600 | SEAL KIT Repair Consists Of Ref. 14x1, 16x1, 17x2, (For F2 ONLY) | |
| 1 | YN01V00151R500 | REPAIR KIT Consists Of Ref. 2x1, 22x4, 23x4 | |
| 1 | YN01V00151R400 | REPAIR KIT Consists Of Ref. 1x1, 22x4, 23x4 | |
| 1 | YN01V00151R300 | REPAIR KIT All (Rod + Piston) (For F1 ONLY) | |
| 1 | YN01V00151R200 | REPAIR KIT Piston Side (For F1 ONLY) | |
| 1 | YN01V00151R100 | REPAIR KIT Rod Side | |
| 24 | 2 | 2438U1105S17 | RING Slide (For F2 ONLY) |
| 23 | 4 | 2438U941S3 | DUST CAP Seal |
| 22 | 4 | YN01V01109P1 | BUSHING |
| 21 | 1 | 2436U330S16 | BALL |
| 20 | 1 | 2438U999S21 | SCREW Set |
| 19 | 2 | 2438U1105S18 | RING Slide |
| 18 | 2 | YN01V00151S018 | RING Slide (For F1 ONLY) |
| 17 | 2 | LQ01V00004S017 | BACK-UP RING |
| 16 | 1 | 2438U1105S16 | RING ASSY. Seal |
| 15 | 1 | YN01V00151S015 | PISTON |
| 14 | 1 | YN01V00103S014 | SEAL Cushion |
| 13 | 1 | YN01V00151S013 | BEARING Cushion |
| 12 | 12 | ZS23C16075 | SCREW Cap |
| 11 | 1 | 2438U1105S12 | BACK-UP RING |
| 10 | 1 | ZD12G11500 | O-RING |
| 9 | 1 | LP01V00008S009 | RING Wiper |
| 8 | 1 | 2438U959S8 | RING Back Up |
| 7 | 1 | YN01V00151S007 | RING U |
| 6 | 1 | YN01V00151S006 | RING Buffer |
| 5 | 1 | 2438U959S5 | RING Retaining |
| 4 | 1 | 2438U1106S17 | BUSHING |
| 3 | 1 | YN01V00151S003 | CYLINDER HEAD |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY Rod, Piston |
| 1 | 1 | NSS | NOT SERVICED SEPARATELY Tube, Cylinder |
| AR | YN01V00151F2 | CYLINDER Assy, Boom | |
| AR | YN01V00151F1 | CYLINDER Assy, Boom |
