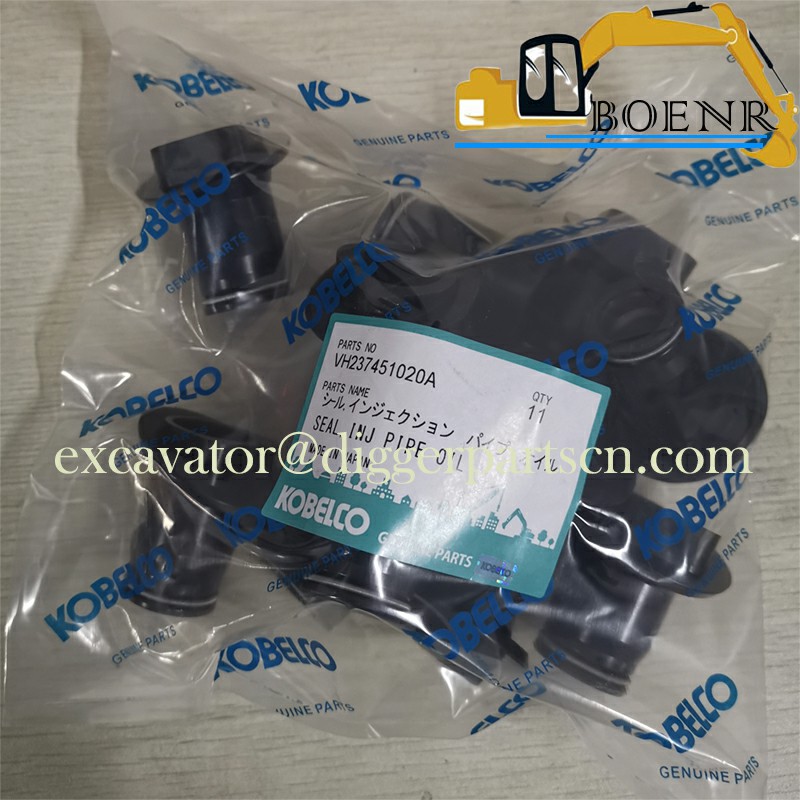

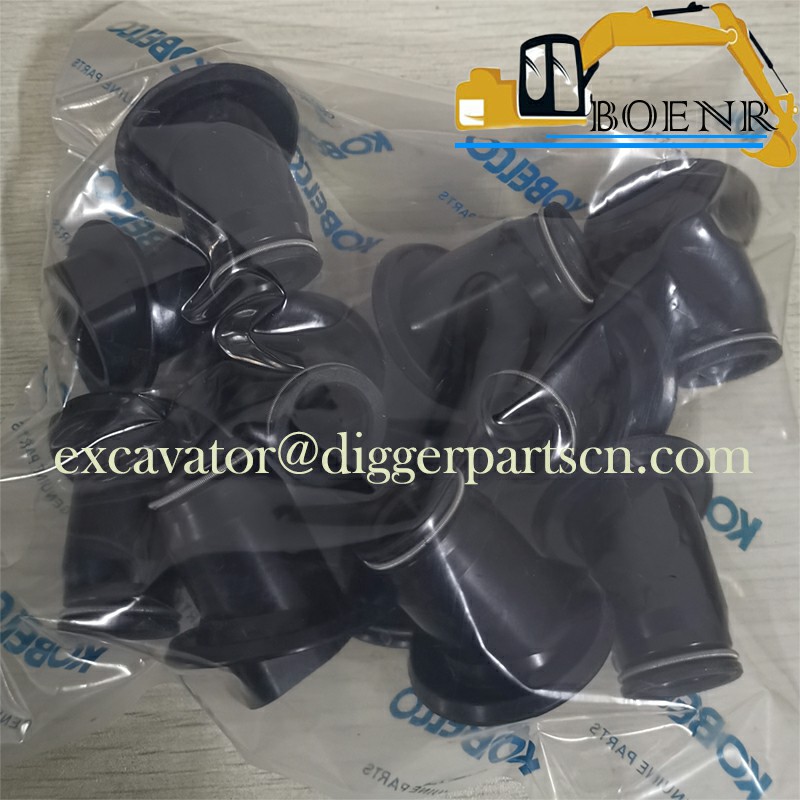

VHS237451020 VH237451020A J08E Engine Injector Seal For SK330-8 SK350-8 SK380-8
SK330-8 SK350-8 SK380-8 J08E Engine Injector Seal VHS237451020 VH237451020A
| Part Name | Seal | Part Number | VHS237451020 VH237451020A |
| Brand | Kobelco, Kobeki | Applicable Model | SK330-8 SK350-8 SK380-8 |
Weight: 0.2KG

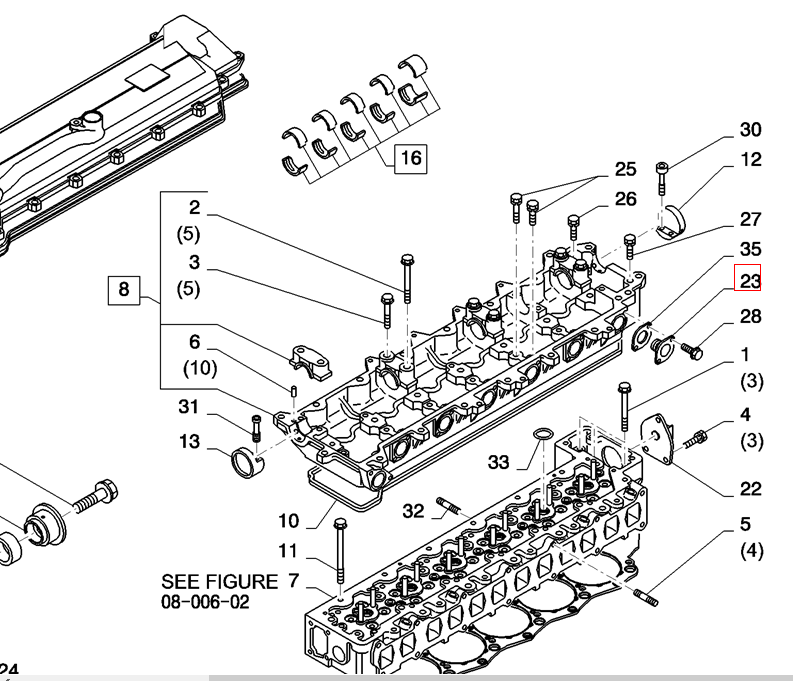

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 35 | 6 | VHSZ92018008 | FLANGE |
| 34 | 1 | VHSZ91024264 | BOLT |
| 33 | 6 | VHSZ30126012 | O-RING |
| 32 | 18 | VHSZ12610016 | STUD |
| 31 | 2 | VHSZ10706003 | BOLT Torx |
| 30 | 2 | VHSZ10706002 | BOLT Torx |
| 29 | 14 | VHSZ10508067 | FLANGE BOLT |
| 28 | 12 | VHSZ10508055 | FLANGE BOLT |
| 27 | 3 | VHSZ10508044 | FLANGE BOLT |
| 26 | 2 | VHSZ10508043 | FLANGE BOLT |
| 25 | 13 | VHSZ10508039 | FLANGE BOLT |
| 24 | 1 | VHS765894090 | PLATE Caution Eng. |
| 23 | 6 | VHS237451020 | SEAL Inj. Pipe Oil |
| 22 | 1 | VHS154928940 | HOLDER Clip |
| 21 | 1 | VH13581E0190 | IDLE SHAFT Gear |
| 20 | 1 | VHS135721250 | PLATE Idle Gear Thrust |
| 19 | 1 | VH13508E0280 | GEAR Sub-Assy., Idle |
| 18 | 18 | VHS125051181 | SILENTBLOC Sub Assy. |
| 17 | 1 | VH12180E0010 | CAP Assy., Oil Filler |
| 16 | 1 | VHS119011020 | BEARING SET Camshaft |
| 15 | 1 | VHS112131880 | GASKET Cyl. Head Cover |
| 14 | 1 | VH11210E0011 | COVER ASSY Cylinder Head |
| 13 | 1 | VHS111881070 | PLUG Camshaft Housing |
| 12 | 1 | VHS111881080 | PLUG Camshaft Housing |
| 11 | 26 | VHS111852261 | BOLT Cyl. Head |
| 10 | 1 | VHS111181011 | GASKET Camshaft Housing |
| 9 | 1 | VH11115E0090 | GASKET Cylinder Head |
| 8 | 1 | VH11103E0130 | HOUSING Camshaft, Includes Ref. 2-3, 6 |
| 7 | 1 | VH11101E0531 | CYLINDER HEAD , See Figure 08-006-02 |
| 6 | 10 | VHSM21200408 | PIN Straight |
| 5 | 4 | VHSJ11200822 | STUD |
| 4 | 3 | VHSH55210816 | FLANGE BOLT |
| 3 | 5 | VHSH52120855 | BOLT |
| 2 | 5 | VHSH52120800 | BOLT |
| 1 | 3 | VHSH51221085 | BOLT |
