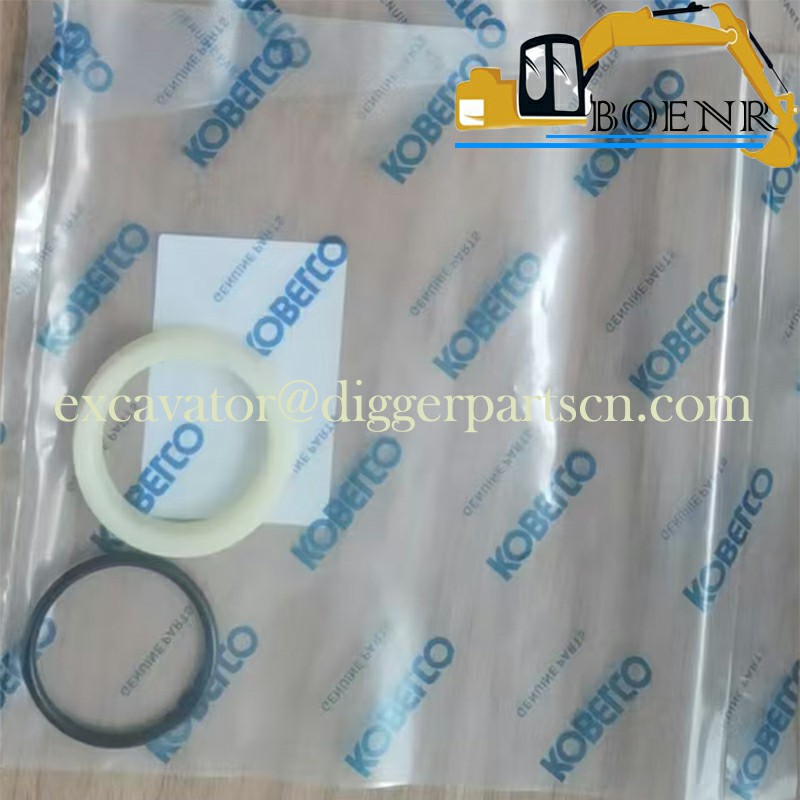

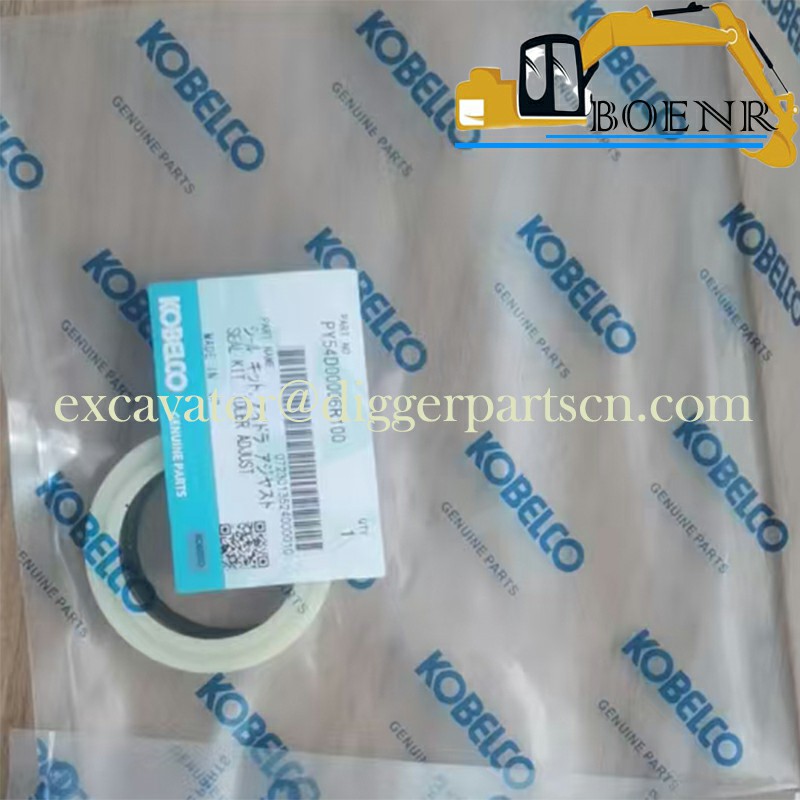

PY54D00006R100 PH54D01010P1 ZD12G04000 Adjuster Oil Seal Repair Kit For SK50SR SK50SR-5
SK50SR SK50SR-5 Adjuster Oil Seal Repair Kit PY54D00006R100 PH54D01010P1 ZD12G04000
| Part Name | Seal | Part Number | PY54D00006R100 PH54D01010P1 ZD12G04000 |
| Brand | Kobelco, Kobeki | Applicable Model | SK50SR SK50SR-5 |
Weight: 0.2 kg
Parts Catalog

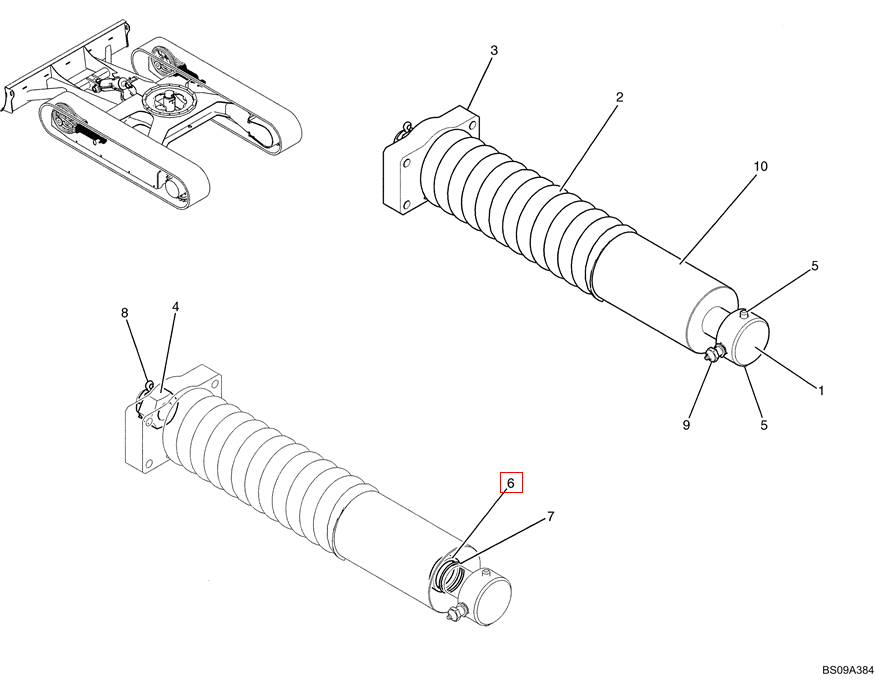

| ITEM | QTY | Part Number | Part Name |
| 10 | 1 | PY70V00005F1 | CYLINDER ASSEMBLY, GREASE |
| 9 | 1 | PX80B01026P1 | LUBE NIPPLE |
| 8 | 1 | ZP16D06056 | PIN Cotter -- OD 6.3 x 56mm Long |
| 7 | 1 | ZD12G04000 | O-RING ID 39.40 ± 0.37 x OD 45mm |
| 6 | 1 | PH54D01010P1 | OIL SEAL |
| 5 | 2 | PX54D01014P1 | PIN |
| 4 | 1 | PY54D01015P1 | NUT |
| 3 | 1 | PY54D01014P1 | PLATE |
| 2 | 1 | PY54D01013P1 | SPRING |
| 1 | 1 | PY01V01021P1 | PISTON |
| AR | PY54D00006F1 | IDLER ADJUSTER ASSEMBLY |
