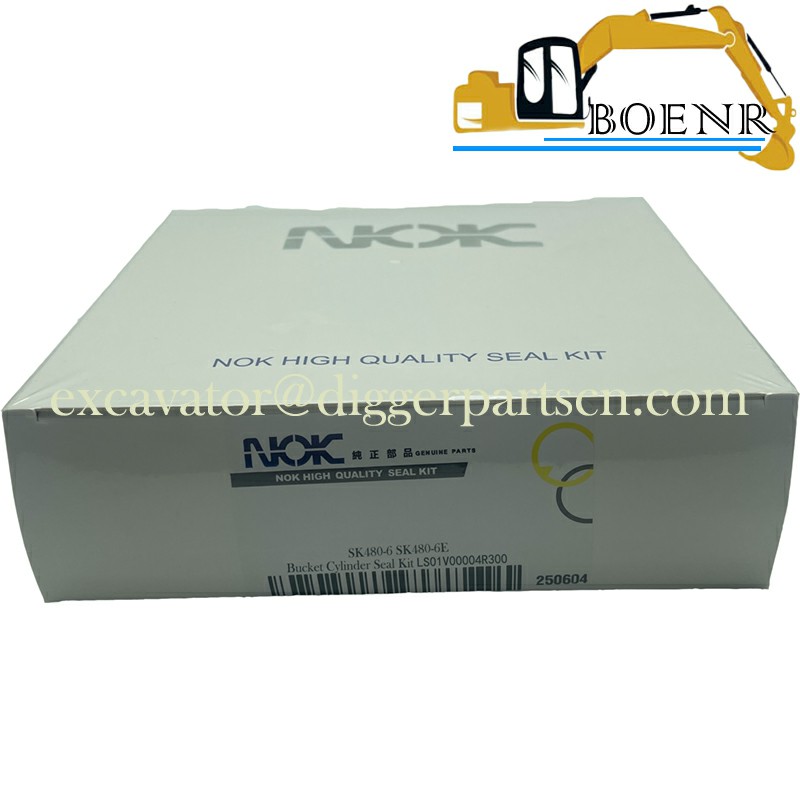

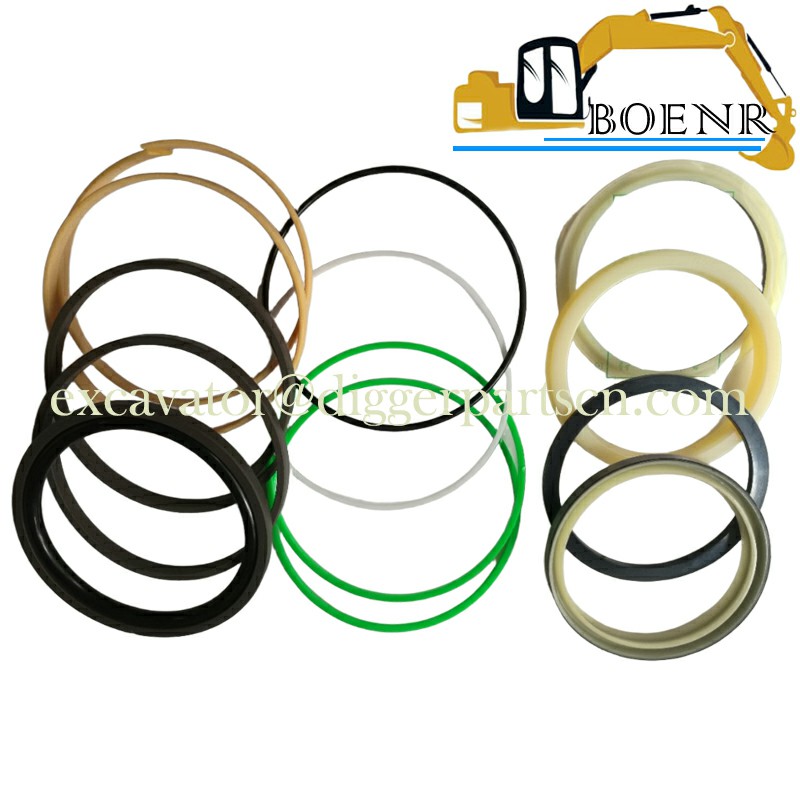

LS01V00004R300 Bucket Cylinder Seal kit For SK480-6 SK480-6E

SK480-6 SK480-6E Bucket Cylinder Seal kit LS01V00004R300

Part Name	seal	Part Number	LS01V00004R300
Brand	Kobeki	Applicable Model	SK480-6 SK480-6E

Weight: 0.2 kg

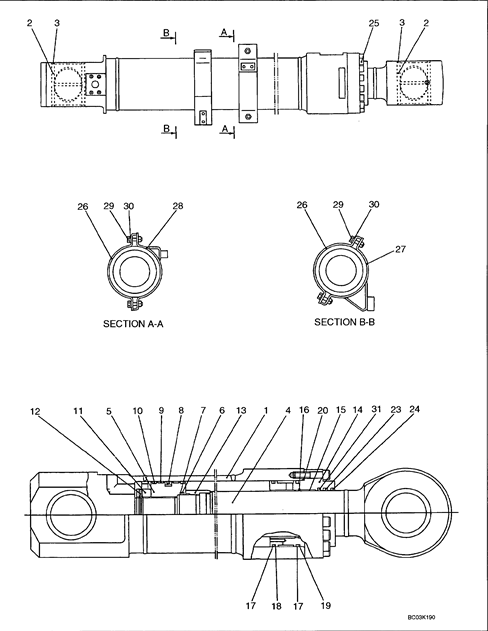

Parts Catalog

ITEM	QTY	PART NUMBER	PART NAME
	1	LS01V00004R500	CONNECTING ROD KIT, PISTON - Includes Ref 2 - 4
	1	LS01V00004R400	REPAIR KIT KIT, CYLINDER - Includes Ref 1 - 3
	1	LS01V00004R300	REPAIR KIT SEAL, ROD & PISTON - Includes Ref 6 - 10, 17 - 20, 23, 24, 31
	1	LS01V00004R200	REPAIR KIT SEAL, PISTON - Includes Ref 6 - 10
	1	LS01V00004R100	REPAIR KIT SEAL, ROD - Includes Ref 17 - 20, 23, 24, 31
31	1	LS01V00004S031	SEAL BUFFER
30	4	ZW26X12000	LOCK WASHER ID 12 x OD 21 x Th 3.0mm
29	4	ZS16C12040	SCREW M12x1.75x40mm
28	1	LS01V00004S028	U-BRACKET
27	1	LS01V00004S027	U-BRACKET
26	2	2438U1175S31	BAND
25	16	ZS23C16070	SCREW M16x2.0x70mm
24	1	2438U662S26	DUST CAP SEAL
23	1	2418U130D23	KIT ROD
20	1	2438U911S12	O-RING
19	1	2438U1175S18	RING
18	1	2438U1175S29	BACK-UP RING
17	2	ZD12G15000	O-RING ID 149.30 ± 1.19 x OD 160mm
16	1	2418U112D81	CIRCLIP
15	1	2438U1175S15	BUSHING
14	1	LS01V00004S014	HYDRAULIC CYLINDER
13	1	LS01V00004S013	RING
12	1	YY01V00008S012	SCREW
11	1	LS01V00004S011	NUT
10	2	2438U1175S10	RING DUST
9	2	LS01V00004S009	WEAR RING
8	1	2438U1175S8	RING PISTON
7	2	LS01V00004S007	BACK-UP RING
6	1	ZD12G09500	GASKET O-Ring -- ID 94.40 ± 0.81 x OD 100mm
5	1	2438U1175S5	PISTON PISTON
4	1	NSS	NOT SERVICED SEPARATELY ROD, PISTON
3	4	2445R138D9	SEAL Dust -- ID 100 x OD 120 x Th 4mm
2	2	2438U324S36	BUSHING
1	1	NSS	NOT SERVICED SEPARATELY TUBE, CYLINDER
	1	LS01V00004F1	CYLINDER ASSEMBLY
