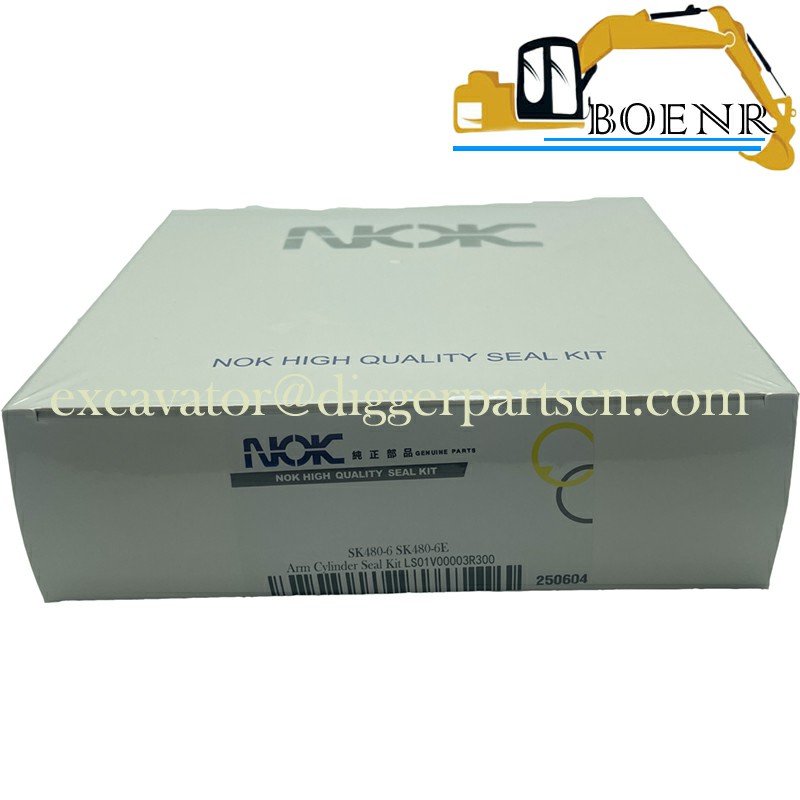

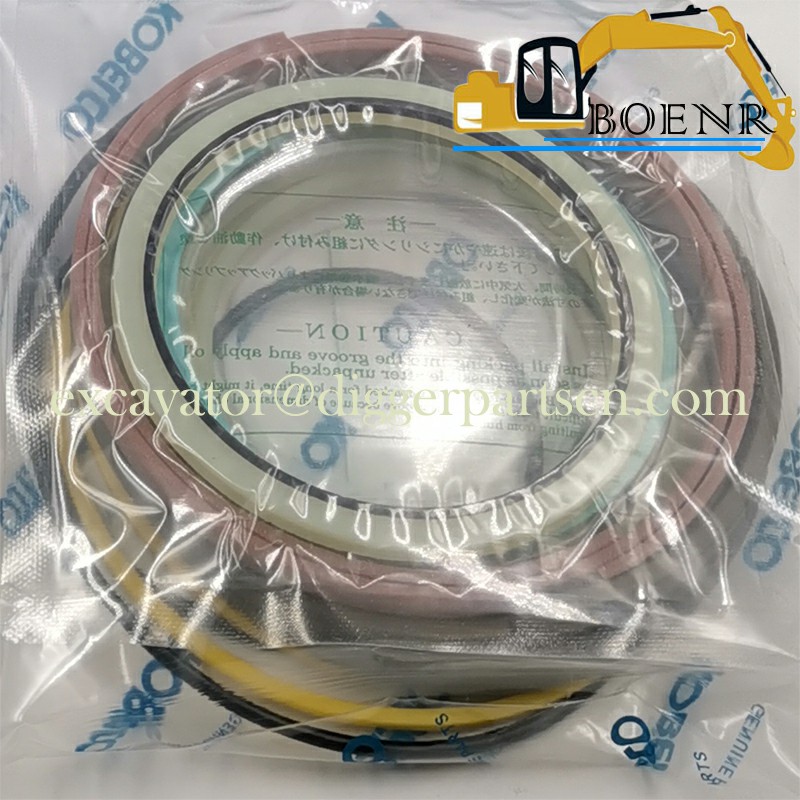

LS01V00003R300 Arm Cylinder Seal Kit For SK480-6 SK480-6E

SK480-6 SK480-6E Arm Cylinder Seal Kit LS01V00003R300

Part Name	seal	Part Number	LS01V00003R300
Brand	Kobeki kobelco	Applicable Model	SK480-6 SK480-6E

Weight: 0.2 kg

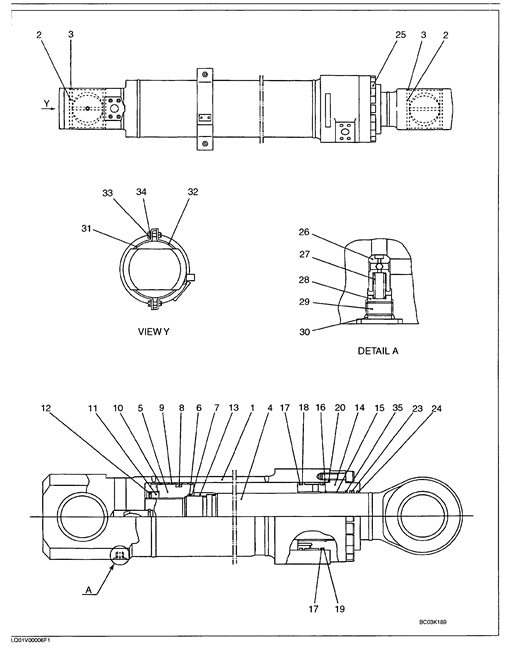

Parts Layout Diagram

Parts Catalog

ITEM	QTY	PARTS NO.	PART NAME
	1	LS01V00003R500	SEAL KIT KIT, PISTON - Includes Ref 2 - 4
	1	LS01V00003R400	RIGID TUBE KIT, CYLINDER - Includes Ref 1 - 3
	1	LS01V00003R300	REPAIR KIT SEAL, ROD & PISTON - Includes Ref 6 - 10, 17 - 20, 23, 24, 35
	1	LS01V00003R200	REPAIR KIT SEAL, PISTON - Includes Ref 6 - 10
	1	LS01V00003R100	REPAIR KIT SEAL, ROD - Includes Ref 17 - 20, 23, 24, 35
35	1	YN01V00025S017	SEAL BUFFER
34	2	ZW26X12000	LOCK WASHER ID 12 x OD 21 x Th 3.0mm
33	2	ZS16C12040	SCREW M12x1.75x40mm
32	1	LS01V00003S034	STRAP BAND
31	1	2438U1174S35	STRAP BAND
30	1	ZD12P01400	O-RING ID 13.80 ± 0.19 x OD 18mm
29	1	YW01V00002S027	PLUG
28	1	2438U921S28	SPACER HOLDER, SPRING
27	1	2438U1030S29	SPRING
26	1	LS01V00003S026	CHECK VALVE
25	20	ZS23C18070	SCREW M18x2.50x70mm
24	1	2438U1343S28	DUST CAP SEAL
23	1	2418U130D29	PACKING ROD
20	1	2438U1029S18	O-RING
19	1	ZD85G18000	BACK-UP RING
18	1	2438U1174S33	BACK-UP RING
17	2	ZD12G18000	O-RING ID 179.30 ± 1.40 x OD 190mm
16	1	2438U333S19	CLIP
15	1	2438U1174S15	BUSHING
14	1	LS01V00003S014	COVER ROD
13	1	LS01V00003S013	RING CUSHION
12	1	LS01V00003S012	SET SCREW
11	1	LS01V00003S011	NUT
10	2	2438U507S41	SCRAPER RING DUST
9	3	LS01V00003S009	WEAR RING
8	1	2438U1174S8	SEAL PISTON
7	2	LS01V00003S007	BACK-UP RING
6	1	ZD12G11500	O-RING ID 114.40 ± 0.94 x OD 120mm
5	1	2438U1174S5	PISTON
4	1	NSS	NOT SERVICED SEPARATELY ROD, PISTON
3	4	2438U1173S6	SEAL
2	2	2438U1174S2	BUSHING
1	1	NSS	NOT SERVICED SEPARATELY TUBE, CYLINDER
	1	LS01V00003F1	CYLINDER CYLINDER ASSY, ARM
