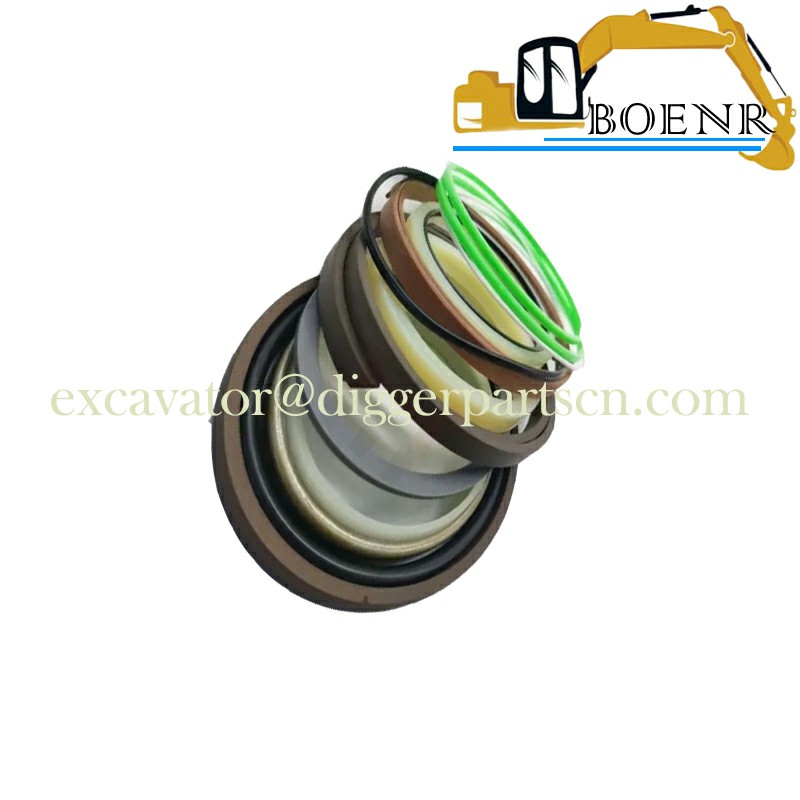

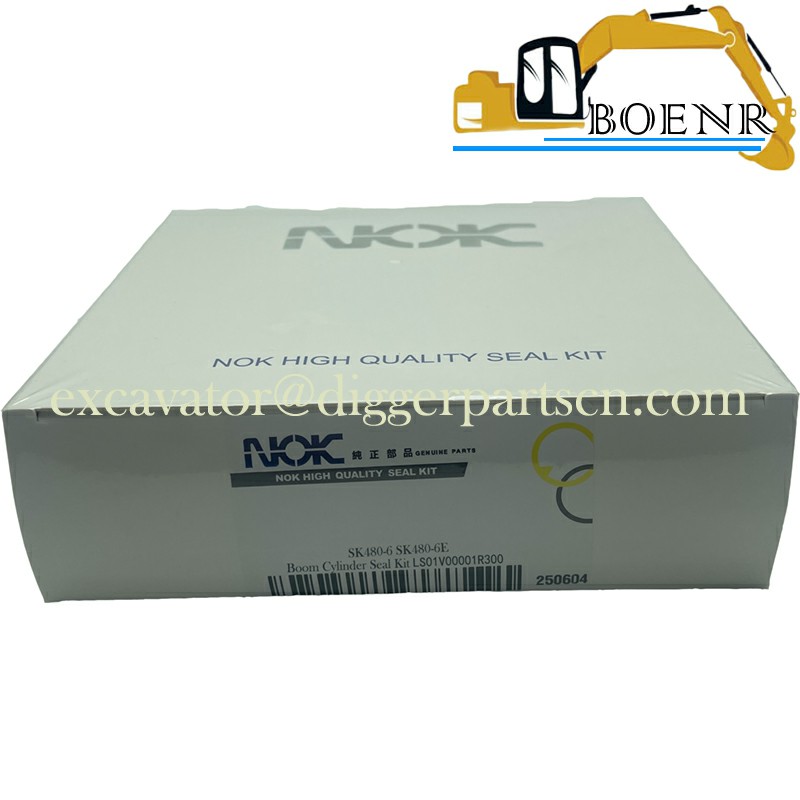

LS01V00001R300 Boom Cylinder Seal Kit For SK480-6 and SK480-6E

SK480-6 SK480-6E Boom Cylinder Seal Kit LS01V00001R300

Part Name	seal	Part Number	LS01V00001R300
Brand	Kobeki	Applicable Model	SK480-6 SK480-6E

Weight: 0.2 kg

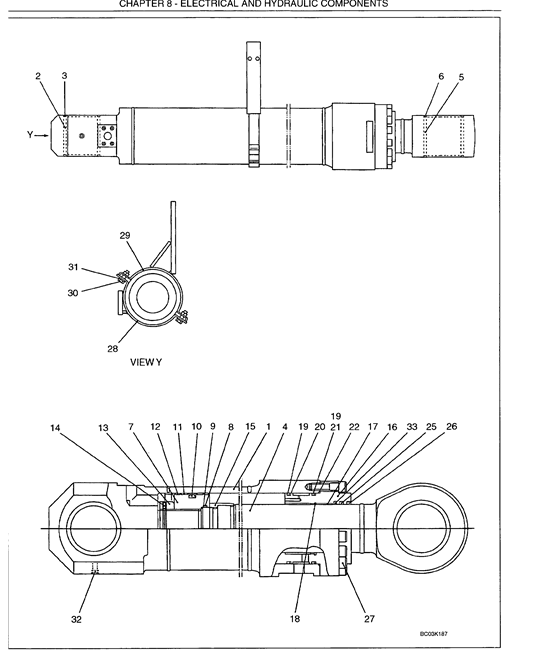

Parts Catalog

ITEM	QTY	PART NUMBER	PART NAME
	1	LS01V00001R500	CYLINDER KIT, PISTON - Includes Ref 4 - 6
	1	LS01V00001R400	REPAIR KIT KIT, CYLINDER - Includes Ref 1 - 3
	1	LS01V00001R300	REPAIR KIT SEAL, ROD & PISTON - Includes Ref 8 - 12, 19, 22, 25, 26, 33
	1	LS01V00001R200	REPAIR KIT SEAL, PISTON - Includes Ref 8 - 12
	1	LS01V00001R100	REPAIR KIT SEAL ROD - Includes Ref 19 - 22, 25, 26, 33
33	1	YN01V00017S025	RUBBER BLOCK
32	1	ZE82T02000	PLUG Pipe, 1.25" PT
31	2	ZW26X12000	LOCK WASHER ID 12 x OD 21 x Th 3.0mm
30	2	ZS16C12040	SCREW M12x1.75x40mm
29	1	LS01V00001S029	U-BRACKET
28	1	LS01V00001S028	U-BRACKET
27	16	ZS23C18070	SCREW M18x2.50x70mm
26	1	2438U1173S25	DUST CAP DUST
25	1	2438U1173S24	RING
22	1	2438U720S16	O-RING
21	2	2438U1173S20	RING
20	1	2438U1173S31	RING
19	2	ZD12G16000	O-RING 160mm ID x 170mm OD
18	1	LS01V00001S018	SNAP RING
17	1	2438U1173S17	BUSHING
16	1	LS01V00001S016	COVER
15	1	LS01V00001S015	RING
14	1	YY01V00008S012	SCREW
13	1	YY01V00008S011	NUT
12	2	2438U1028D1S12	RING DUST
11	2	LS01V00001S011	WEAR RING
10	1	2438U984S10	SEAL PISTON
9	2	YN01V00017S009	BACK-UP RING
8	1	ZD12G10000	O-RING ID 99.40 ± 0.85 x OD 105mm
7	1	2438U1173S7	PISTON PISTON
6	2	2438U1173S6	SEAL
5	1	LS01V01004P1	BUSHING
4	1	NSS	NOT SERVICED SEPARATELY ROD, PISTON
3	2	2438U662S3	SEAL
2	1	LS01V01003P1	BUSHING
1	1	NSS	NOT SERVICED SEPARATELY TUBE, CYLINDER
	1	LS01V00001F1	CYLINDER ASSEMBLY - Left Hand
