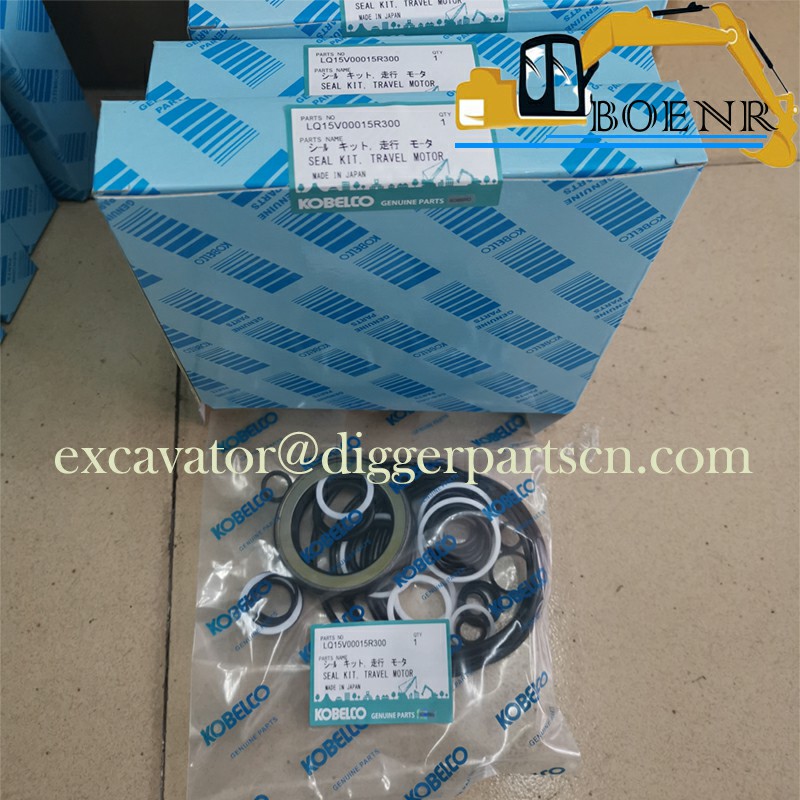

LQ15V00015R300 Slewing Motor Oil Seal Repair Kit For SK250-8 SK260-8 SK460-8 SK485-8

SK250-8 SK260-8 SK460-8 SK485-8 Slewing Motor Oil Seal Repair Kit LQ15V00015R300

Part Name	Oil Seal	Part Number	LQ15V00015R300
Brand	Kobelco , kobeki	Applicable Model	SK250-8 SK260-8 SK460-8 SK485-8

Weight: 0.6KG

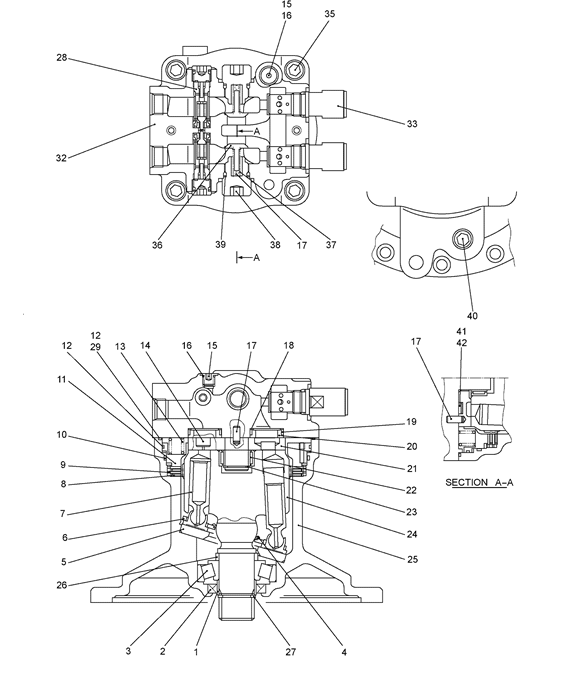

Parts Catalog

ITEM	QTY	PART NUMBER	PART NAME
K	1	LQ15V00015R100	REPAIR KIT CONSISTS OF ITEM 7X9, 22X1, 24X1
42	2	PH15V00004S012	RING
41	2	PH15V00004S013	PISTON
40	1	LP15V00002S027	PLUG
39	2	ZD85P02600	BACK-UP RING ID 26 x OD 32 x Th 1.25mm
38	2	2441U962S48	PLUG
37	2	2441U962S46	SPRING
36	2	2441U962S45	CHECK VALVE
35	4	ZS23C16060	SCREW M16x2.0x60mm
33	2	LQ22V00002F1	HYDRAULIC VALVE SEE (HC326)
32	1	NA	NOT SERVICED COVER
29	1	LQ15V00015S029	O-RING (F2 ONLY)
28	2	LQ20V00001F1	HYDRAULIC VALVE SEE (HC316)
27	1	LQ15V00015S027	SNAP RING RETAINING
26	1	LQ15V00015S026	RING COLLAR
25	1	NA	NOT SERVICED CASE
24	1	NA	NOT SERVICED CYLINDER
23	1	LQ15V00015S023	RING RETAINING
22	1	LQ15V00015S022	BEARING ASSY NEEDLE
21	1	LQ15V00015S021	PLATE
20	4	LQ15V00015S020	BUSHING
19	4	LQ15V00015S019	RING
18	4	LQ15V00015S018	WASHER, LOCK
17	2	2441U455S53	PIN
16	3	ZD12P01100	O-RING ID 10.80 ± 0.18 x OD 15mm
15	3	2436U1309S41	CAP
14	2	LQ15V00015S014	PISTON
13	19	LQ15V00015S013	SPRING
	1	LQ15V00015S012	O-RING (F2 ONLY)
12	2	LQ15V00015S012	O-RING (F1 ONLY)
11	1	LQ15V00015S011	PISTON PISTON
10	1	LQ15V00015S010	O-RING
9	3	LQ15V00015S009	PLATE
8	3	LQ15V00015S008	PLATE
7	9	NA	NOT SERVICED PISTON ASSY
6	1	LQ15V00015S006	PLATE
5	1	LQ15V00015S005	PLATE
4	1	LQ15V00015S004	SPRING SEAT
3	1	LQ15V00015S003	BEARING ASSY ROLLER
2	1	LQ15V00015S002	OIL SEAL
1	1	LQ15V00015S001	SNAP RING
		LQ15V00015F2	HYDRAULIC MOTOR Assembly (Swing)
		LQ15V00015F1	HYDRAULIC MOTOR Assembly (Swing)
