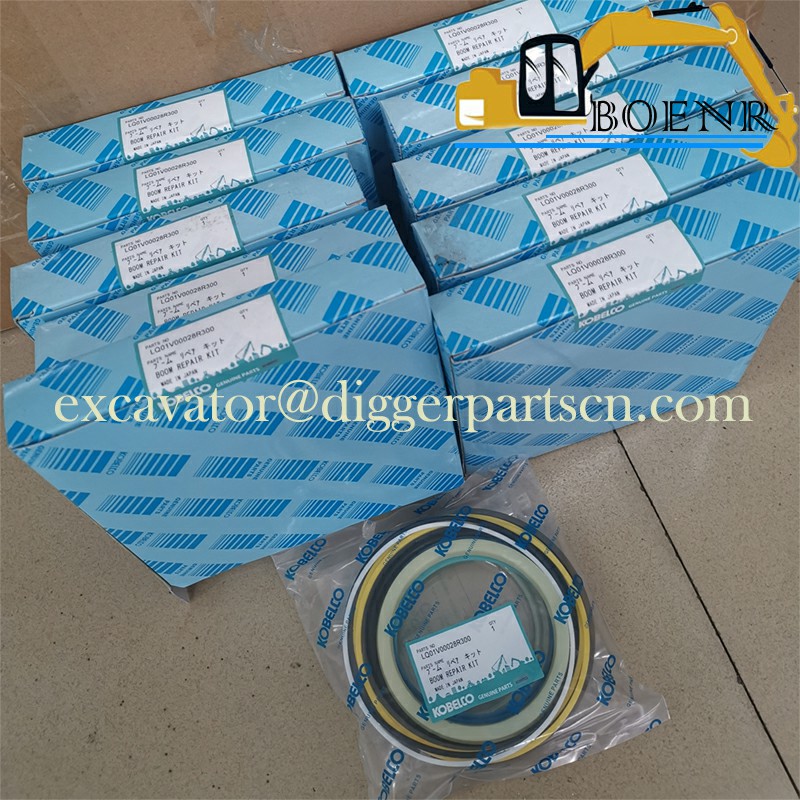

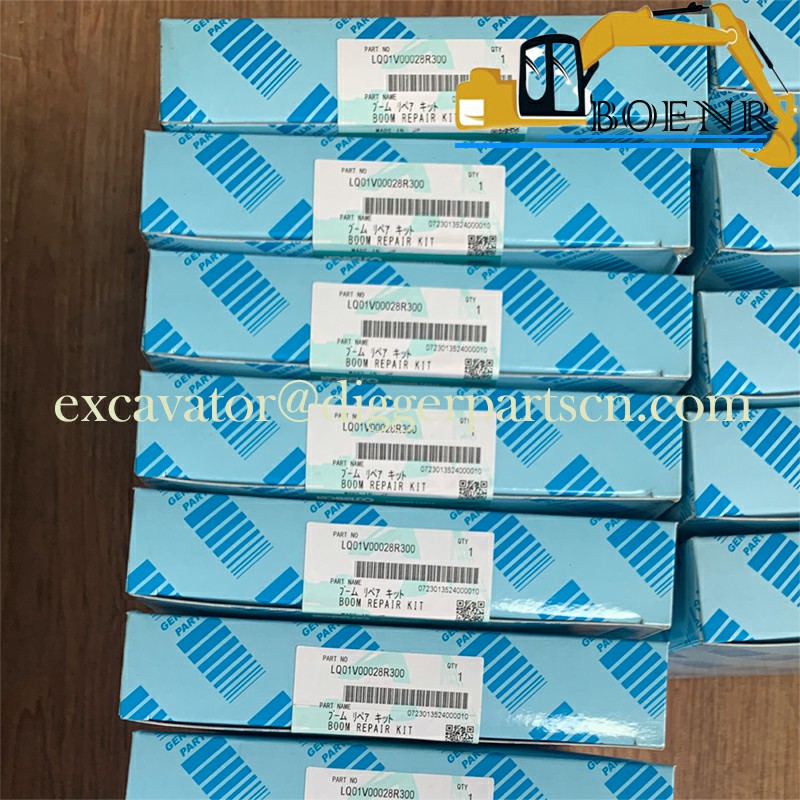

LQ01V00028R300 Boom Cylinder Seal Kit For SK250-8 SK260-8
SK250-8 SK260-8 Boom Cylinder Seal Kit LQ01V00028R300
| Part Name | Cylinder Seal Kit | Part Number | LQ01V00028R300 |
| Brand | Kobelco、Kobeki | Applicable Model | SK250-8 SK260-8 |
Weight:2KG

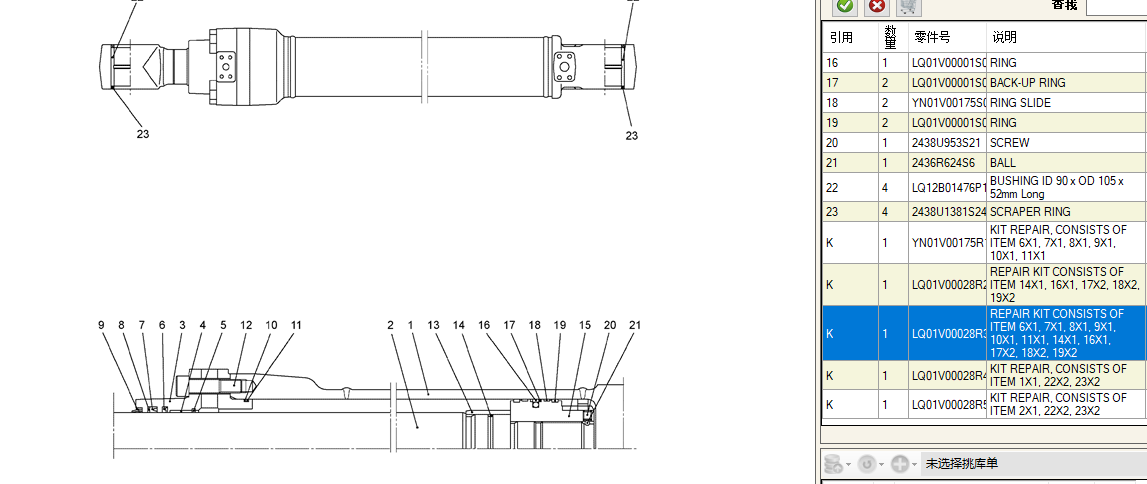

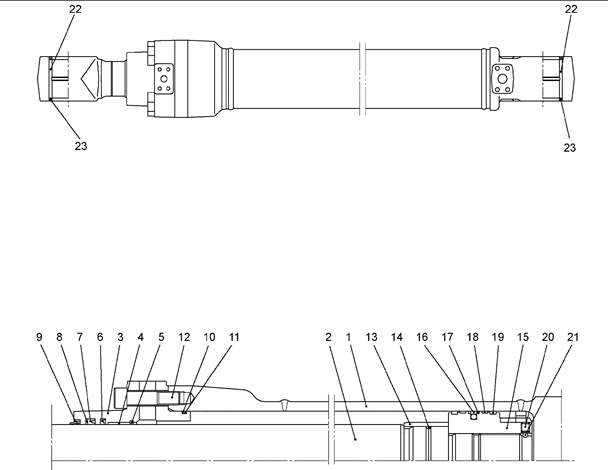

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| K | 1 | LQ01V00028R500 | KIT REPAIR, CONSISTS OF ITEM 2X1, 22X2 |
| K | 1 | LQ01V00028R400 | KIT REPAIR, CONSISTS OF ITEM 1X1, 22X2 |
| K | 1 | LQ01V00028R300 | REPAIR KIT CONSISTS OF ITEM 6X1, 7X1, 8X1, 9X1, 10X1, 11X1, 14X1, 16X1, 17X2, 18X2, 19X2 |
| K | 1 | LQ01V00028R200 | REPAIR KIT CONSISTS OF ITEM 14X1, 16X1, 17X2, 18X2, 19X2 |
| K | 1 | YN01V00175R100 | KIT REPAIR, CONSISTS OF ITEM 6X1, 7X1, 8X1, 9X1, 10X1, 11X1 |
| 23 | 4 | 2438U1381S24 | SCRAPER RING |
| 22 | 4 | LQ12B01476P1 | BUSHING ID 90 x OD 105 x 52mm Long |
| 21 | 1 | 2436R624S6 | BALL |
| 20 | 1 | 2438U953S21 | SCREW |
| 19 | 2 | LQ01V00001S019 | RING |
| 18 | 2 | YN01V00175S018 | RING SLIDE |
| 17 | 2 | LQ01V00001S017 | BACK-UP RING |
| 16 | 1 | LQ01V00001S016 | RING |
| 15 | 1 | YN01V00175S015 | PISTON |
| 14 | 1 | YN01V00105S014 | SEAL |
| 13 | 1 | LQ01V00028S013 | BEARING CUSHION |
| 12 | 12 | ZS23C18080 | SCREW M18x2.50x80mm |
| 11 | 1 | LQ01V00001S011 | RING |
| 10 | 1 | ZD12G13000 | O-RING ID 129.40 ± 1.05 x OD 135mm |
| 9 | 1 | 2438U776S9 | RING |
| 8 | 1 | YN01V00105S008 | BACK-UP RING |
| 7 | 1 | YN01V00175S007 | RING U |
| 6 | 1 | YN01V00175S006 | RING BUFFER |
| 5 | 1 | 2438U776S5 | SNAP RING |
| 4 | 1 | 2438U1018S4 | BUSHING |
| 3 | 1 | LQ01V00028S003 | CYLINDER HEAD |
| 2 | 1 | NA | NOT SERVICED ROD,PISTON |
| 1 | 1 | NA | NOT SERVICED TUBE,CYLINDER |
| LQ01V00028F1 | CYLINDER ASSY. BOOM |
