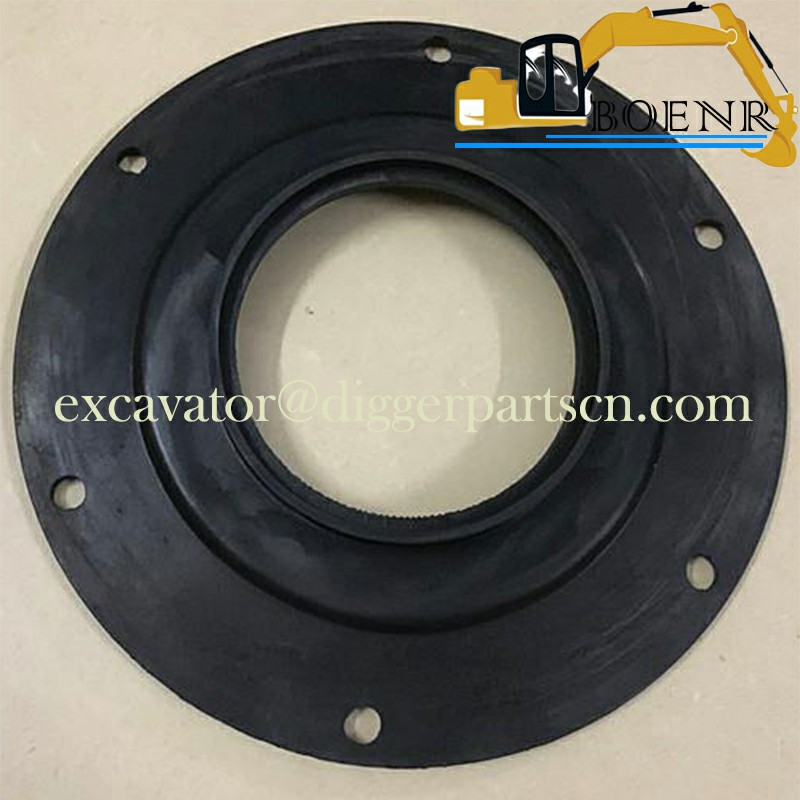

LC52F01314P1 Turntable Seal For SK350-8 SK380-8 SK330-8
SK350-8 SK380-8 SK330-8 Turntable Seal LC52F01314P1
| Part Name | Seal | Part Number | LC52F01314P1 |
| Brand | Kobelco, kobeki | Applicable Model | SK350-8 SK380-8 SK330-8 |
Weight: 0.4 kg

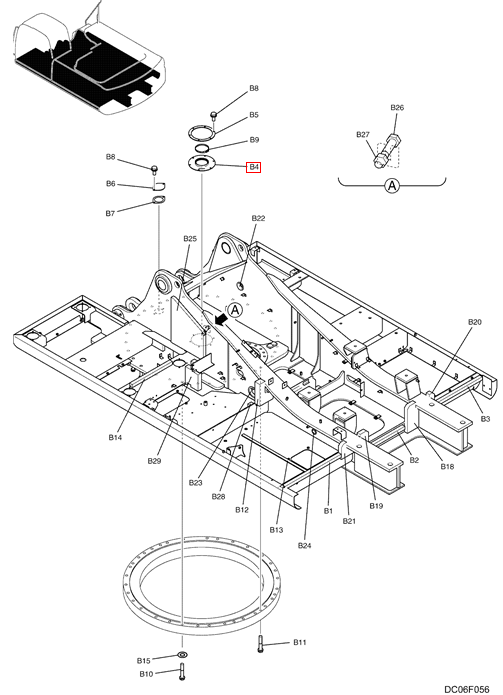

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| B29 | 1 | LC52F01519P1 | INSULATOR INSULATION |
| B28 | 1 | LC52F01464P1 | FOAM INSULATION INSULATION |
| B27 | 1 | ZN18F24019 | NUT M24x2.0mm |
| B26 | 1 | ZS18F24130 | SCREW M24x2.0x130mm |
| B24 | 1 | PH13E01071P1 | GROMMET |
| B23 | 1 | YN64H01286D2 | GASKET GROMMET |
| B22 | 1 | 2420Z1370 | GROMMET |
| B21 | 1 | LC52F01413P1 | FOAM INSULATION INSULATION |
| B20 | 1 | LC52F01412P1 | FOAM INSULATION INSULATION |
| B19 | 1 | LC52F01403P1 | FOAM INSULATION INSULATION |
| B18 | 1 | LC52F01402P1 | FOAM INSULATION INSULATION |
| B14 | 1 | LC52F01274P1 | FOAM INSULATION INSULATION |
| B13 | 1 | LC52F01508P1 | FOAM INSULATION INSULATION |
| B12 | 1 | LC52F01298P1 | FOAM INSULATION INSULATION |
| B11 | 1 | HS53C24135G1 | SCREW CAPSCREW |
| B10 | 34 | 2420P1613D1 | SCREW M24x2.0x135mm |
| B9 | 1 | LC52F01526P1 | CLIP CLIP |
| B8 | 2 | ZM73C10025 | BOLT M10x1.50x25mm (Incls. Washer) |
| B7 | 1 | 2416Z434 | PACKING Rubber |
| B6 | 1 | YN52F01158P1 | PLATE |
| B5 | 1 | YN52F01158P1 | PLATE |
| B4 | 1 | LC52F01314P1 | SEAL SEAL |
| B3 | 1 | LC52F01268P1 | FOAM INSULATION INSULATION |
| B2 | 1 | LC52F01267P1 | FOAM INSULATION INSULATION |
| B1 | 1 | LC52F01266P1 | FOAM INSULATION INSULATION |
| LC52F00170F1 UPPER FRAME GROUP | |||
| A1-2 | 1 | 2414T5479 | GUARD |
| A1-1 | 2 | 2405T1959 | BUSHING |
| A1 | 1 | LC52F00168P1 | FRAME - UPPER |
