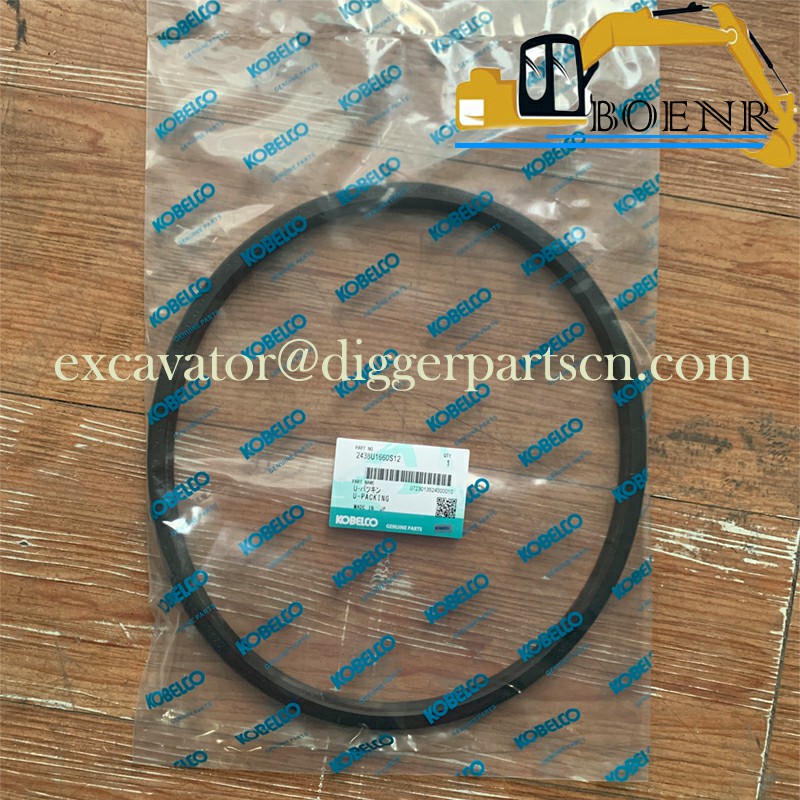

2438u1660s12 u-packing Cylinder Oil Seal For RK250
RK250 Hydraulic Cylinder Oil Seal 2438u1660s12
| Part Name | Oil Seal | Part Number | Y2438u1660s12 |
| Brand | Kobelco | Applicable Model | RK250 |
Weight:0.5KG

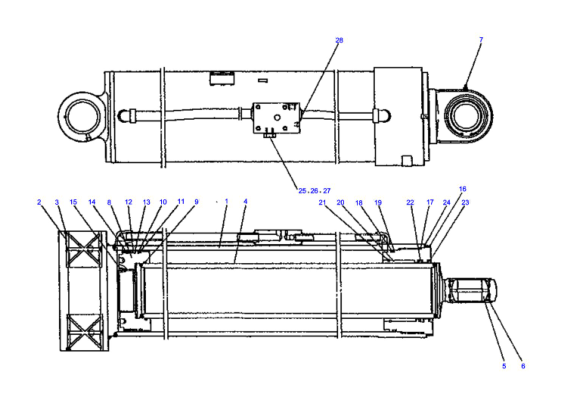

Parts Catalog

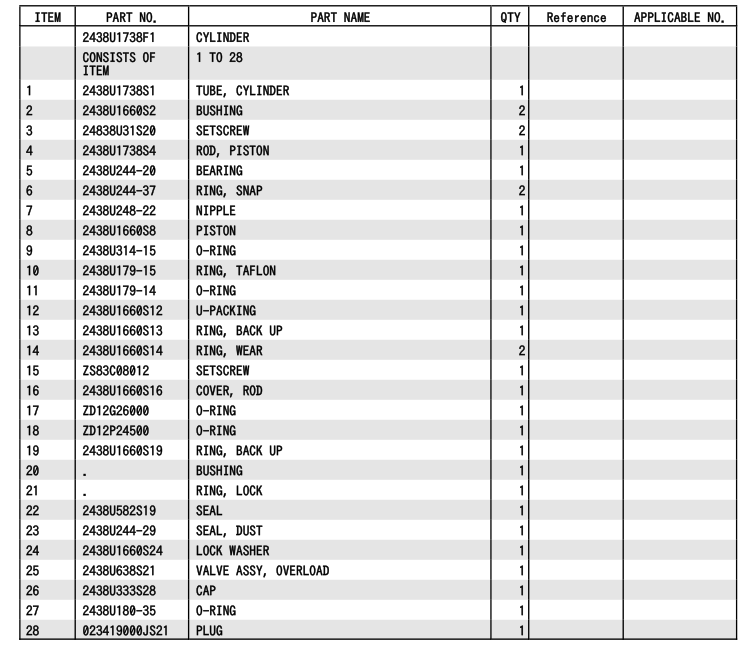

| ITEM | PART NO. | PART NAME | QTY |
| 2438U1738F1 | CYLINDER | ||
| 1 | 2438U1738S1 | TUBE, CYLINDER | 1 |
| 2 | 2438U1660S2 | BUSHING | 2 |
| 3 | 24838U31S20 | SETSCREW | 2 |
| 4 | 2438U1738S4 | ROD, PISTON | 1 |
| 5 | 2438U244-20 | BEARING | 1 |
| 6 | 2438U244-37 | RING, SNAP | 2 |
| 7 | 2438U248-22 | NIPPLE | 1 |
| 8 | 2438U1660S8 | PISTON | 1 |
| 9 | 2438U314-15 | O-RING | 1 |
| 10 | 2438U179-15 | RING, TAFLON | 1 |
| 11 | 2438U179-14 | O-RING | 1 |
| 12 | 2438U1660S12 | U-PACKING | 1 |
| 13 | 2438U1660S13 | RING, BACK UP | 1 |
| 14 | 2438U1660S14 | RING, WEAR | 2 |
| 15 | ZS83C08012 | SETSCREW | 1 |
| 16 | 2438U1660S16 | COVER, ROD | 1 |
| 17 | ZD12G26000 | O-RING | 1 |
| 18 | ZD12P24500 | O-RING | 1 |
| 19 | 2438U1660S19 | RING, BACK UP | 1 |
| 20 | . | BUSHING | 1 |
| 21 | . | RING, LOCK | 1 |
| 22 | 2438U582S19 | SEAL | 1 |
| 23 | 2438U244-29 | SEAL, DUST | 1 |
| 24 | 2438U1660S24 | LOCK WASHER | 1 |
| 25 | 2438U638S21 | VALVE ASSY, OVERLOAD | 1 |
| 26 | 2438U333S28 | CAP | 1 |
| 27 | 2438U180-35 | O-RING | 1 |
| 28 | 023419000JS21 | PLUG | 1 |
