YN10V01009R999 KGGLEVERKIT-20 SK200-8 SK250-8 SK260-8 REGULATOR REPAIR KIT for Kobelco
KGGLEVERKIT-20 YN10V01009F1 lever kit for SK200-8 SK210-8 SK250-8 SK260-8 regulator
| Part name | lever kit | Part Number | KGGLEVERKIT-20 YN10V01009F1 |
| Brand | Kobelco 、KOBEKI | Applicable Models | SK200-8 SK210-8 SK250-8 SK260-8 |
Weight: 0.6KG

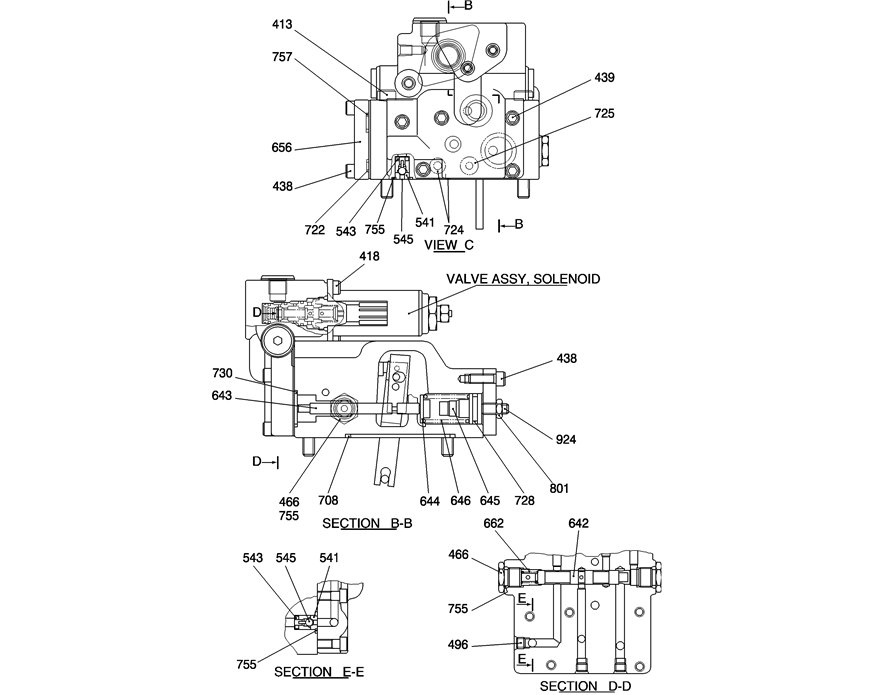

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 1 | 2437U219S41 | REPAIR KIT Consists Of Ref. 541x1, 543x1, 545x1 | |
| 924 | 1 | 2441U722S924 | SCREW Set |
| 898 | 1 | NSS | NOT SERVICED SEPARATELY Pin |
| 897 | 1 | NSS | NOT SERVICED SEPARATELY Pin |
| 887 | 1 | NSS | NOT SERVICED SEPARATELY Pin |
| 876 | 2 | NSS | NOT SERVICED SEPARATELY Pin |
| 875 | 2 | NSS | NOT SERVICED SEPARATELY Pin |
| 874 | 1 | NSS | NOT SERVICED SEPARATELY Pin |
| 858 | 2 | ZR26X01500 | RING Retaining |
| 836 | 1 | NSS | NOT SERVICED SEPARATELY Ring, Retaining |
| 814 | 1 | 2436U2455S814 | RING Retaining |
| 802 | 1 | NSS | NOT SERVICED SEPARATELY Nut |
| 801 | 1 | ZN18C08005 | NUT |
| 763 | 1 | YN10V00003S702 | GASKET O-Ring |
| 757 | 1 | YX10V01001S015 | O-RING |
| 756 | 1 | YN10V01006S022 | O-RING |
| 755 | 7 | YT10V00003S710 | O-RING |
| 753 | 1 | YN10V01006S020 | O-RING |
| 734 | 1 | YN10V01006S019 | O-RING |
| 733 | 4 | YN10V01009S733 | O-RING |
| 732 | 1 | YW10V00003S732 | O-RING |
| 730 | 1 | YZ10V00002S732 | O-RING |
| 728 | 1 | YT10V00003S708 | O-RING |
| 725 | 1 | YN10V01006S013 | O-RING |
| 724 | 8 | YX10V00003S015 | O-RING |
| 722 | 3 | YN10V01006S011 | O-RING |
| 708 | 1 | YX10V01001S010 | O-RING |
| 662 | 1 | NSS | NOT SERVICED SEPARATELY Spring |
| 656 | 1 | NSS | NOT SERVICED SEPARATELY Cover |
| 655 | 1 | NSS | NOT SERVICED SEPARATELY Spring |
| 654 | 1 | NSS | NOT SERVICED SEPARATELY Spring |
| 653 | 1 | NSS | NOT SERVICED SEPARATELY Seat, Spring |
| 652 | 1 | NSS | NOT SERVICED SEPARATELY Spool |
| 651 | 1 | NSS | NOT SERVICED SEPARATELY Sleeve |
| 646 | 1 | NSS | NOT SERVICED SEPARATELY Spring |
| 645 | 1 | NSS | NOT SERVICED SEPARATELY Stem |
| 644 | 1 | NSS | NOT SERVICED SEPARATELY Seat, Spring |
| 643 | 1 | NSS | NOT SERVICED SEPARATELY Piston, Pilot |
| 642 | 1 | NSS | NOT SERVICED SEPARATELY Rod |
| 641 | 1 | NSS | NOT SERVICED SEPARATELY Cover, Pilot |
| 631 | 1 | NSS | NOT SERVICED SEPARATELY Sleeve |
| 630 | 1 | NSS | NOT SERVICED SEPARATELY Nut |
| 629 | 1 | NSS | NOT SERVICED SEPARATELY Cover |
| 628 | 1 | NSS | NOT SERVICED SEPARATELY Screw, Adjust |
| 627 | 1 | NSS | NOT SERVICED SEPARATELY Stem |
| 626 | 1 | NSS | NOT SERVICED SEPARATELY Spring |
| 625 | 1 | NSS | NOT SERVICED SEPARATELY Spring |
| 624 | 1 | NSS | NOT SERVICED SEPARATELY Seat, Spring |
| 623 | 1 | NSS | NOT SERVICED SEPARATELY Rod |
| 622 | 1 | NSS | NOT SERVICED SEPARATELY Case, Piston |
| 621 | 1 | NSS | NOT SERVICED SEPARATELY Piston |
| 615 | 1 | NSS | NOT SERVICED SEPARATELY Plug |
| 614 | 1 | NSS | NOT SERVICED SEPARATELY Plug |
| 613 | 1 | NSS | NOT SERVICED SEPARATELY Lever |
| 612 | 1 | NSS | NOT SERVICED SEPARATELY Lever |
| 611 | 1 | NSS | NOT SERVICED SEPARATELY Lever, Feedback |
| 601 | 1 | NSS | NOT SERVICED SEPARATELY Case |
| 545 | 2 | NSS | NOT SERVICED SEPARATELY Ball |
| 543 | 2 | NSS | NOT SERVICED SEPARATELY Stopper |
| 541 | 2 | NSS | NOT SERVICED SEPARATELY Seat |
| 496 | 18 | 2441U722S490 | PLUG |
| 466 | 3 | 2441U667S466 | PLUG |
| 439 | 5 | ZS23C06025 | SCREW Cap |
| 438 | 8 | ZS28C06020 | SCREW Cap |
| 418 | 2 | YX35V00002S171 | SCREW Cap |
| 413 | 2 | ZS23C08070 | SCREW Cap |
| 412 | 2 | ZS23C08050 | CAP Screw |
| AR | YN10V01009F1 | SPEED GOVERNOR Regulator Assy | |
