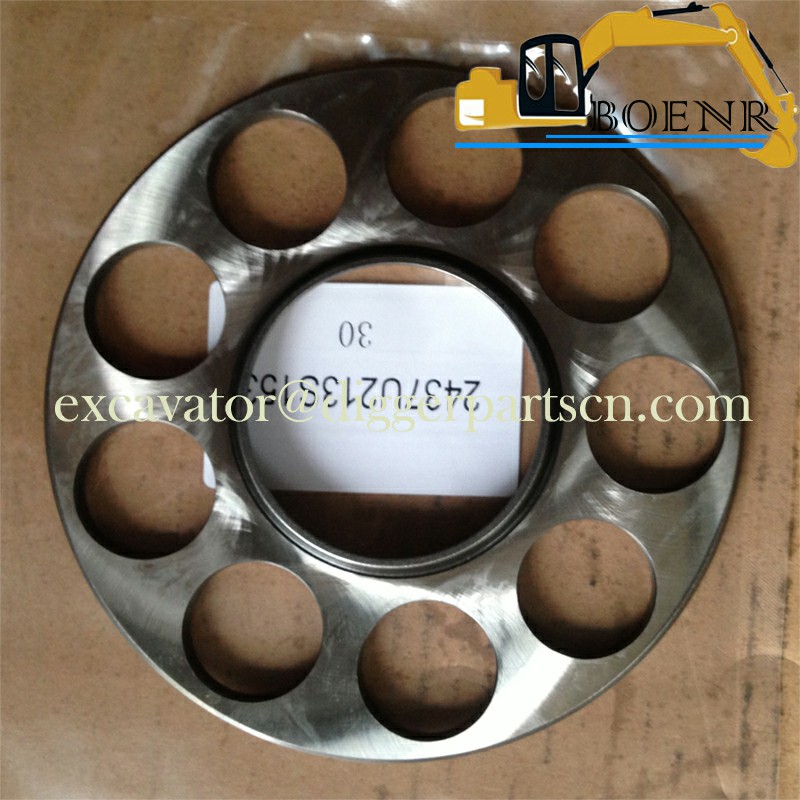

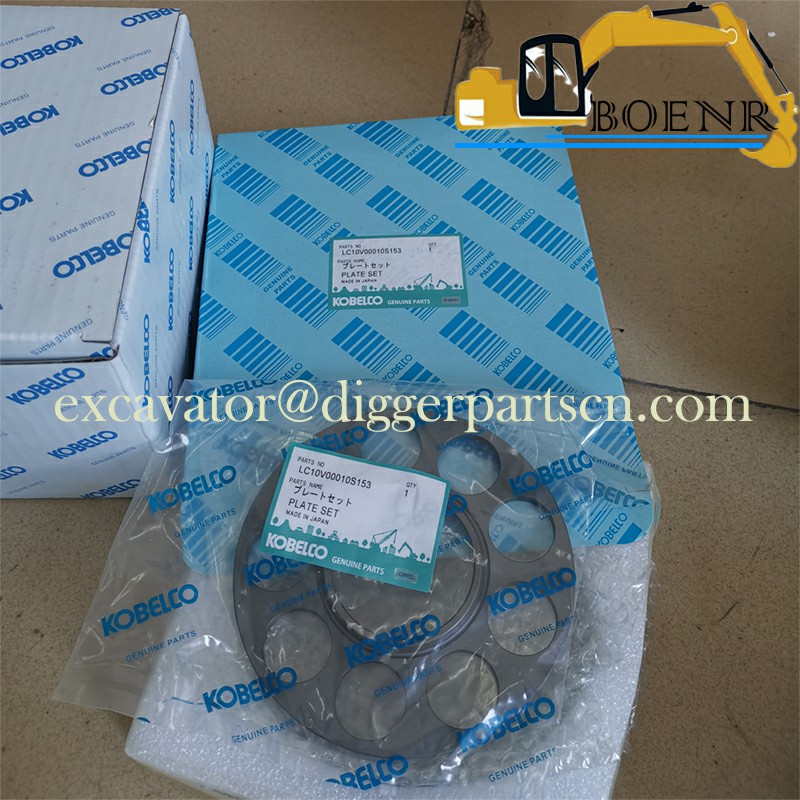

2437U213S153 LC10V00010S153 K3V112 hydraulic pump Plate For SK200-6 SK200-8 SK210-8 SK250-8 SK260-8
SK200-6 SK200-8 SK210-8 SK250-8 SK260-8 K3V112 hydraulic pump Plate 2437U213S153 LC10V00010S153
| Part Name | Plate | Part Number | 2437U213S153 LC10V00010S153 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-6 SK200-8 SK210-8 SK250-8 SK260-8 |
Weight:0.5KG

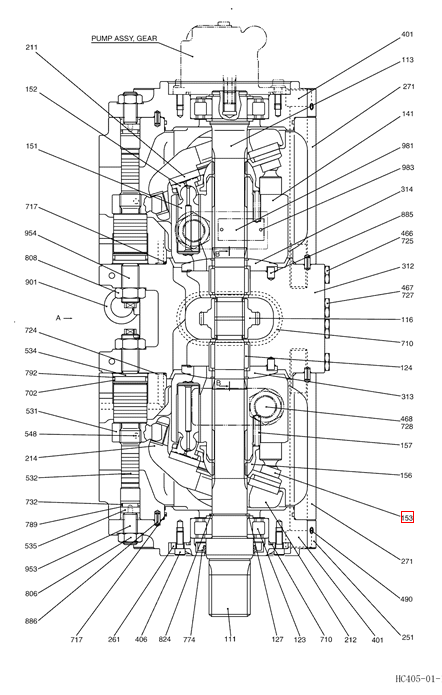

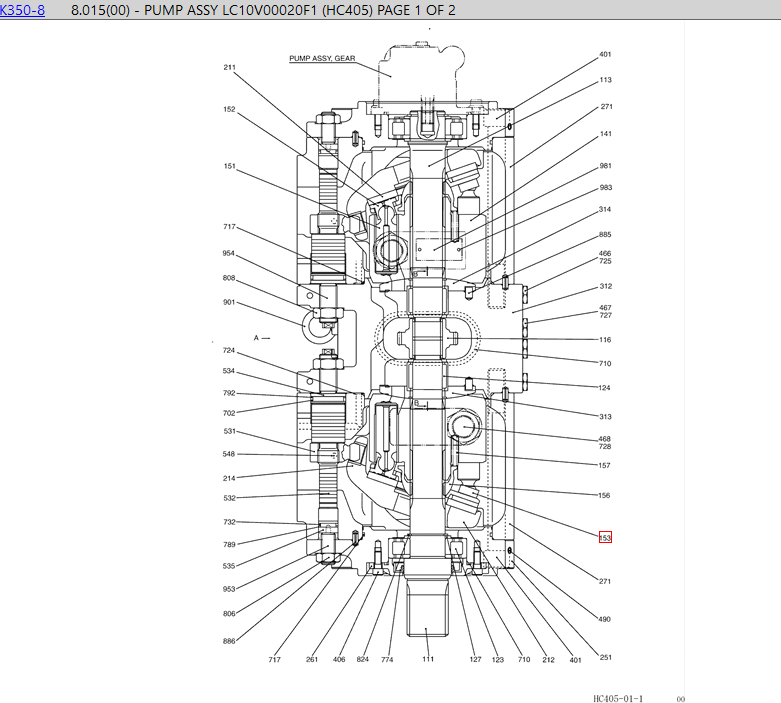

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| K | 1 | LC10V00010R600 | REPAIR KIT CONSISTS OF ITEM 212X1, 214X1 |
| K | 1 | LC10V00010R500 | REPAIR KIT CONSISTS OF ITEM 531X1, 548X1 |
| K | 1 | LC10V00020R200 | REPAIR KIT CONSISTS OF ITEM 141X1, 314X1 |
| K | 1 | LC10V00020R100 | REPAIR KIT CONSISTS OF ITEM 141X1, 313X1 |
| K | 1 | LC10V00010R100 | REPAIR KIT CONSISTS OF ITEM 151X9, 152X9 |
| 983 | 2 | 2437U407S983 | RIVET |
| 981 | 1 | NSS | NOT SERVICED SEPARATELY NAME PLATE |
| 954 | 2 | 2437U213S954 | SCREW |
| 886 | 4 | ZP26D06014 | PIN Roll -- OD 06 x 14mm Long |
| 901 | 2 | ZS91C01000 | BOLT Eye -- M10x1.50x18mm |
| 886 | 4 | ZP26D06014 | PIN Roll -- OD 06 x 14mm Long |
| 885 | 2 | 2441U723S885 | PIN |
| 824 | 2 | ZR16X04000 | RING Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 808 | 2 | ZN18C20012 | NUT M20x2.5mm |
| 806 | 2 | ZN18C16010 | NUT M16x2.0mm |
| 792 | 2 | ZD85G03500 | RING Back-Up -- ID 35 x OD 40 x Th 1.25mm |
| 789 | 2 | ZD85P01800 | RING Back-Up -- ID 18 x OD 22 x Th 1.25mm |
| 774 | 1 | LC10V00010S019 | GASKET OIL SEAL |
| 732 | 2 | YT10V00003S708 | O-RING |
| 728 | 4 | YN10V00020S015 | O-RING O-RING |
| 727 | 3 | YN10V01001S727 | GASKET |
| 725 | 7 | YT10V00003S710 | O-RING |
| 724 | 16 | YX10V00003S015 | O-RING |
| 717 | 4 | YN10V00020S012 | O-RING O-RING |
| 710 | 2 | YX10V00003S012 | O-RING |
| 702 | 2 | YN10V00003S702 | GASKET |
| 548 | 2 | NSS | NOT SERVICED SEPARATELY PIN,FEEDBACK |
| 546 | 2 | YN10V00043S546 | SPACER |
| 535 | 2 | 2437U213S535 | STOP |
| 534 | 2 | 2437U213S534 | STOP |
| 532 | 2 | LC10V00010S532 | PISTON |
| 531 | 2 | NSS | NOT SERVICED SEPARATELY PIN |
| 490 | 32 | 2441U722S490 | PLUG 1/16" NPTF |
| 468 | 4 | 2441U436S469 | PLUG |
| 467 | 2 | 2441U549S464 | PLUG |
| 466 | 2 | 2441U667S466 | PLUG 1/4" PF |
| 407 | 3 | ZS23C06055 | SCREW M06x1.0x55mm |
| 406 | 4 | ZS23C08020 | SCREW M08x1.25x20mm |
| 401 | 8 | 2437U213S401 | SCREW |
| 325 | 1 | YN10V00043S325 | COVER |
| 314 | 1 | NSS | NOT SERVICED SEPARATELY PLATE,VALVE |
| 313 | 1 | NSS | NOT SERVICED SEPARATELY PLATE,VALVE |
| 312 | 1 | LC10V00010S312 | BLOCK VALVE |
| 271 | 2 | YN10V00043S271 | BOX CASE |
| 261 | 1 | LC10V00010S261 | COVER COVER,SEAL |
| 251 | 2 | LC10V00010S018 | SUPPORT SUPPORT |
| 214 | 2 | NSS | NOT SERVICED SEPARATELY BUSHING |
| 212 | 2 | NSS | NOT SERVICED SEPARATELY PLATE |
| 211 | 2 | 2441U242S211 | PLATE |
| 157 | 18 | LC10V00010S157 | SPRING SPRING |
| 156 | 2 | YN10V00005S156 | BUSHING |
| 153 | 2 | LC10V00010S153 | PLATE |
| 152 | 18 | NSS | NOT SERVICED SEPARATELY SHOE |
| 151 | 18 | NSS | NOT SERVICED SEPARATELY PISTON |
| 141 | 2 | NSS | NOT SERVICED SEPARATELY BLOCK,CYLINDER |
| 127 | 3 | 2441U723S127 | SPACER |
| 124 | 2 | LC10V00010S124 | BEARING BEARING,NEEDLE |
| 123 | 2 | LC10V00002S123 | BEARING |
| 116 | 1 | LC10V00010S116 | GEAR GEAR |
| 113 | 1 | LC10V00010S113 | SHAFT SHAFT (R) |
| 111 | 1 | LC10V00010S111 | SHAFT SHAFT (F) |
