LS15V00020F1 LS15V00020F3 GM85VA Final Drive SK460-8 SK480-8 SK485LC-9 SK430-8 Hydraulic Drive Motor

SK460-8 SK480-8 SK485LC-9 GM85VA Final Drive LS15V00020F1 LS15V00020F2 LS15V00020F3

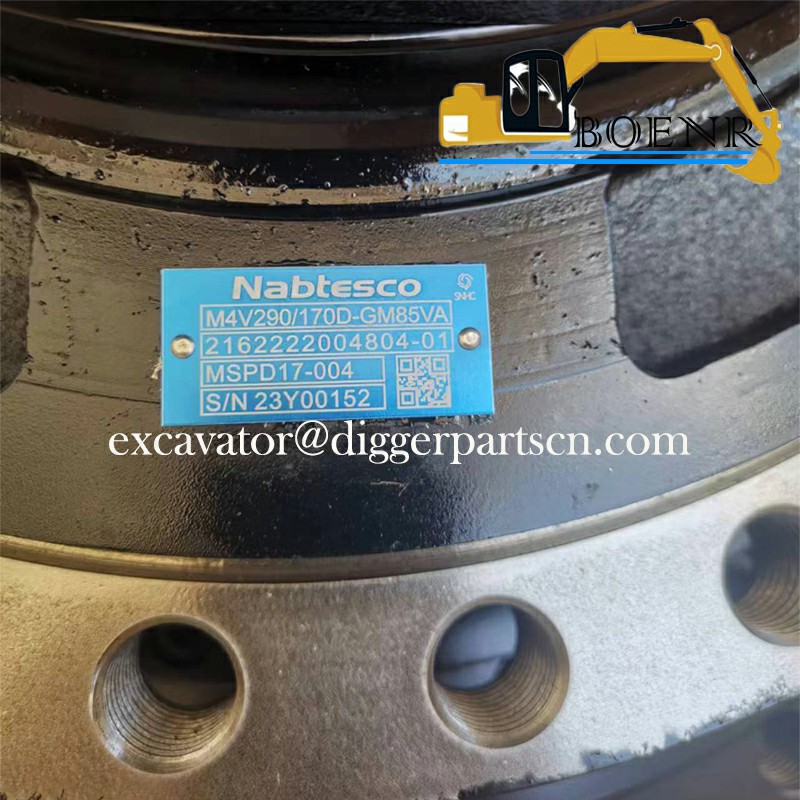

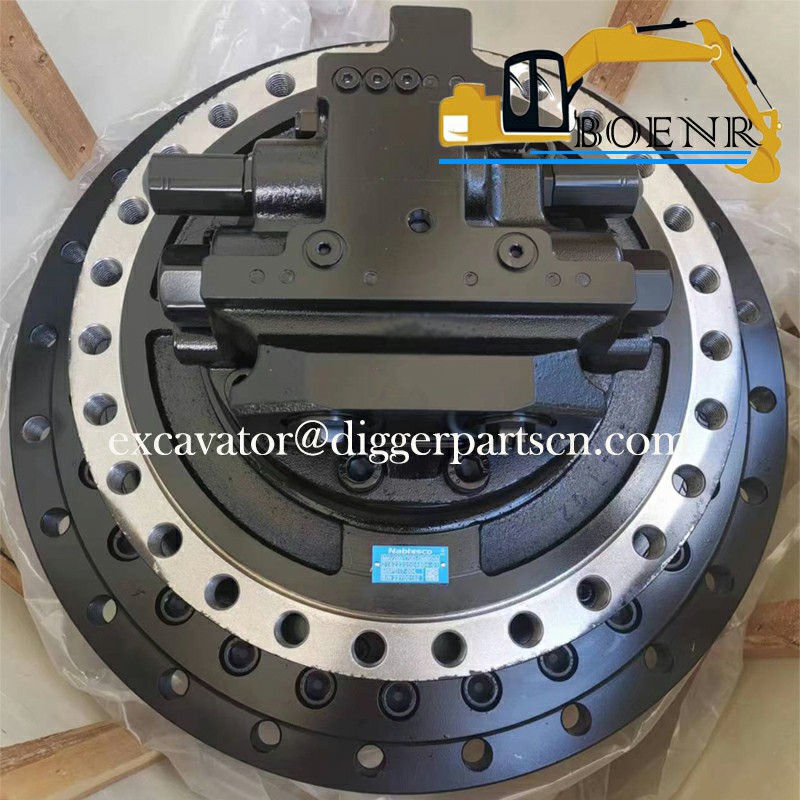

Part Name	Final Drive	Part Number	LS15V00020F1 LS15V00020F2 LS15V00020F3 M85VA
Brand	Kobelco、Nabtesco、KOBEKI	Applicable Model	SK480-8 SK485-8 SK485LC-9 SK430-8

Weight: 686KG

Parts Catalog

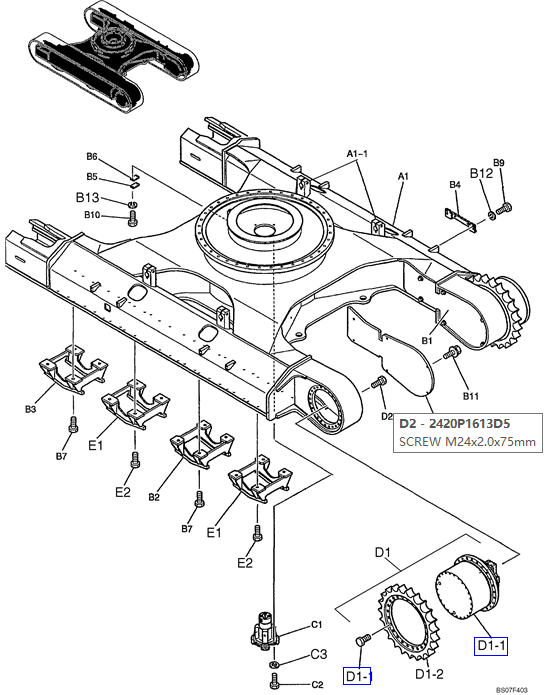

ITEM	QTY	PART NUMBER	PART NAME
E2	16	2420P1613D3	SCREW M24x2.0x60mm
E1	4	LS63D00001P1	GUIDE
			Lower Group, LS01F00015F1, Incls. Refs. E1 & E2
D2	54	2420P1613D5	SCREW M24x2.0x75mm
D1-3	24	2420P1613D2	SCREW M24x2.0x70mm
D1-2	1	LS51D01001P1	SPROCKET
D1-1	1	LS15V00020F1	MOTOR Propel Assembly, See Figure 08-03
D1	2	LS53D00006F1	Propel Motor Assembly, Incls. Refs. D1-1 - D1-3
			Propel Motor Installation, LS53D00005F1, Incls. Refs. D1 & D2
C3	1	ZW16P16000	WASHER ID 17 x OD 30 x Th 3.0mm
C2	4	ZS18C16040	SCREW M16x2.0x40mm
C1	1	LS55V00008F1	UNIVERSAL JOINT Swivel Joint Assembly, See Figure 08-39
			Swivel Joint Installation, LS19H00006F1, Incls. Refs. C1 - C3
B13	2	ZW26X10000	LOCK WASHER ID 10 x OD 18 x Th 2.5mm
B12	16	ZW26X16000	LOCK WASHER ID 16 x OD 28 x Th 4.0mm
B11	16	ZM73C12025	BOLT M12x1.75x25mm (Incls. Washer)
B10	2	ZS18C10016	SCREW M10x1.50x16mm
B9	16	ZS18C16040	SCREW M16x2.0x40mm
B7	16	2420P1613D3	SCREW M24x2.0x60mm
B6	1	2418T12274	PACKING 90x50x Th 05mm -- Rubber
B5	1	2422T556	PLATE 90x50x Th 06mm
B4	4	LS41C00002P1	STEP
B3	2	LS63D00002P1	GUIDE Track
B2	2	LS63D00001P1	GUIDE Track
B1	2	LS01F01069P1	COVER
			Lower Group, LS01F00013F1, Incls. Refs. B1 - B13
A1-1	4	LS07F01205P1	SUPPORT
A1	1	LS02F00029P1	Lower Frame
			Lower Frame Assembly, LS02F00037F1
