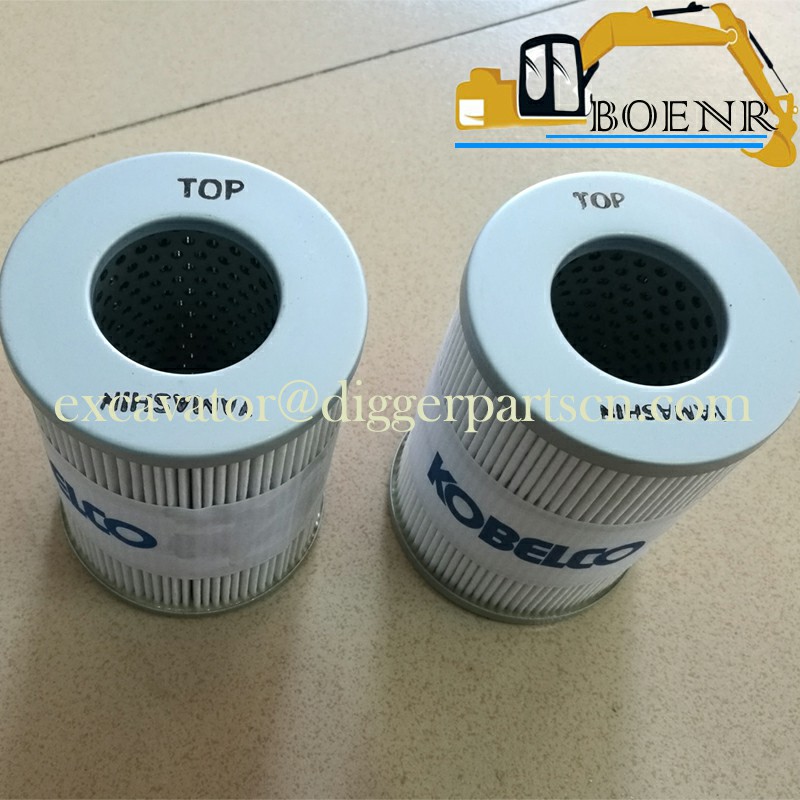

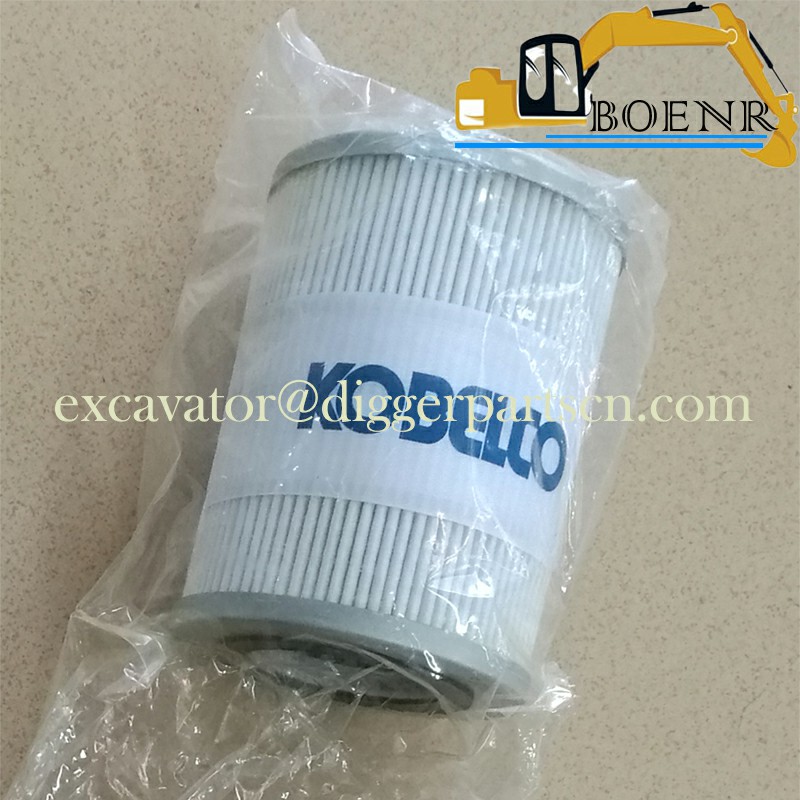

YR52V01004R300 YR52V01002P2 Hydraulic Oil Filter For SK75-8 SK70SR SK80SC SK55SR
SK75-8 SK70SR SK80SC SK55SR Hydraulic Oil Filter YR52V01004R300 YR52V01002P2
| Part Name | Filter | Part Number | YR52V01004R300 YR52V01002P2 |
| Brand | Kobeki、Kobelco | Applicable Model | SK75-8 SK70SR SK80SC SK55SR |
Weight:1.2KG

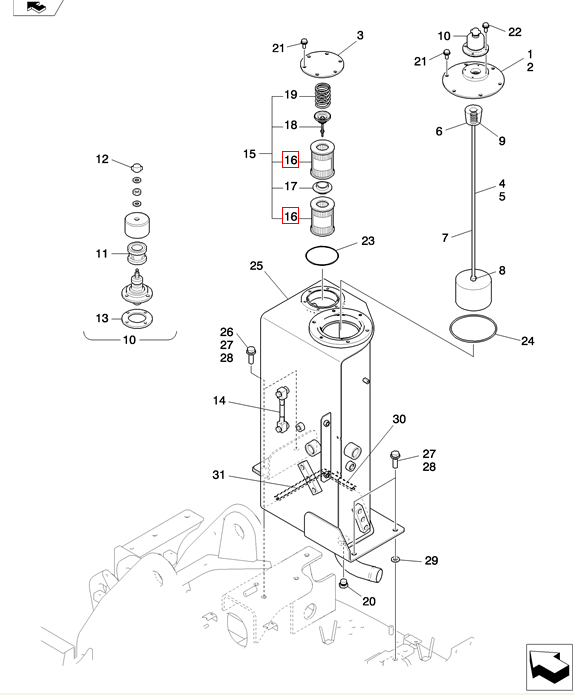

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 1 | YR52V01004R300 | REPAIR KIT Consists Of Item: 17(1), 21(1), 16(2) | |
| 31 | 1 | LS21C01093DM | GASKET Trim |
| 30 | 1 | LS21C01093DH | TRIM |
| 29 | 3 | LE33H01017D1 | SHIM (1.0) |
| 28 | 4 | ZW16H16000 | WASHER |
| 27 | 4 | ZS18C16050 | SCREW Cap |
| 26 | 1 | YT33H00036F1 | TANK Hyd. |
| 25 | 1 | YT33H00046P1 | TANK |
| 24 | 1 | ZD11G15500 | O-RING |
| 23 | 1 | ZD11G11000 | O-RING |
| 22 | 4 | YN33H01304P1 | BOLT Sems |
| 21 | 12 | ZM73C10025 | BOLT Sems |
| 20 | 1 | ZE72X08000 | PLUG |
| 19 | 1 | YR52V01001S004 | SPRING |
| 18 | 1 | YR21V00001P1 | VALVE Check |
| 17 | 1 | YR52V01001S002 | RUBBER JOINT |
| 16 | 2 | YR52V01002P2 | ELEMENT Filter |
| 15 | 1 | YR52V01004F1 | ELEMENT Filter |
| 14 | 1 | YN58S00009F1 | GAUGE Level, Oil |
| 13 | 1 | 2446U260S8 | PACKING |
| 12 | 1 | 2446U260S10 | NUT |
| 11 | 1 | YN57V00004S002 | ELEMENT Filter |
| 10 | 1 | YN57V00004F1 | BREATHER Assy. |
| 9 | 1 | 2446R110S6 | SPRING |
| 8 | 2 | ZN11C10008 | NUT |
| 7 | 1 | YT50V00003S003 | BOLT |
| 6 | 1 | 2446R110S2 | HOLDER |
| 5 | 1 | YT50V00003S001 | STRAINER ELEMENT Suction |
| 4 | 1 | YT50V00003F1 | STRAINER ELEMENT Suction |
| 3 | 1 | YT33H01101P1 | COVER |
| 2 | 1 | YT33H01100P1 | COVER |
| 1 | 1 | YT33H00045F1 | Hyd. |
| AR | YT33H00044F1 | Hyd. |
