YN57V00005F1 Breather Assembly For SK200-8 SK210-8 SK210-9 SK250-8 SK260-8 SK350-8 SK350-9 SK380-8

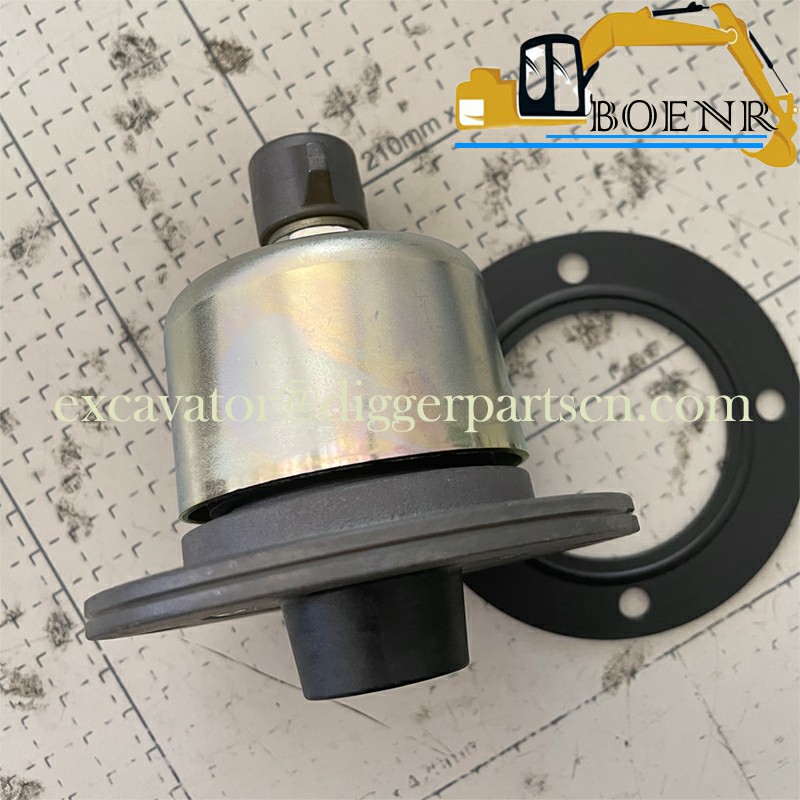

SK200-8 SK210-8 SK210-9 SK250-8 SK260-8 SK350-8 SK350-9 SK380-8 Breather Assembly YN57V00005F1
| Part Name | Breather | Part Number | YN57V00005F1 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-8 SK210-8 SK210-9 SK250-8 SK260-8 SK350-8 SK350-9 SK380-8 |
Weight:0.3KG

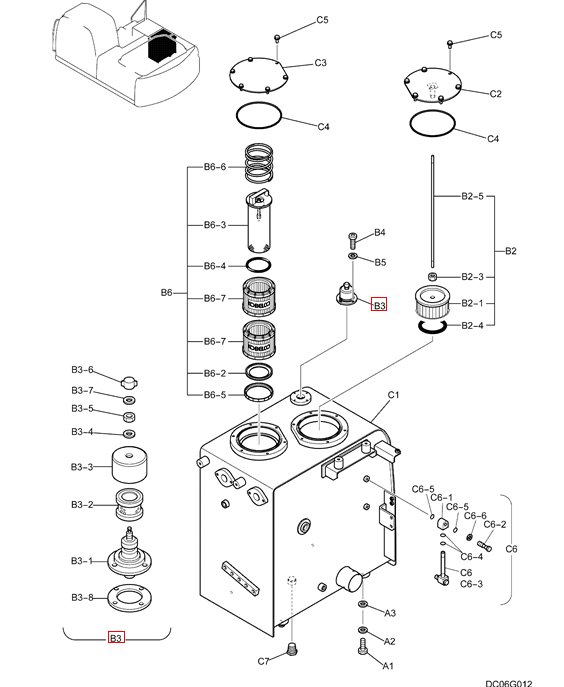

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| K | 1 | YN52V01008R600 | ELEMENT KIT Contains Items (B6-4)X1, (B6-5)X1,(B6-7)X2, (C4)X1 |
| 1 | ZD12P01800 | O-RING (Part of ZE72X08000), ID 17.80 ± 0.21 x OD 22mm, Not Shown | |
| C7 | 1 | ZE72X08000 | PLUG 1/2" PF, (Incls. O-Ring ZD12P01800) |
| C6-6 | 2 | NA | NOT SERVICED Washer |
| C6-5 | 4 | NA | NOT SERVICED O-Ring |
| C6-4 | 4 | NA | NOT SERVICED O-Ring |
| C6-3 | 1 | NA | NOT SERVICED Gauge |
| C6-2 | 2 | NA | NOT SERVICED Capscrew M10x1.50x34mm |
| C6-1 | 2 | NA | NOT SERVICED Block |
| C6 | 1 | YN58S00009F1 | GAUGE Incls. Refs. C6-1 - C6-6 |
| C5 | 12 | ZM73C10025 | BOLT M10x1.50x25mm (Incls. Washer) |
| C4 | 2 | ZD11G19000 | O-RING ID 189.30 ± 1.47 x OD 200mm |
| C3 | 1 | YN33H01259P1 | COVER |
| C2 | 1 | YN33H01283P1 | COVER |
| C1 | 1 | YN33H00083P1 | TANK |
| YN33H00081F1 | TANK Assembly | ||
| B6-7 | 2 | YN52V01011P2 | ELEMENT Filter |
| B6-6 | 1 | LC33H01009P1 | SPRING |
| B6-5 | 1 | YN52V01008S005 | PACKING |
| B6-4 | 1 | ZD11G09000 | O-RING ID 89.40 ± 0.77 x OD 95mm |
| B6-3 | 1 | YN21V00015P1 | CHECK VALVE |
| B6-2 | 1 | YN52V01008S002 | PLATE |
| B6 | 1 | YN52V01016F1 | FILTER ASSY Filter, Incls. Refs. B6-2 - B6-7 |
| B5 | 4 | ZW26K06000 | LOCK WASHER ID 06 x OD 11 x Th 1.5mm |
| B4 | 4 | ZS28C06016 | SCREW M06x1.0x16mm |
| B3-8 | 1 | 2446U260S8 | PACKING |
| B3-7 | 1 | NA | NOT SERVICED Seal |
| B3-6 | 1 | 2446U260S10 | NUT M12x1.25mm |
| B3-5 | 1 | NA | NOT SERVICED Nut |
| B3-4 | 1 | NA | NOT SERVICED Seal |
| B3-3 | 1 | NA | NOT SERVICED Cover |
| B3-2 | 1 | YN57V00005S002 | ELEMENT Filter |
| B3-1 | 1 | NA | NOT SERVICED Body |
| B3 | 1 | YN57V00005F1 | BREATHER Assembly, Incls. Refs. B3-1 - B3-8 |
| 1 | 2446R110S2 | HOLDER Not Shown | |
| 1 | 2446R110S6 | SPRING Not Shown | |
| B2-5 | 1 | LS50V00007S003 | BOLT M10x1.50x585mm |
| B2-4 | 1 | NSS | NOT SERVICED SEPARATELY |
| B2-3 | 2 | ZN11C10008 | NUT M10x1.50mm |
| B2-1 | 1 | YN50V00002S001 | STRAINER ASSY. |
| B2 | 1 | YN50V00025F1 | STRAINER ELEMENT Incls. Refs. B2-1 - B2-5 |
| Hydraulic Tank Assembly, YN33H00080F1, Incls. Refs. B2-B7 | |||
| A3 | 3 | LE33H01017D1 | SHIM (1.0) |
| A2 | 4 | ZW13H16000 | WASHER ID 17 x OD 32 x Th 4.5mm |
| A1 | 4 | ZS13C16040 | SCREW M16x2.0x40mm |
| Hydraulic Tank Installation, YN33H00058F1, Incls. Refs. A1-A3 |
