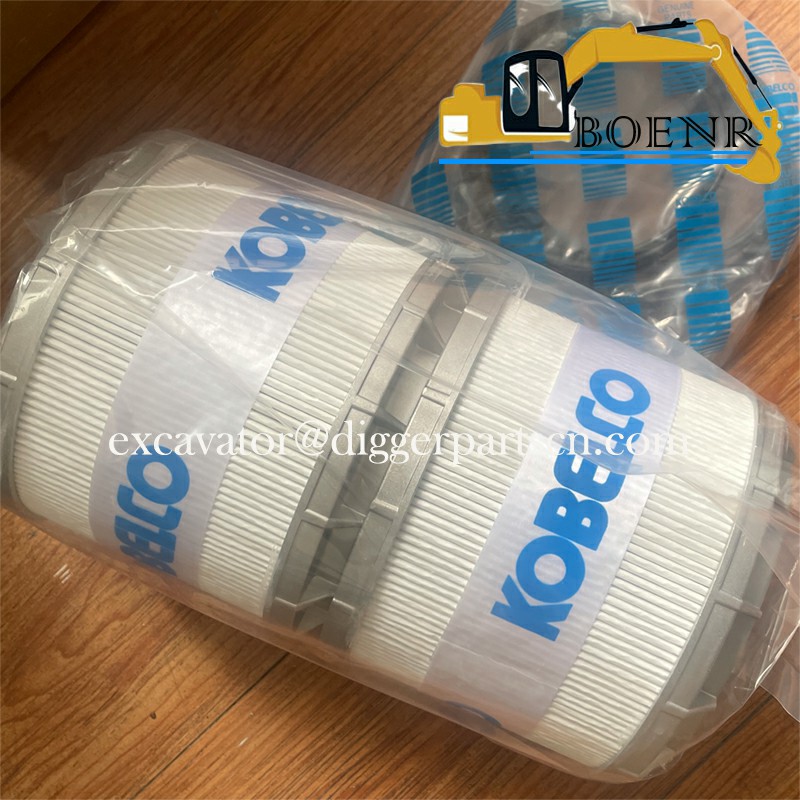

YN52V01016R610 YN52V01011P2 YN52V01010P1 Hydraulic Filter SK200-8 SK210-8 SK250-8 SK260-8
SK200-8 SK210-8 SK250-8 SK260-8 Hydraulic Filter YN52V01016R610 YN52V01011P2 YN52V01010P1 Element Filter HYD
| Part Name | Hydraulic Filter | Part Number | YN52V01016R610 YN52V01011P2 YN52V01010P1 |
| Brand | Kobelco、KOBEKI | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 |
Weight: 5KG

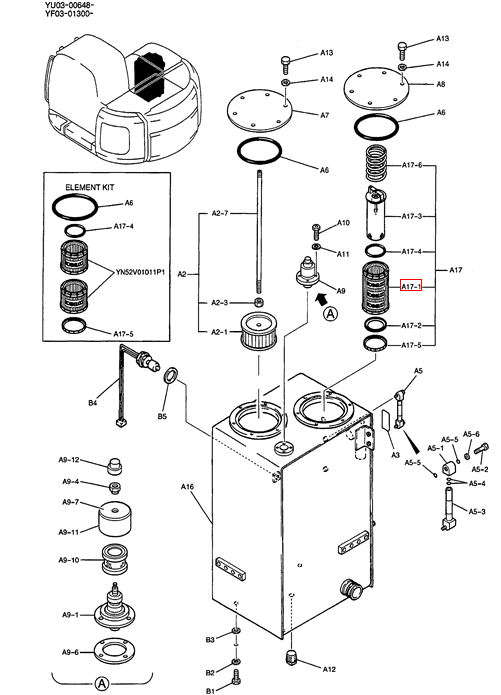

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| B5 | 1 | YN33H01052P1 | SEAL |
| B4 | 1 | YN52S00023P1 | SENSOR ,LEVEL |
| B3 | 3 | LE33H01017D1 | SHIM (1.0) |
| B2 | 4 | ZW16H16000 | WASHER ID 17 x OD 32 x Th 4.5mm |
| B1 | 4 | ZS18C16040 | SCREW M16x2.0x40mm |
| AR | YN33H00019F1 | TANK INSTAL, HYD | |
| AR | YN52V01008R100 | ELEMENT ELEMENT KIT (CONSISTS OF ITEM A6, A17-4, A15-5 & YN52N01011P1 X2) | |
| A17-6 | 1 | LC33H01009P1 | SPRING |
| A17-5 | 1 | YN52V01008S005 | PACKING |
| A17-4 | 1 | ZD11G09000 | O-RING ID 89.40 ± 0.77 x OD 95mm |
| A17-3 | 1 | YN21V00015P1 | CHECK VALVE |
| A17-2 | 1 | YN52V01008S002 | PLATE |
| A17-1 | 1 | YN52V01010P1 | ENGINE OIL FILTER ELEMENT, FILTER |
| A17 | 1 | YN52V01008F1 | HYDRAULIC OIL FILTER ELEMENT, FILTER |
| A16 | 1 | YF33H00005P1 | HYDRAULIC OIL RESERVOIR TANK |
| A14 | 12 | ZW16X10000 | WASHER ID 10 x OD 21 x Th 2.0mm |
| A13 | 12 | ZS18C10025 | SCREW M10x1.50x25mm |
| A12 | 1 | ZE72X08000 | PLUG 1/2" PF, (Incls. O-Ring ZD12P01800) |
| A11 | 4 | ZW26K06000 | LOCK WASHER ID 06 x OD 11 x Th 1.5mm |
| A10 | 4 | ZS28C06016 | SCREW M06x1.0x16mm |
| A9-12 | 1 | YN57V00002S012 | CAP |
| A9-11 | 1 | YN57V00002S011 | COVER |
| A9-10 | 1 | YN57V00002S010 | ELEMENT |
| A9-7 | 1 | YN57V00002S007 | IDENTITY PLATE Plate, Caution |
| A9-6 | 1 | 2446U260S8 | PACKING |
| A9-4 | 1 | 2446U260S5 | NUT |
| A9-1 | 1 | 2446U260S1 | BODY |
| A9 | 1 | YN57V00002F4 | BREATHER ASSY. |
| A8 | 1 | YF33H01010P1 | GUARD COVER |
| A7 | 1 | YF33H01011P1 | GUARD COVER |
| A6 | 2 | ZD11G20000 | O-RING ID 199.30 ± 1.55 x OD 210mm |
| A5-6 | 2 | NSS | NOT SERVICED SEPARATELY WASHER |
| A5-5 | 4 | NSS | NOT SERVICED SEPARATELY O-RING |
| A5-4 | 4 | NSS | NOT SERVICED SEPARATELY O-RING |
| A5-3 | 1 | NSS | NOT SERVICED SEPARATELY GAUGE |
| A5-2 | 2 | NSS | NOT SERVICED SEPARATELY Capscrew M10x1.50x34mm |
| A5-1 | 2 | NSS | NOT SERVICED SEPARATELY BLOCK |
| A5 | 1 | YN58S00009F1 | GAUGE LEVEL |
| A3 | 1 | YT33H01028P1 | LABEL |
| A2-7 | 1 | YW50V00004S007 | BOLT |
| A2-3 | 1 | ZN11C10008 | NUT M10x1.50mm |
| A2-1 | 1 | YN50V00002S001 | STRAINER ASSY. |
| A2 | 1 | YW50V00004F4 | FILTER STRAINER STRAINER ASSY, SUCTION |
| YF33H00002F3 | TANK ASSY, HYD |
