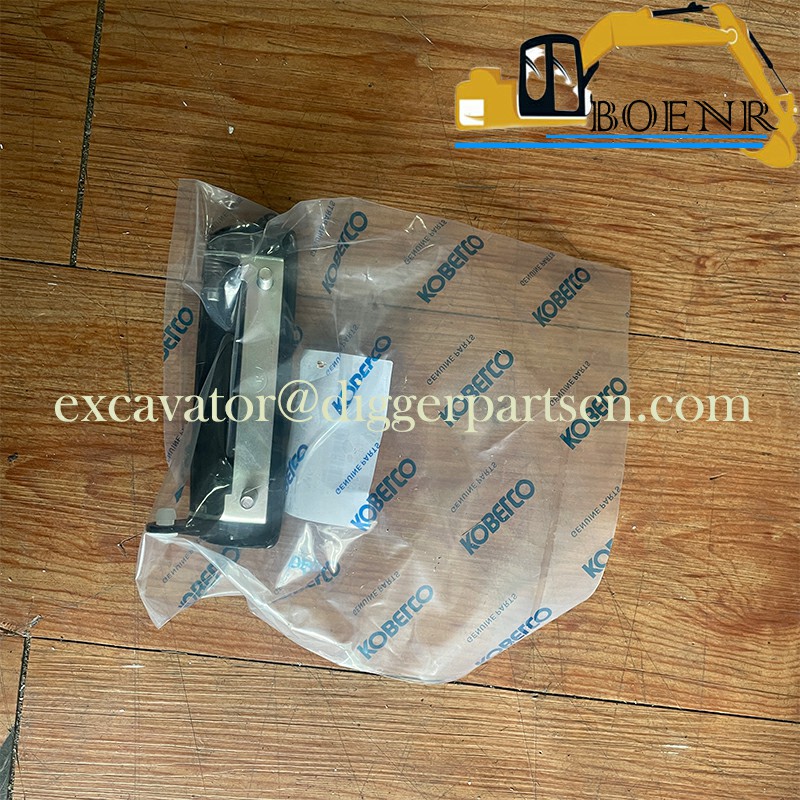

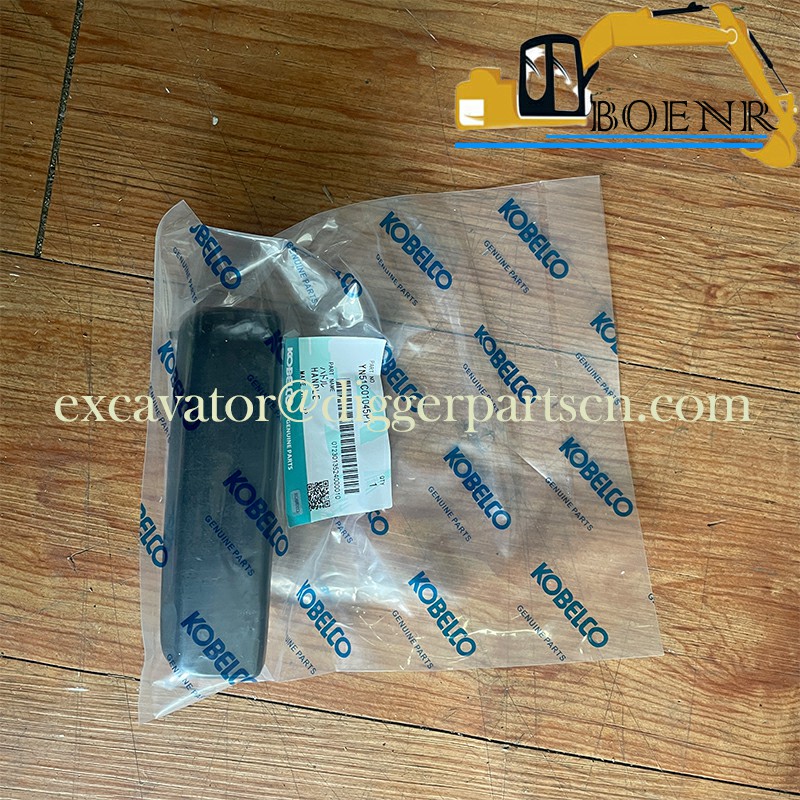

YN51C01045P1 Door Handle For SK200-8 SK210-8 Sk250-8 SK260-8 SK330-8 SK350-8 SK380-8 SK460-8 SK480-8
SK200-8 SK210-8 Sk250-8 SK260-8 SK330-8 SK350-8 SK380-8 SK460-8 SK480-8 Door Handle YN51C01045P1
| Part Name | Door Handle | Part Number | YN51C01045P1 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-8 SK210-8 Sk250-8 SK260-8 SK330-8 SK350-8 SK380-8 SK460-8 SK480-8 |
Weight:0.2KG

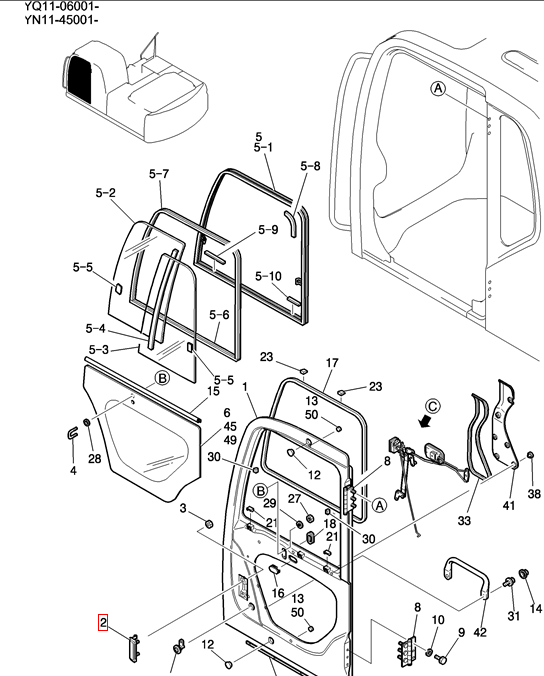

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 50 | 2 | YT02C01567D4 | PLATE (Grayish Black) |
| 49 | 1 | YT02C01515D3 | TRIM PANEL |
| 48 | 1 | YR09T00003P1 | PAINT (25g) |
| 47 | 1 | YR09T00002P1 | PAINT (25g) |
| 46 | 1 | YR01T01005P1 | ADHESIVE |
| 45 | 1 | YT02C01514D4 | SEAL |
| 44 | 3 | ZW16X08000 | WASHER |
| 43 | 1 | YN51C01028P1 | HANDLE |
| 42 | 1 | YN51C01046P1 | HANDLE |
| 41 | 1 | YN51C01042P1 | COVER |
| 40 | 3 | YN51C01052P1 | WASHER |
| 39 | 3 | YT02C01241D1 | BOLT |
| 38 | 6 | YT02C01296P1 | RIVET |
| 37 | 1 | YT51C01018P1 | HOLDER |
| 36 | 1 | YN51C01019P1 | PLATE |
| 35-10 | 1 | YN51C01040P1 | HOLDER |
| 35-9 | 1 | YT51C01016P1 | PIN |
| 35-8 | 3 | YN51C01032P1 | HOLDER |
| 35-7 | 3 | YT51C01017P1 | PIN |
| 35-6 | 1 | YN51C01094P1 | ROD |
| 35-5 | 1 | YN51C01018P1 | PLATE |
| 35-4 | 1 | YN51C01013P1 | ROD |
| 35-3 | 1 | YN51C01014P1 | ROD |
| 35-2 | 1 | YN51C01024P1 | LINK |
| 35-1 | 1 | YT51C01027P1 | LOCK |
| 35 | 1 | YN51C01095F1 | LINK ASSY. |
| 34 | 3 | YT02C01230P1 | WASHER |
| 33 | 1 | YT02C01295D2 | RUBBER |
| 32 | 1 | YN17M01033D3 | SCREW Machine |
| 31 | 2 | ZM27C10025 | BOLT Sems |
| 30 | 2 | YN51C01031P1 | RUBBER SLEEVE |
| 29 | 2 | ZW26X08000 | WASHER Lock |
| 28 | 2 | YT51C01068P1 | WASHER |
| 27 | 2 | ZN18C08007 | NUT |
| 26 | 1 | YN51C01015P1 | ROD |
| 25 | 1 | YN51C01016P1 | ROD |
| 24 | 3 | YN51C01040P1 | HOLDER |
| 23 | 2 | YN51C01053P1 | RUBBER |
| 22 | 2 | YN51C01054P1 | RUBBER SLEEVE |
| 21 | 2 | YN51C01030P1 | RUBBER |
| 20 | 3 | ZS41C06016 | SCREW Machine |
| 19 | 1 | YT51C01029P1 | CLIP |
| 18 | 1 | YT51C01039P1 | GROMMET |
| 17 | 1 | YN51C01051P2 | RUBBER BAND |
| 16 | 1 | YT02C01246P1 | PLATE Rubber |
| 15 | 1 | YN51C01055P1 | TRIM PANEL |
| 14 | 2 | YT02C01233P1 | CAP Rubber |
| 13 | 2 | YT02C01261D4 | PLATE (neutral Gray 971) |
| 12 | 2 | YT51C01065D1 | PLATE |
| 11 | 1 | YN51C01023P1 | SEAL |
| 10 | 6 | ZW11X10000 | WASHER |
| 9 | 6 | ZS13C10025 | SCREW Cap |
| 8 | 2 | YN02C01635P1 | HINGE |
| 1 | YN51C01099P2 | LOCK Assy, ASN YN11-45512 | |
| 1 | YN51C01099P2 | LOCK Assy, ASN YQ11-06042 | |
| 7 | 1 | YN51C01099P1 | LOCK Assy, BTW YN11-45001 & YN11-45511 |
| 7 | 1 | YN51C01099P1 | LOCK Assy, BTW YQ11-06001 & YQ11-06041 |
| 6 | 1 | YN51C01096P1 | GLASS |
| 5-10 | 1 | YN02C02034S010 | STOP |
| 5-9 | 1 | YN02C02034S009 | STOP |
| 5-8 | 1 | YN02C02034S008 | STOP |
| 5-7 | 1 | YN02C02034S007 | SEAL |
| 5-6 | 1 | YN02C02034S006 | SEAL |
| 5-5 | 2 | YN02C02034S005 | LOCK Assy |
| 5-4 | 1 | YN02C02034S004 | SEAL |
| 5-3 | 1 | YN02C02036P1 | GLASS |
| 5-2 | 1 | YN02C02035P1 | GLASS |
| 5-1 | 1 | YN02C02034S001 | FRAME ASSY |
| 5 | 1 | YN02C02034F1 | CAB GLASS Sash Assy |
| 4 | 1 | YN51C01043P1 | HOOK |
| 3 | 2 | HN16C06000G1 | NUT |
| 2 | 1 | YN51C01045P1 | HANDLE |
| 1 | 1 | YN51C01001P1 | PANEL Assy |
| AR | YN51C00009F1%KL | LH CAB DOOR Cab (grayish Black) |
