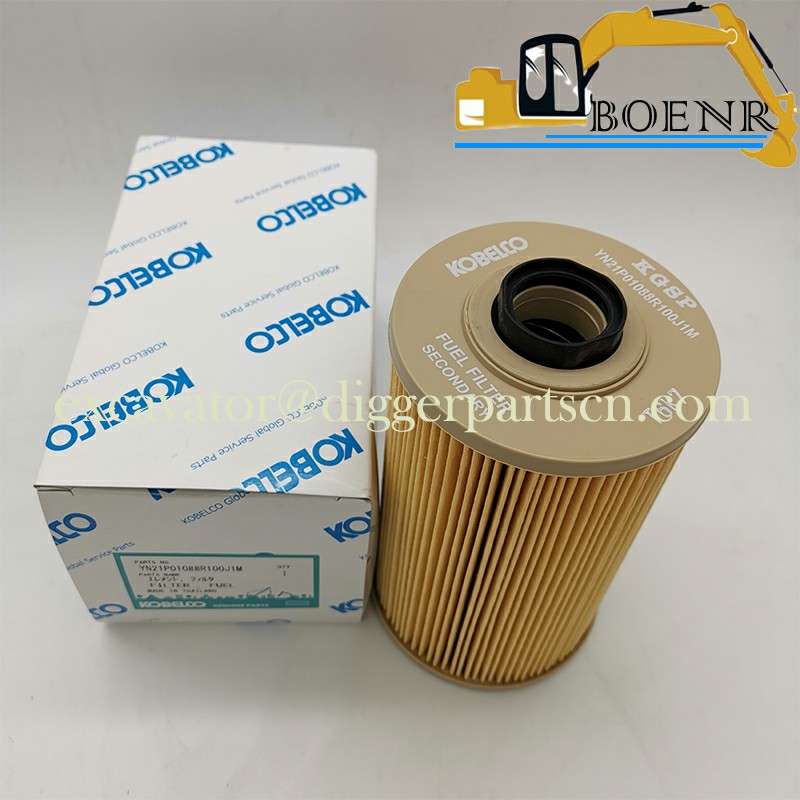

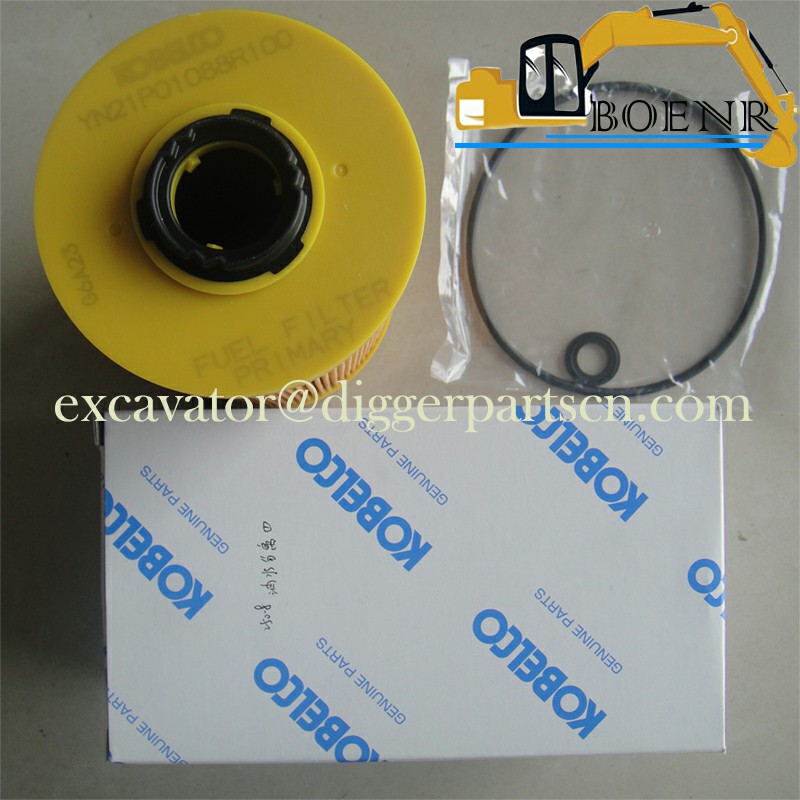

YN21P01088R100 Fuel Filter For Kobelco SK200-8 SK210-8 SK250-8 SK350-8 SK380-8 SK485-9 SK260-8
SK200-8 SK210-8 SK250-8 SK350-8 SK380-8 SK485-9 Fuel Filter YN21P01088R100
| Part Name | Fuel Filter | Part Number | YN21P01088R100 |
| Brand | Kobelco、Kobeki | Applicable Model | SK200-8 SK210-8 SK250-8 SK350-8 SK380-8 SK485-9 |
Weight: 0.6KG

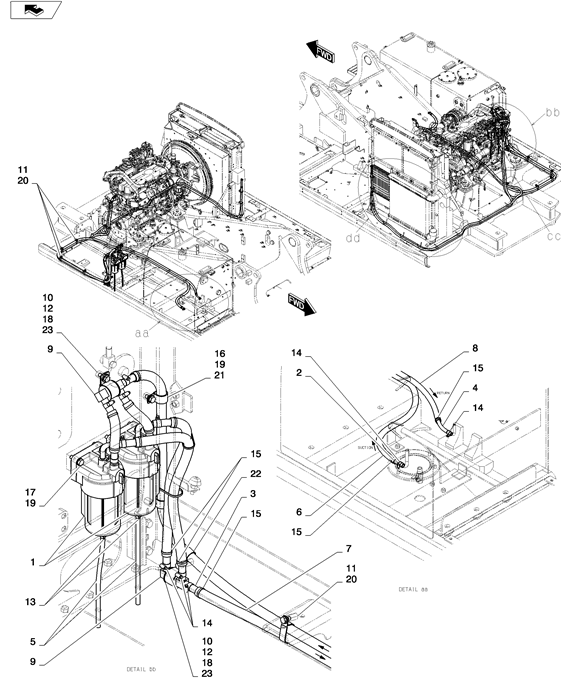

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 23 | 2 | ZS18C10025 | SCREW Cap |
| 22 | 1 | ZC46X29011 | CLIP |
| 21 | 2 | ZC45X29011 | CLIP |
| 20 | 5 | ZM73C10020 | BOLT Sems |
| 19 | 6 | ZW16P10000 | WASHER |
| 18 | 2 | ZW16H10000 | WASHER |
| 17 | 4 | ZS18C10035 | SCREW Cap |
| 16 | 2 | ZS18C10020 | SCREW Cap |
| 15 | 16 | PY01P01043D2 | CLIP |
| 14 | 16 | ZC16X01800 | CLIP |
| 13 | 2 | PH05P01088D6 | CLIP |
| 12 | 2 | ZC45X38014 | CLAMP |
| 11 | 5 | 2432R226D13 | CLIP |
| 10 | 2 | LS21P01022P1 | GROMMET |
| 9 | 2 | LS21P01026P1 | FITTING |
| 8 | 1 | HX81X19600DX | FLEXIBLE HOSE |
| 7 | 1 | HX81X22260DX | TUBE |
| 6 | 1 | HX81X22490DX | TUBE |
| 5 | 2 | HX11Y06032DX | HOSE |
| 4 | 1 | HX11F06625DX | FLEXIBLE HOSE |
| 3 | 1 | HX11F08270DX | HOSE |
| 2 | 1 | HX11F08500DX | HOSE |
| 1A | 1 | YN21P01088R100 | ELEMENT Element for Ref 1 Assembly, Includes O-ring |
| 1 | 2 | LS21P01028F1 | FUEL FILTER Fuel |
| Fuel Lines LS21P00015F1 |
