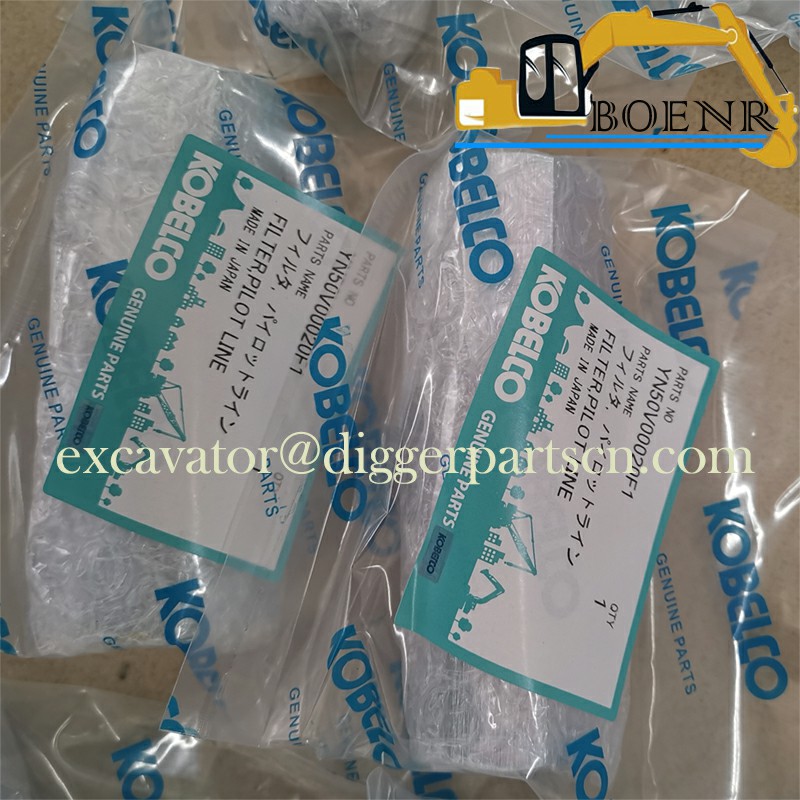

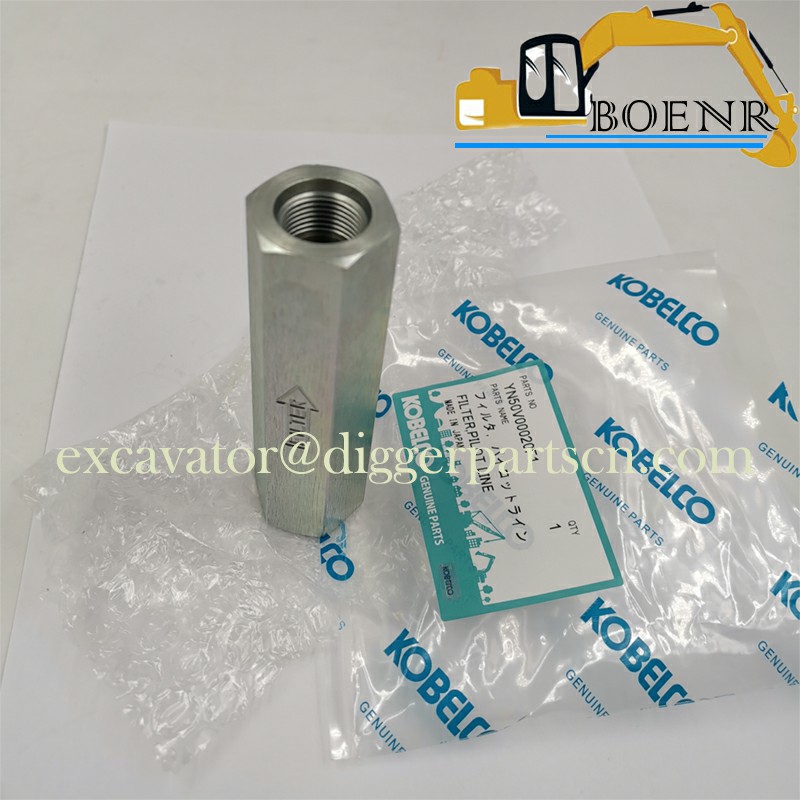

YN50V00020F1 pilot filter for SK200-8 SK210-8 SK210-9 SK260-9 SK250-8 SK330-8 SK350-8 SK485-9
SK200-8 SK210-8 SK210-9 SK260-9 SK250-8 SK330-8 SK350-8 SK485-9 pilot filter YN50V00020F1
| Part Name | pilot filter | Part Number | YN50V00020F1 |
| Brand | Kobelco, kobeki | Applicable Model | SK200-8 SK210-8 SK210-9 SK260-9 SK485-9 |
Weight: 0.3KG

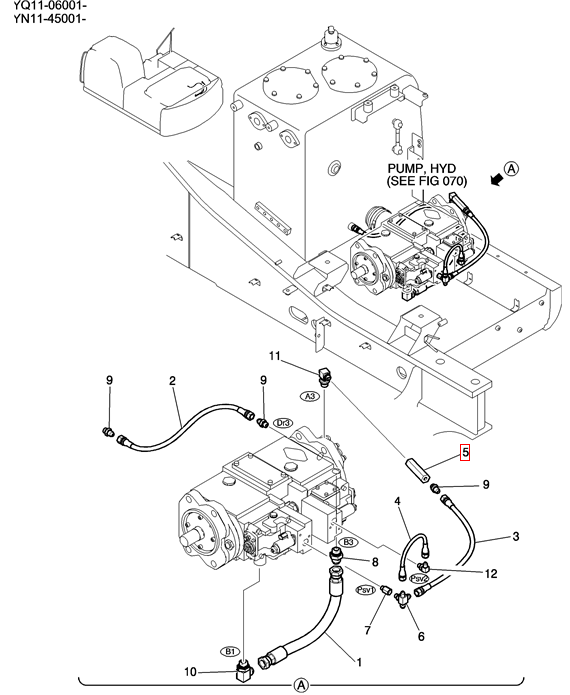

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 12 | 1 | HH35X04004G3 | ELBOW Connector |
| 11 | 1 | 2444Z2345 | ELBOW |
| 10 | 1 | ZH32X12000 | HYD CONNECTOR Elbow |
| 9 | 3 | ZH22X06000 | HYD CONNECTOR |
| 8 | 1 | ZH22X12000 | HYD CONNECTOR |
| 7 | 1 | HH25R04004G5 | HYD CONNECTOR |
| 6 | 1 | YN06H01044P1 | TEE |
| 5 | 1 | YN50V00020F1 | FILTER Filter, Inline |
| 4 | 1 | 2420R349D030 | HOSE 300.00 mm |
| 3 | 1 | 2420R537D050 | HOSE 500.00 mm |
| 2 | 1 | 2420R537D052 | HOSE |
| 1 | 1 | ZX22M12048 | HOSE |
| AR | YN06H00077F1 | Control, Pump |
