LS43H01377P1 Bucket Cylinder Oil Inlet Pipe for SK460-8 SK485-8 SK485-9
SK460-8 SK485-8 SK485-9 Bucket Cylinder Oil Inlet Pipe LS43H01377P1
| Part Name | Pipe | Part Number | LS43H01377P1 |
| Brand | Kobeki、Kobelco | Applicable Model | SK460-8 SK485-8 SK485-9 |
Weight:10.5KG

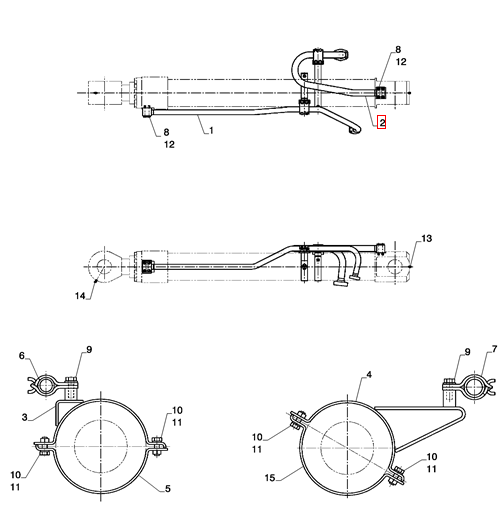

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 15 | 1 | LS43H01444P1 | BAND |
| 14 | 1 | ZG91V02000 | LUBE NIPPLE 67°x1/8" PT |
| 13 | 1 | ZG91S02000 | LUBE NIPPLE 1/8" PT -- Straight |
| 12 | 2 | ZD12P03400 | O-RING ID 33.70 ± 0.33 x OD 40mm |
| 11 | 4 | ZW26X10000 | LOCK WASHER ID 10 x OD 18 x Th 2.5mm |
| 10 | 4 | ZS18C10030 | SCREW M10x1.50x30mm |
| 9 | 4 | ZM73C12035 | BOLT M12x1.75x35mm (Incls. Washer) |
| 8 | 8 | ZS18C12070 | SCREW M12x1.75x70mm |
| 7 | 2 | YN42H02363P1 | CLAMP Ø23x65x52mm |
| 6 | 2 | YN42H02357P1 | CLAMP Ø18.5x65x52mm |
| 5 | 2 | LS43H01264P1 | BAND |
| 4 | 1 | LS43H01443P1 | BAND |
| 3 | 1 | LS43H01263P1 | BAND |
| 2 | 1 | LS43H01377P1 | TUBE U-Shape |
| 1 | 1 | LS43H01376P1 | TUBE 1441mm Long (56-47/64 in) |
| Bucket Cylinder Hydraulic Lines, LS43H00078F1, Incls. Refs. 1-14 |
