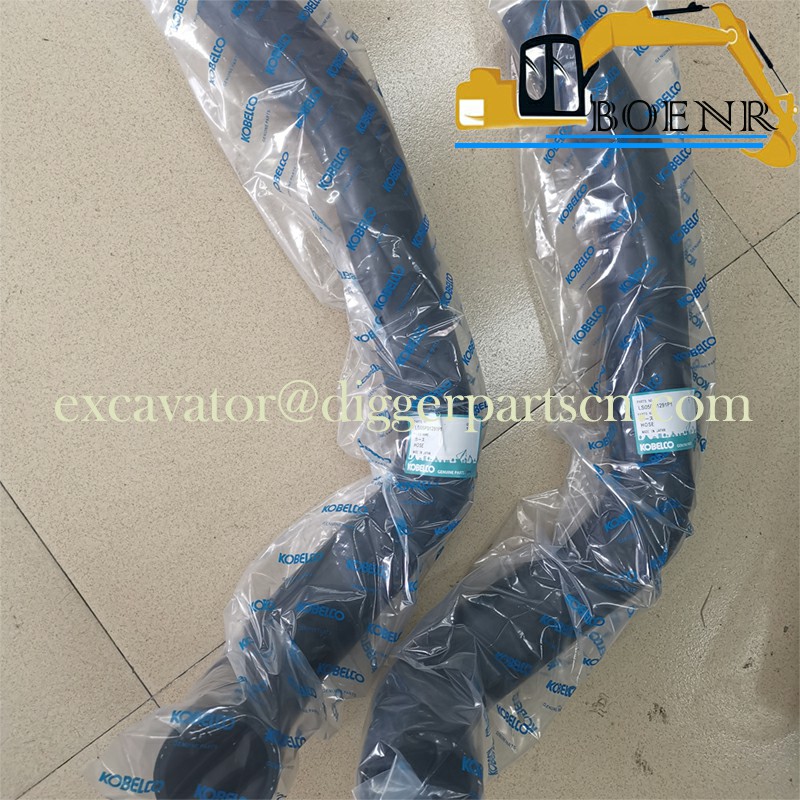

LS05P01291P1 Hose For SK460-8 SK480-8 SK485-8
SK460-8 SK480-8 SK485-8 Hose LS05P01291P1
| Part Name | Hose | Part Number | LS05P01291P1 |
| Brand | Kobelco Kobeki | Applicable Model | SK460-8 SK480-8 SK485-8 |
Weight: 1.8 kg

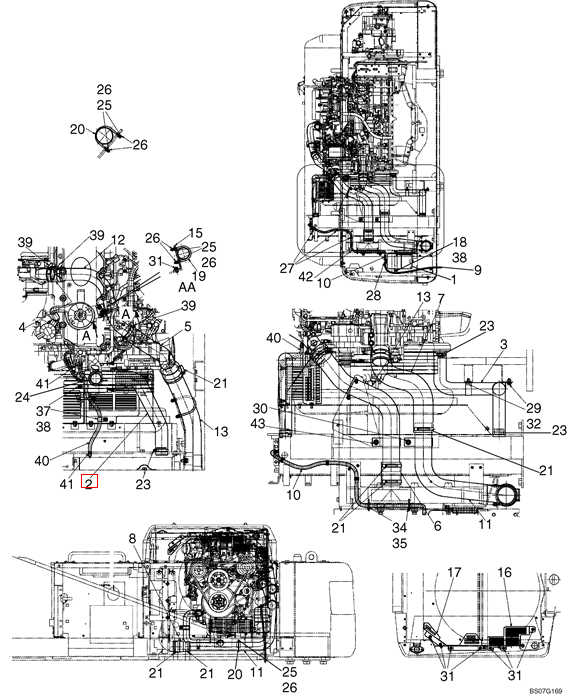

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 43 | 1 | ZM73C12025 | BOLT M12x1.75x25mm (Incls. Washer) |
| 42 | 1 | HX81X13120DX | TUBE ID 13.2 x OD 17.5 x 1200mm Long (47-1/4 in) |
| 39 | 3 | LS05P01413P1 | CLIP Min 70 x Max 92mm |
| 38 | 4 | ZM73C08020 | BOLT M08x1.25x20mm (Incls. Washer) |
| 37 | 2 | ZC46X16011 | CLIP Clamp, Single Line -- ID 16.5 x 49mm Long |
| 36 | 1 | ZC46X11009 | CLIP Clamp, Single Line -- ID 11 x 89mm Long |
| 35 | 2 | PY01P01043D3 | CLIP Wire Ties -- 188mm Long |
| 34 | 2 | YN13E01375P1 | CLIP Anchor Wire Ties |
| 33 | 1 | ZM73C08016 | BOLT M08x1.25x16mm (Incls. Washer) |
| 32 | 2 | ZM73C10025 | BOLT M10x1.50x25mm (Incls. Washer) |
| 31 | 9 | ZM73C10020 | BOLT M10x1.50x20mm (Incls. Washer) |
| 30 | 1 | ZM73C12020 | BOLT M12x1.75x20mm (Incls. Washer) |
| 29 | 2 | LC05P01376P1 | CLIP ID 65 x 101.5mm Long |
| 28 | 1 | PH05P01088D5 | CLIP Clamp, Hose -- Min 11.5 x Max 13.6mm |
| 27 | 3 | YN03E01001D4 | CLIP 195mm Long (7-43/64 in) -- Brown |
| 26 | 12 | ZN18C08007 | NUT M08x1.25mm |
| 25 | 6 | ZW16H08000 | WASHER ID 08 x OD 18 x Th 3.2mm |
| 24 | 1 | ZC16X07000 | CLIP Clamp, Hose -- Min 60 x Max 81mm |
| 23 | 3 | ZC16X06100 | CLIP Clamp, Hose -- Min 50 x Max 71mm |
| 21 | 7 | LS05P01412P1 | CLIP Clamp, Hose -- Min 95 x Max 118mm |
| 20 | 2 | 2420T2948D8 | U-BOLT M08x1.25x ID 90 x 123mm Long |
| 19 | 1 | 2420T2948D6 | U-BOLT M08x1.25x ID 64 x 100mm Long |
| 18 | 1 | LC05P01378F1 | SUPPORT |
| 17 | 1 | LS05P01448P1 | GUARD |
| 16 | 1 | LS05P01446P1 | GUARD |
| 15 | 1 | LS05P01395P1 | PLATE |
| 14 | 1 | LS05P01416P1 | Plate |
| 13 | 1 | LS05P01418P1 | TUBE 639mm Long (25-9/64 in) |
| 12 | 1 | LS05P01393P1 | TUBE 398mm Long (15-21/32 in) |
| 11 | 1 | LS05P01363P1 | TUBE 874mm Long (34-25/64 in) |
| 9 | 1 | HX11Y05068DX | HOSE ID 08 x OD 12 x 680mm |
| 8 | 1 | LS05P01297P1 | HOSE 180mm Long (7-5/64 in) |
| 7 | 1 | LS05P01360P1 | HOSE 417mm Long (16-13/32 in) |
| 6 | 1 | LS05P01417P1 | HOSE ID 88 x OD 98 x 120mm Long |
| 5 | 1 | LS05P01394P1 | HOSE 391.00 mm |
| 4 | 1 | LS05P01293P1 | HOSE ID 62 x OD 72 x 85mm Long |
| 3 | 1 | LS05P01292P1 | RADIATOR HOSE 49.00 mm ID x 457.00 mm, Radiator |
| 2 | 1 | LS05P01291P1 | RADIATOR HOSE 49.00 mm ID, 59.00 mm ID x 406.00 mm, Radiator |
| 1 | 1 | LC05P01381F1 | TANK |
