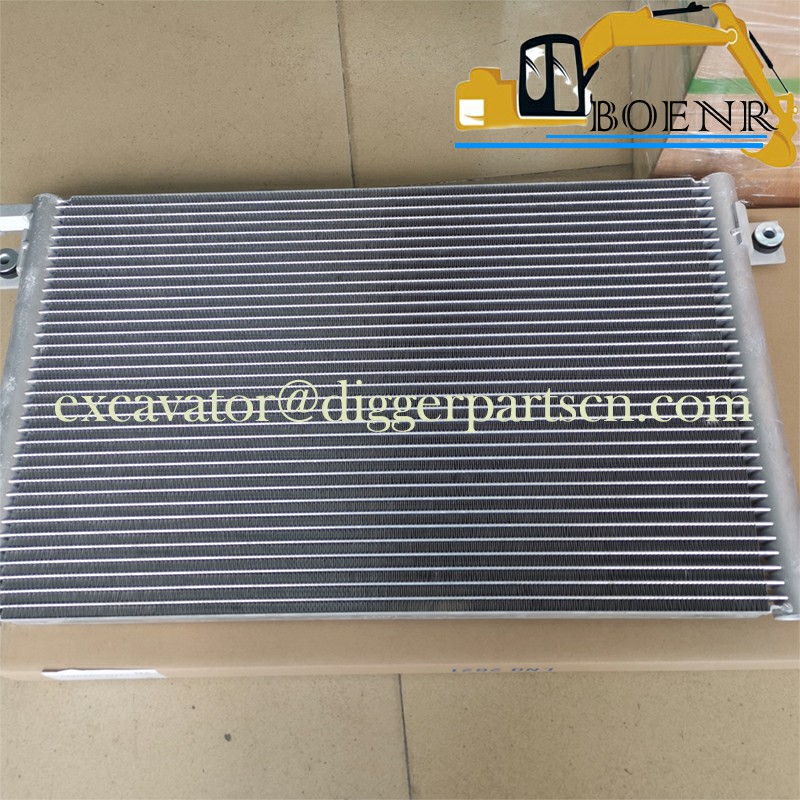

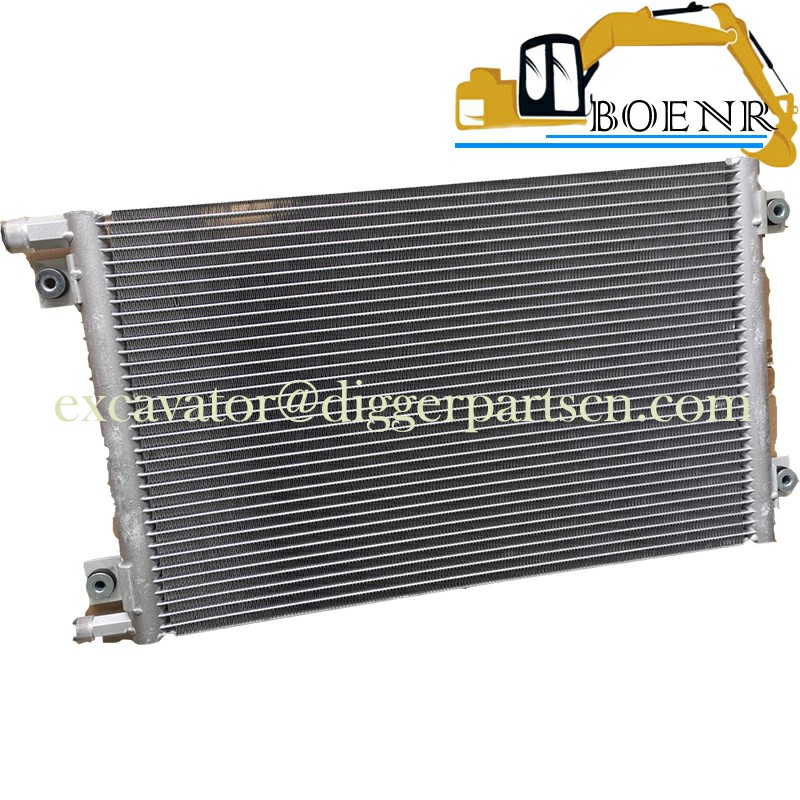

LQ20M01327F1 Air Conditioner Condenser For SK200-10 SK210-10 SK210-9 SK485-9

SK200-10 SK210-10 SK210-9 SK485-9 Air Conditioner Condenser LQ20M01327F1


Part Name                CondenserPart NumberLQ20M01327F1
BrandKobelco KobekiApplicable ModelSK200-10 SK210-10 SK210-9 SK485-9

Weight: 5.5 kg

LQ20M01327F1 Air Conditioner Condenser For SK200-10 SK210-10 SK210-9 SK485-9

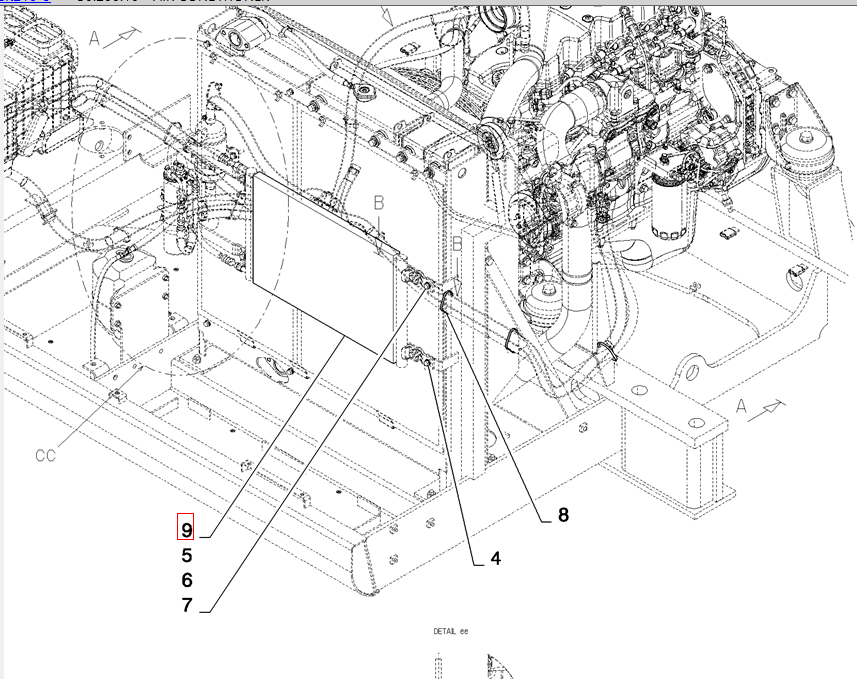

Installation Diagram for Components

Parts Catalog

ITEMQTYPART NUMBERPART NAME
142ZC16X02000CLIP
131YN20M01046DBFLEXIBLE HOSE   Protective Plastic
121R18T0026D55HOSE
111YN20M01046DPRIGID TUBE Protective   Plastic
101R18T0026D14HEATER HOSE 12.00 mm   ID x 2100.0 mm
91LQ20M01327F1CONDENSER
83PY01P01043D4CLIP
72ZS18C08025SCREW
62ZW26X08000WASHER
52ZW16P08000WASHER
42YN20M01841P1BRACKET
32ZS18C10030SCREW
22ZW16P10000WASHER
11NSSNOT SERVICED   SEPARATELY Assembly, Air Conditioner



Air Conditioner   Install YN20M00134F1
