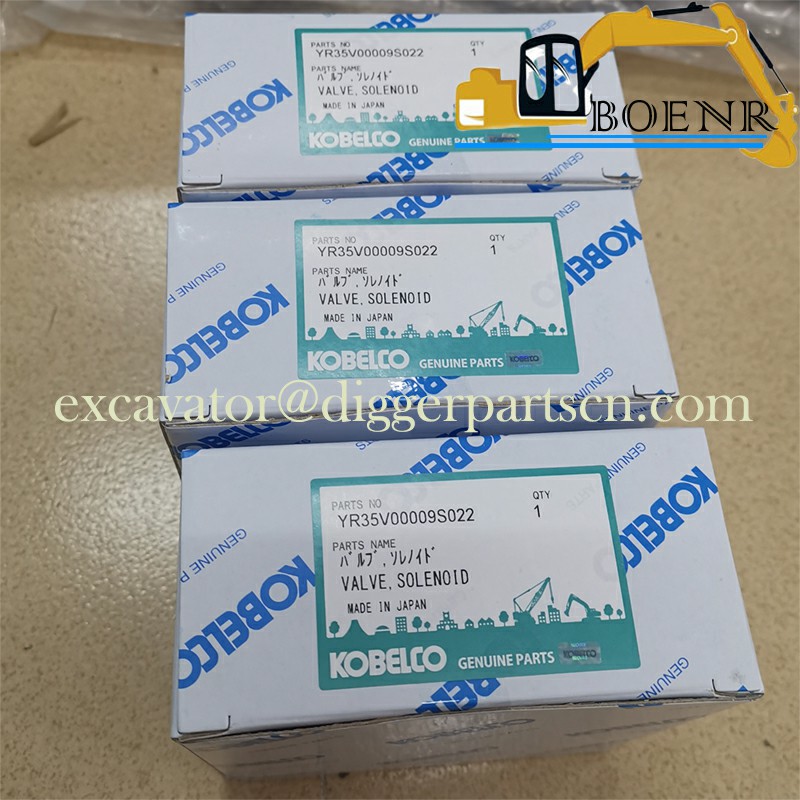

YR35V00009S022 Solenoid Valve For SK200-8 SK210DLC-8 SK215SRLC SK235SR SK250-6E SK290-6E SK480-6E
SK200-8 SK210DLC-8 SK215SRLC SK235SR SK250-6E SK290-6E SK480-6E SK485-8 SK80SC Solenoid Valve YR35V00009S022
| Part Name | Solenoid Valve | Part Number | YR35V00009S022 |
| Brand | Kobelco Kobeki | Applicable Models | SK200-8 SK210DLC-8 SK215SRLC SK235SR SK250-6E SK290-6E SK480-6E SK485-8 SK80SC |
Weight:0.45 KG

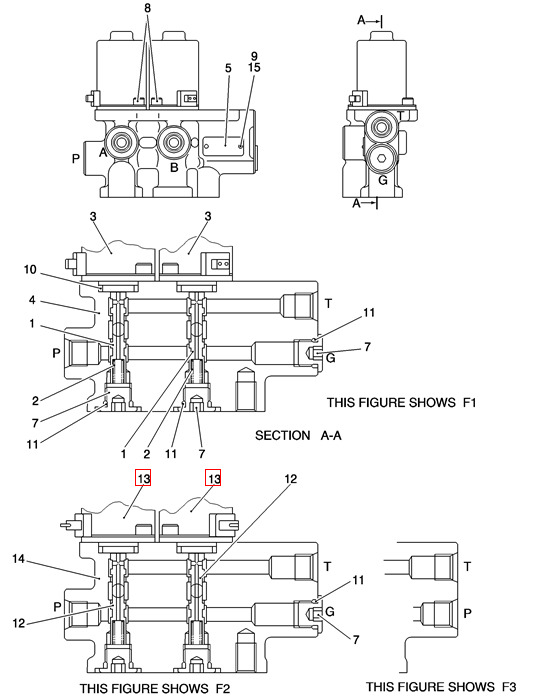

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 15 | 2 | YN30V00080S023 | SCREW Rivet (For F2, F3 ONLY) |
| 14 | 1 | NSS | NOT SERVICED SEPARATELY Body (For F2, F3 ONLY) |
| 13 | 2 | YR35V00009S022 | SOLENOID VALVE Assy (For F2, F3 ONLY) |
| 12 | 2 | NSS | NOT SERVICED SEPARATELY Spool (For F2, F3 ONLY) |
| 3 | ZD12P01100 | O-RING (For F1, F2 ONLY) | |
| 11 | 2 | ZD12P01100 | O-RING (For F3 ONLY) |
| 10 | 2 | ZD11P01600 | O-RING |
| 9 | 2 | EZ30V00001S037 | SCREW Rivet (For F1 ONLY) |
| 8 | 4 | LC35V00004S008 | SCREW Cap |
| 3 | LC35V00004S007 | PLUG (For F1, F2 ONLY) | |
| 7 | 2 | LC35V00004S007 | PLUG (For F3 ONLY) |
| 5 | 1 | NSS | NOT SERVICED SEPARATELY Name Plate |
| 4 | 1 | NSS | NOT SERVICED SEPARATELY Body (For F1 ONLY) |
| 3 | 2 | LC35V00004S005 | VALVE Assy, Solenoid (For F1 ONLY) |
| 2 | 2 | 2436U2802S3 | SPRING |
| 1 | 2 | NSS | NOT SERVICED SEPARATELY Spool (For F1 ONLY) |
| AR | LC35V00004F3 | HYDRAULIC VALVE Assy, Solenoid | |
| AR | LC35V00004F2 | SOLENOID VALVE Assy, Solenoid | |
| AR | LC35V00004F1 | SOLENOID VALVE Assy, Solenoid |
