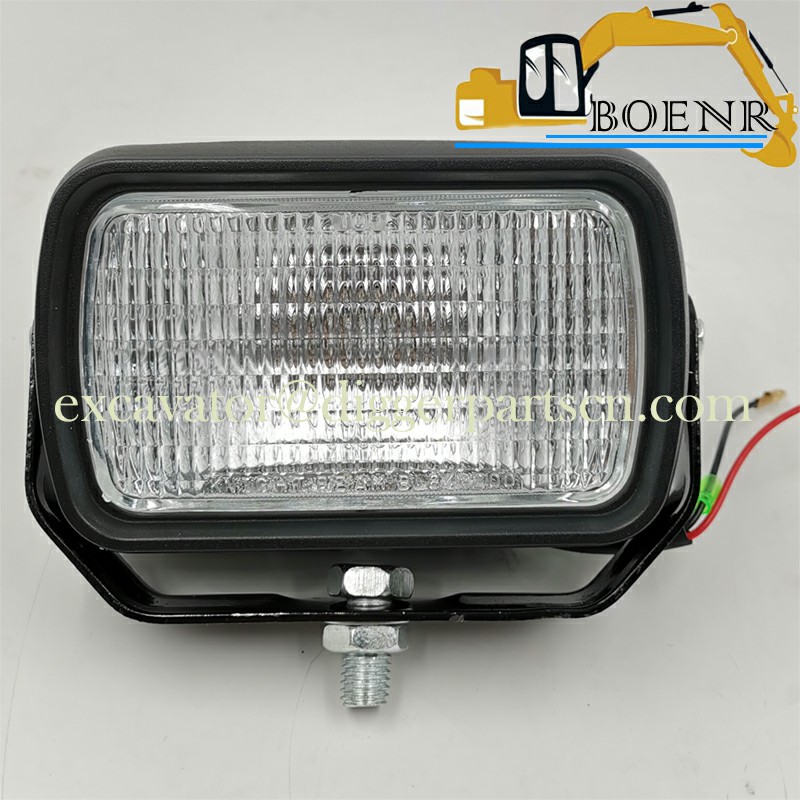

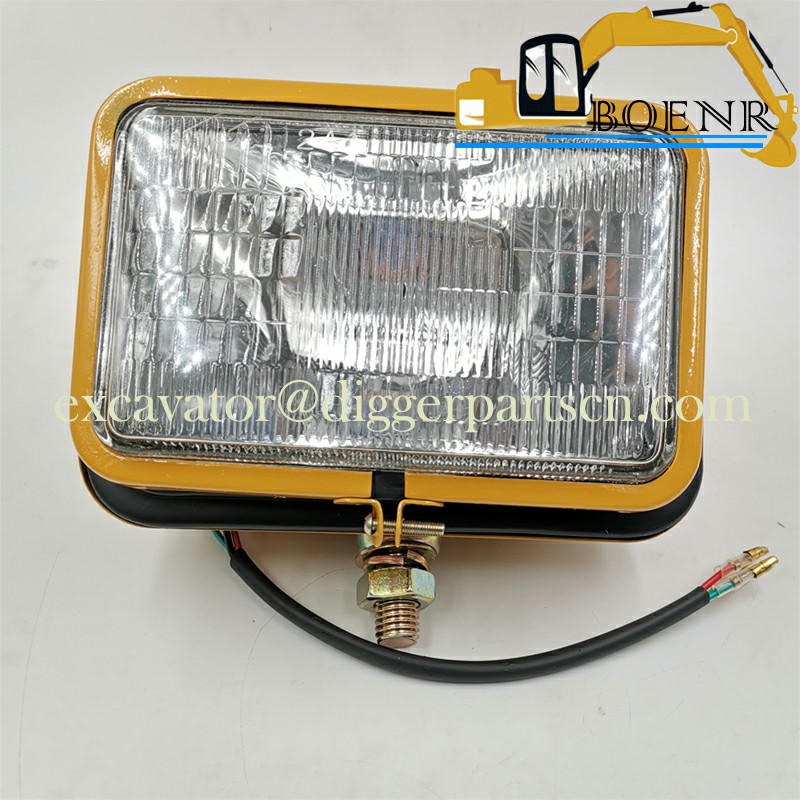

YN80S00012F1 2456R442F1 Lamp For SK130-8 SK140-8 SK200-8 SK210-8 SK350-8 SK380-8 SK485-8
SK130-8 SK140-8 SK200-8 SK210-8 SK350-8 SK380-8 SK485-8 Lamp YN80S00012F1 2456R442F1
| Part Name | Lamp | Part Number | YN80S00012F1 2456R442F1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK130-8 SK140-8 SK200-8 SK210-8 SK350-8 SK380-8 SK485-8 |
Weight: 0.8KG

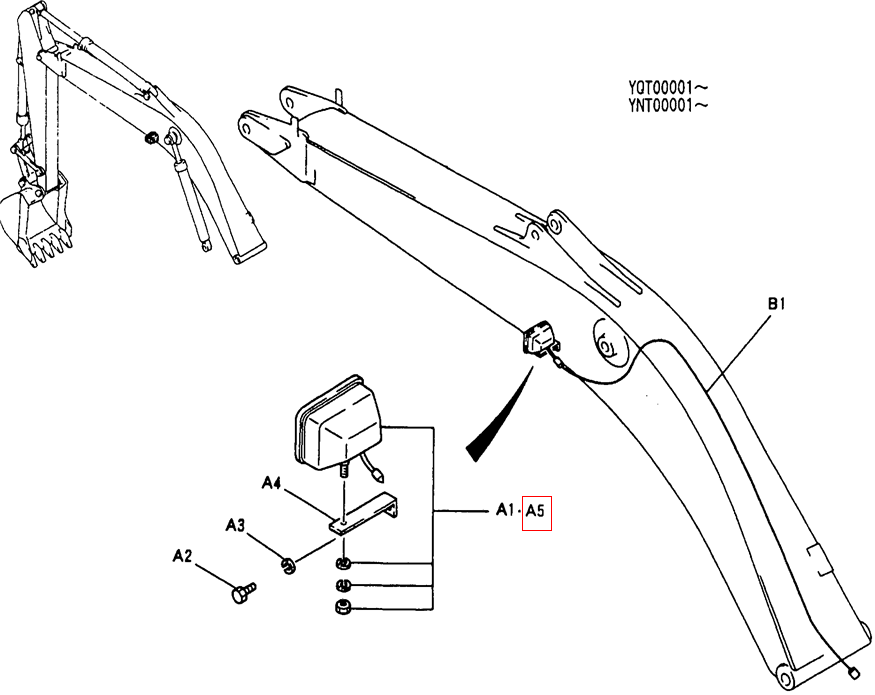

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| B1 | 1 | YN15E01005D2 | WIRE HARNESS |
| AR | YN15E00001F1 | HARNESS ASSY, BOOM | |
| A5 | 1 | YN80S00012F1 | LIGHT ASSY P. 270-01, ASN YNT00730 |
| A4 | 1 | 2416T13056 | BRACKET |
| A3 | 1 | ZW26X10000 | LOCK WASHER ID 10 x OD 18 x Th 2.5mm |
| A2 | 1 | ZS18C10020 | SCREW M10x1.50x20mm |
| A1 | 1 | YW80S00001F1 | LIGHT ASSY. P. 270-01, BTW YNT00001 & YNT00729 |
| AR | YN80E00005F2 | LIGHT INSTAL, ASN YNT00730 | |
| AR | YN80E00005F1 | LIGHT INSTAL, BTW YNT00001 & YNT00729 |
