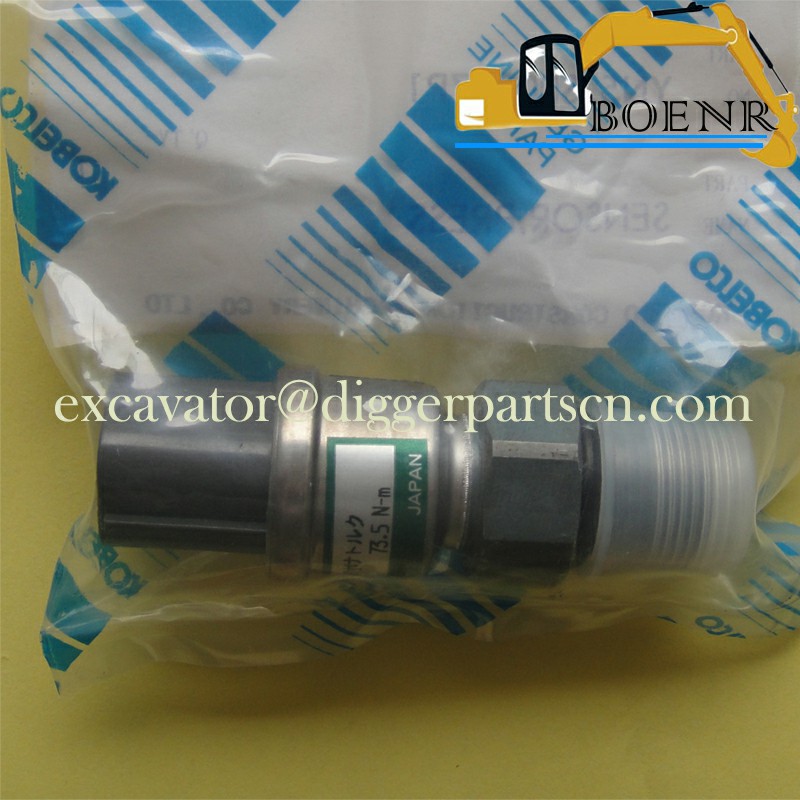

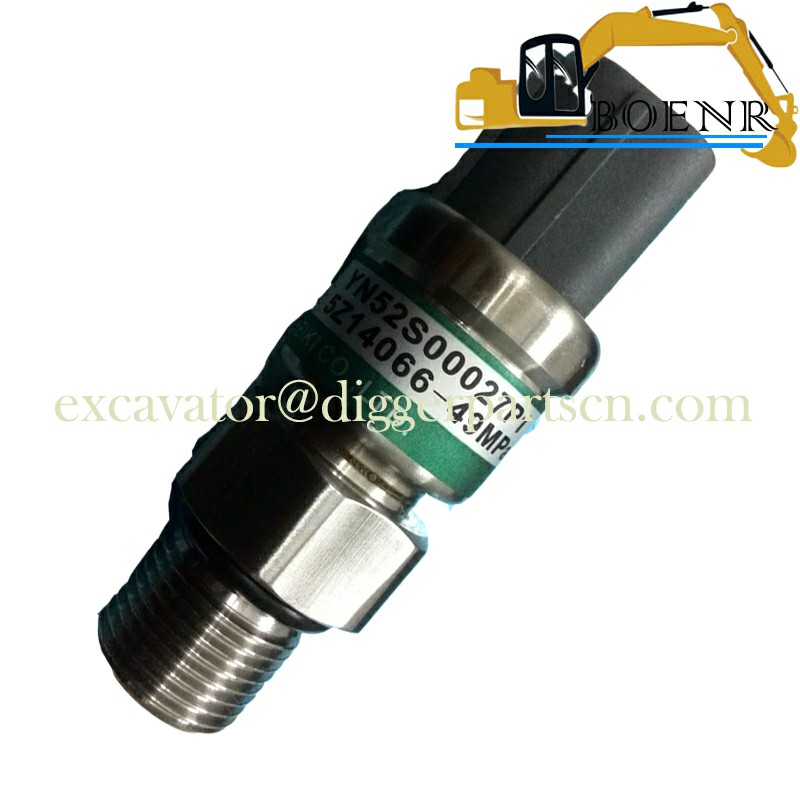

YN52S00027P1 YY52S00033F2 pressure sensor For SK200-6E SK330-6E SK230-6E SK200-5
SK200-6E SK330-6E SK230-6E SK200-5 pressure sensor YN52S00027P1 YY52S00033F2
| Part Name | pressure sensor | Part Number | YN52S00027P1 YY52S00033F2 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-6E SK330-6E SK230-6E SK200-5 |
Weight:0.5KG

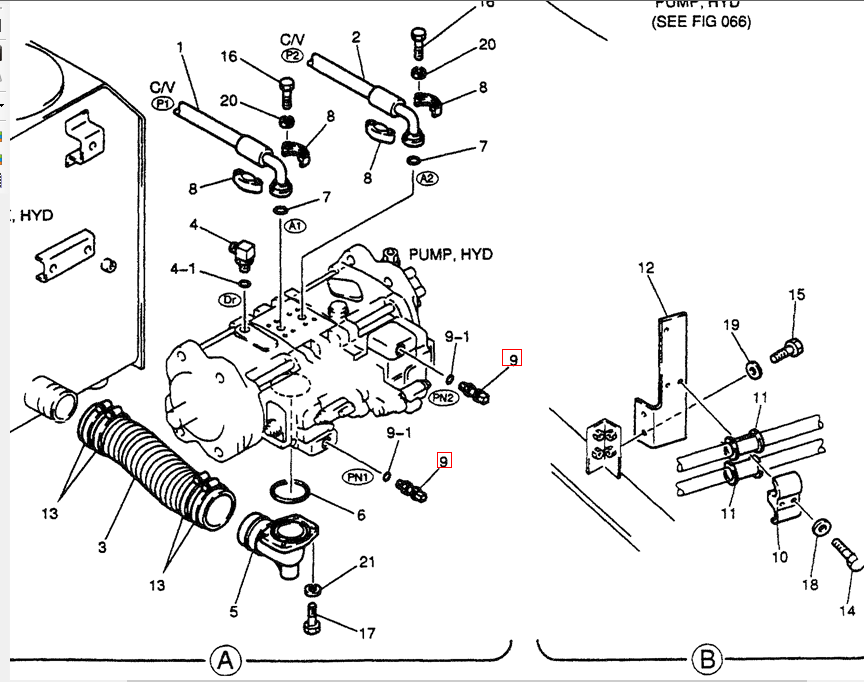

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 21 | 4 | ZW26K12000 | LOCK WASHER ID 12 x OD 17.8 x Th 2.5mm |
| 20 | 8 | ZW26K10000 | WASHER Lock -- ID 10 x OD 15.7 x Th 2.5mm |
| 19 | 2 | ZW16H12000 | WASHER ID 13 x OD 26 x Th 3.2mm |
| 18 | 2 | ZW16H10000 | WASHER ID 11 x OD 24 x Th 3.2mm |
| 17 | 4 | ZS28C12030 | CAP Screw -- M12x1.75x30mm |
| 16 | 8 | ZS28C10035 | CAP Screw -- M10x1.50x35mm |
| 15 | 2 | ZS18C12030 | SCREW M12x1.75x30mm |
| 14 | 2 | ZS18C10075 | SCREW M10x1.50x75mm |
| 13 | 4 | ZC16X09100 | CLIP Clamp, Hose -- Min 80 x Max 101mm |
| 12 | 1 | YN30H01040P1 | SUPPORT |
| 11 | 2 | YN03H01432P1 | BUSHING Split -- ID 28 x OD 38 x 70mm Long |
| 10 | 1 | YN03H01427P1 | CLAMP 122.5x50x48mm |
| 9-4 | 1 | YT42H01128P1 | ELBOW (Added with new part # press switch) |
| 9-3 | 1 | LS30H01024P1 | HYD CONNECTOR (Added with new part # press switch) |
| 9-2 | 1 | YN13E01610P1 | HARNESS (Added with new part # press switch) |
| 9-1 | 1 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| 9-0 | 1 | YY52S00033F2 | SENSOR Kit Includes Ref 9 - 9-4 (Refer to SB S030-41-K003) |
| 9 | 2 | LS52S00015P1 | SENSOR Pressure (High Pressure) (Incls. O-Ring ZD12P01400) |
| 9 | 2 | LC52S00002P1 | PRESSURE SWITCH SENSOR, PRESSURE (H.P.) (Replaced by LS52S00015P1) |
| 8 | 4 | ZE13X12000 | CLAMP Half -- (Incls. Capscrew & Lockwasher) |
| 7 | 2 | ZD12P02600 | O-RING ID 25.70 ± 0.26 x OD 32mm |
| 6 | 1 | ZD11G07500 | O-RING ID 74.40 ± 0.65 x OD 80mm |
| 5 | 1 | YN30H01010P1 | ELBOW |
| 4-1 | 1 | ZD12P02400 | O-RING ID 23.70 ± 0.24 x OD 30mm |
| 4 | 1 | ZH32X12000 | HYD CONNECTOR Elbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012) |
| 3 | 1 | YN30H01017P1 | FLEXIBLE HOSE |
| 2 | 1 | YN30H01034D1 | FLEXIBLE HOSE |
| 1 | 1 | YN30H01023D1 | FLEXIBLE HOSE |
| YN30H00003F1 | HYD. TUBE HYD LINES,PUMP |
