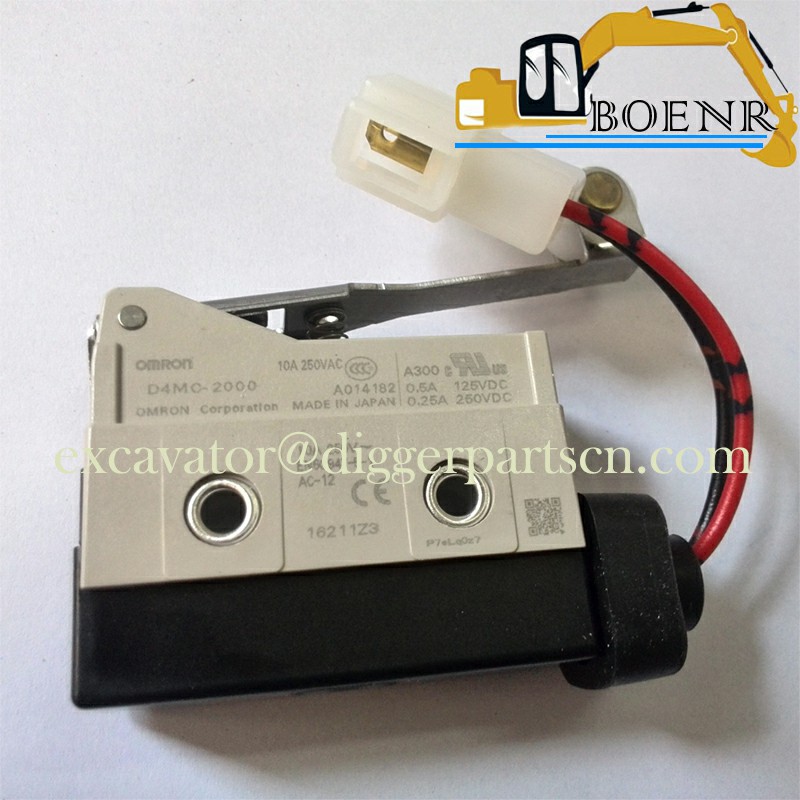

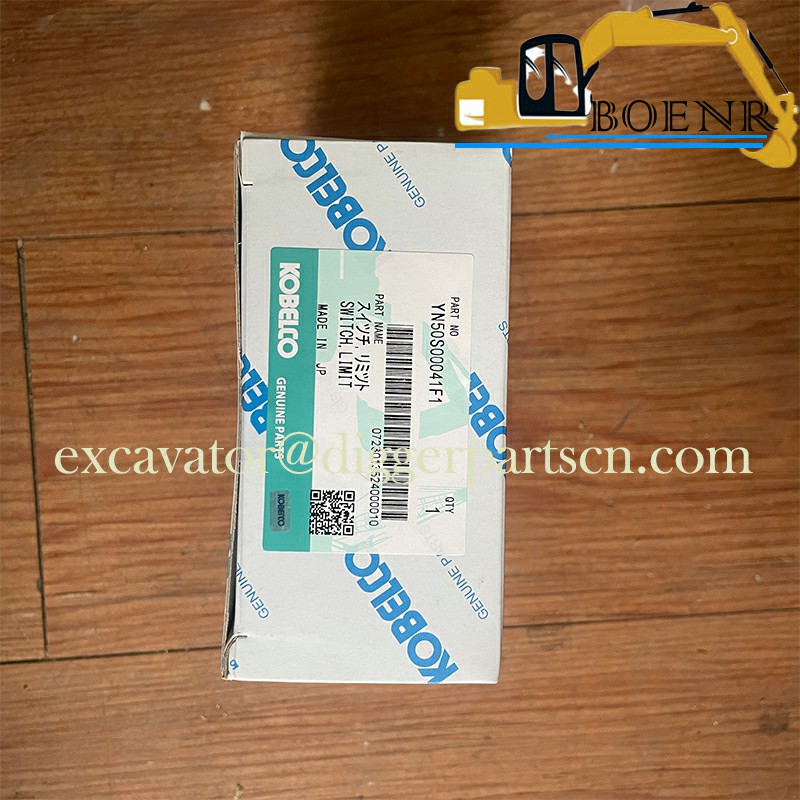

YN50S00041F1 Limit Switch For SK170-8 SK200-8 SK210D-8 SK295-8 SK350-8 SK485-8 SK140SR SK315SR
SK170-8 SK200-8 SK210D-8 SK295-8 SK350-8 SK485-8 SK140SR SK315SR SK235SR SK135SR Limit Switch YN50S00041F1
| Part Name | Limit Switch | Part Number | YN50S00041F1 |
| Brand | Kobelco , kobeki | Applicable Model | SK170-8 SK200-8 SK210D-8 SK295-8 SK350-8 SK485-8 SK140SR SK315SR SK235SR SK135SR |
Weight: 0.3KG

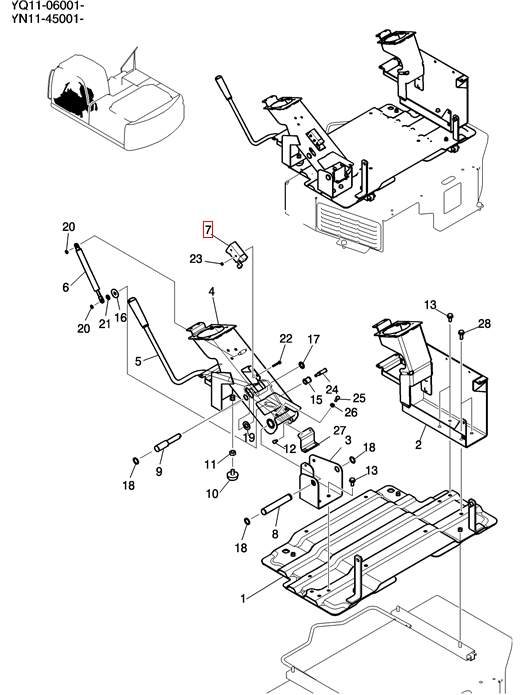

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 28 | 2 | ZM73C08025 | BOLT Sems |
| 27 | 1 | YN03M01924P1 | PLATE |
| 26 | 2 | YN03M01922P1 | WASHER |
| 25 | 2 | YN03M01921P1 | SCREW Bolt |
| 24 | 1 | YN03M01920P1 | SHAFT |
| 23 | 2 | YN03M01919P1 | NUT |
| 22 | 2 | YN03M01918P1 | SCREW Bolt |
| 21 | 1 | YN03M01917P1 | RING Retaining |
| 20 | 2 | YN03M01916P1 | RING Retaining |
| 19 | 1 | YN03M01915P1 | WASHER |
| 18 | 3 | YN03M01914P1 | RING Retaining |
| 17 | 1 | YN03M01913P1 | RING Retaining |
| 16 | 1 | YN03M01912P1 | WASHER |
| 15 | 1 | YN03M01911P1 | BUSHING |
| 13 | 6 | ZM73C08020 | BOLT Sems |
| 12 | 1 | YN03M01908P1 | SCREW Bolt |
| 11 | 1 | YN03M01907P1 | NUT |
| 10 | 1 | YN03M01906P1 | STOP LOCK Stopper |
| 9 | 1 | YN03M01905P1 | SHAFT |
| 8 | 1 | YN03M01904P1 | SHAFT |
| 7 | 1 | YN50S00041F1 | LIMIT SWITCH (2 prong switch) |
| 6 | 1 | YN20M01643P1 | SPRING , BTW YN11-45001 & YN11-46316 |
| 6 | 1 | YN20M01643P1 | SPRING , BTW YQ11-06001 & YQ11-06105 |
| 5 | 1 | YN03M01898P2 | LEVER Assy |
| 4 | 1 | YN03M01889P1 | SUPPORT Control Box |
| 3 | 1 | YN03M01886P1 | BRACKET |
| 2 | 1 | YN03M01880P1 | CONTROL Box |
| 1 | 1 | YN03M01872P1 | BRACKET Assy |
| AR | YN03M00138F1 | CONTROL Box Assy |
