YN35V00050F1 KWE5K-31/G24DB50 solenoid valve for Kobelco SK200-8 SK200-10 SK350-10 SK250-8 SK350-10
Kobelco SK200-8 SK200-10 SK350-10 SK250-8 solenoid valve KWE5K-31 G24DB50 YN35V00050F1
| Part Name | solenoid valve | Part Number | YN35V00050F1 |
| Brand | Kobelco、KPM、KOBEKI | Applicable Model | SK140SR SK130-8 SK140-8 SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK380-8 SK430-8 SK450-8 SK480-8 SK500-8 SK130-10 SK140-10 SK200-10 SK210-10 SK250-10 SK260-10 SK350-10 SK380-10 SK430-10 SK450-10 SK480-10 SK500-10 |
Weight: 0.6KG

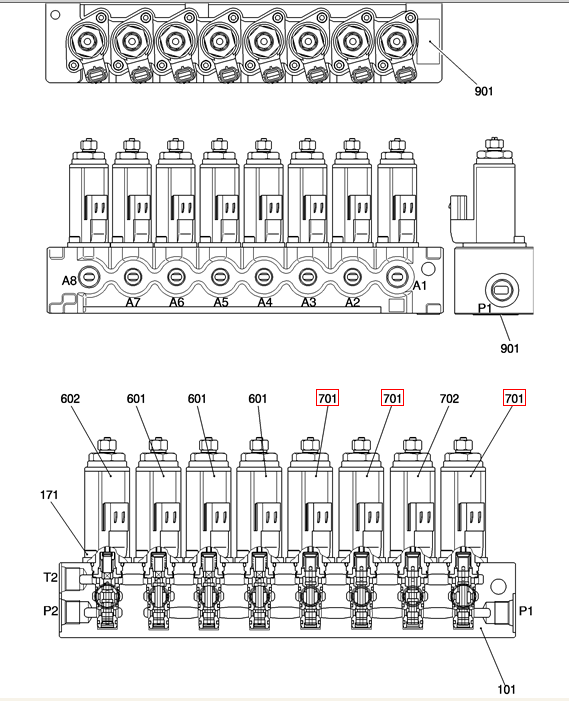

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 901 | 1 | YY35V00007S901 | Name Plate |
| 702 | 1 | YN35V00051F1 | VALVE Assy, Solenoid ( See HC854) |
| 701 | 3 | YN35V00050F1 | VALVE Assy, Solenoid ( See HC853) |
| 602 | 1 | YN35V00049F1 | VALVE Assy, Solenoid ( See HC852) |
| 601 | 3 | YN35V00048F1 | VALVE Assy, Solenoid (See HC851) |
| 171 | 16 | YN35V00047S171 | SCREW Cap |
| 101 | 1 | YN35V00047S101 | CASE |
| AR | YN35V00047F1 | HYDRAULIC VALVE Valve Assy, Solenoid |
When an 8-series excavator displays error codes F033 and F013, this solenoid valve must be inspected. The solenoid valve is located in the system responsible for travel or boost functions.
