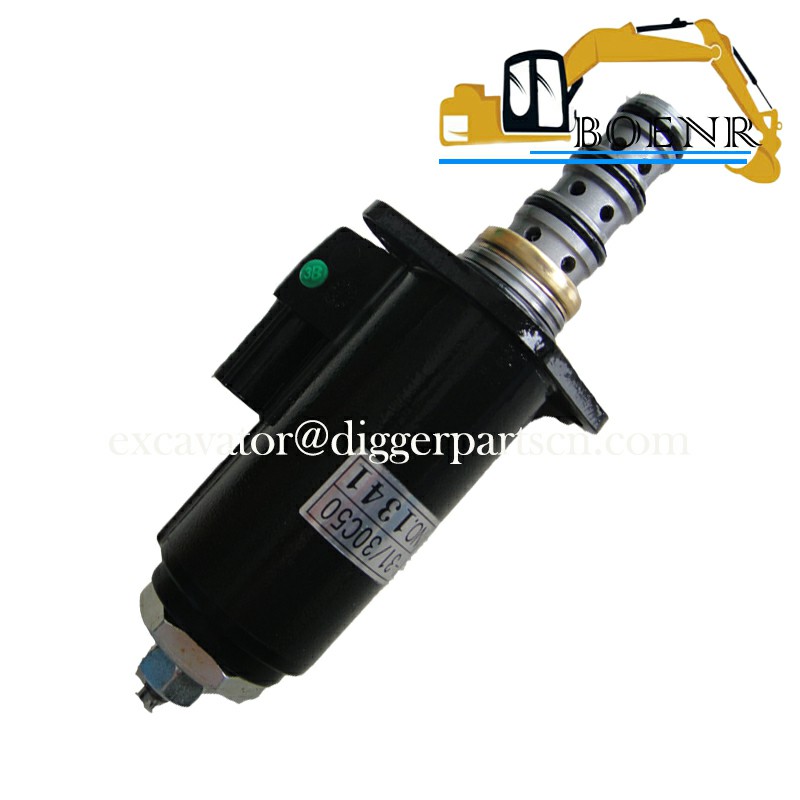

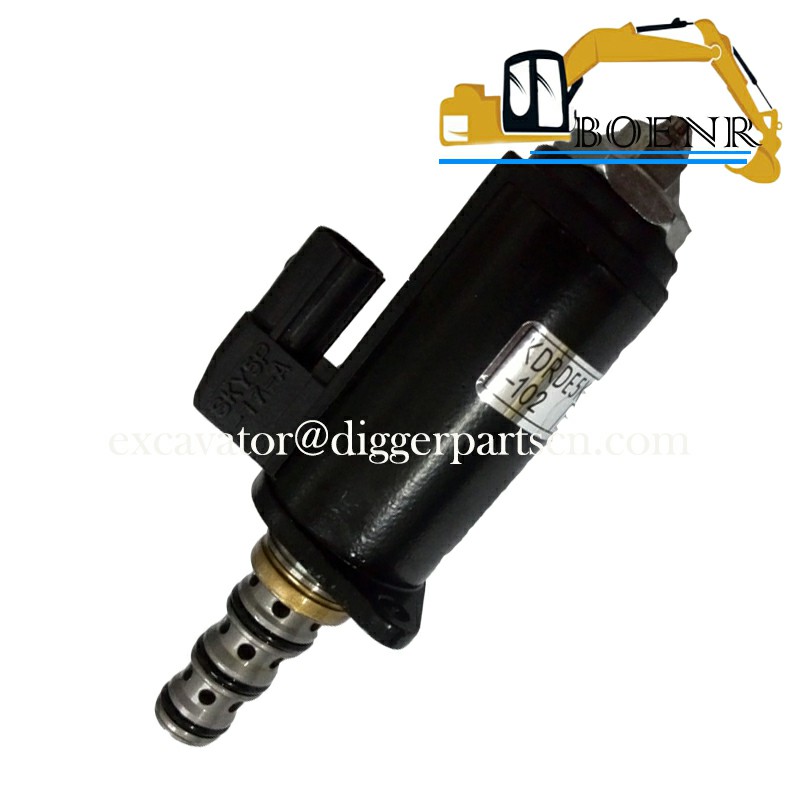

YN35V00041F1 Kdrde5K-31 30C50 -102 Solenoid Valve SK200-6E SK210LC-6E SK250LC-6E SK290LC-6E
SK200-6E SK210LC-6E SK250LC-6E SK290LC-6E Solenoid Valve YN35V00041F1 Kdrde5K-31 30C50 -102
| Part Name | Solenoid Valve | Part Number | YN35V00041F1 Kdrde5K-31/30C50-102 |
| Brand | Kobelco、KPM、KOBEKI | Applicable Model | SK200-6E SK210LC-6E SK250LC-6E SK290LC-6E |
Weight: 0.6KG

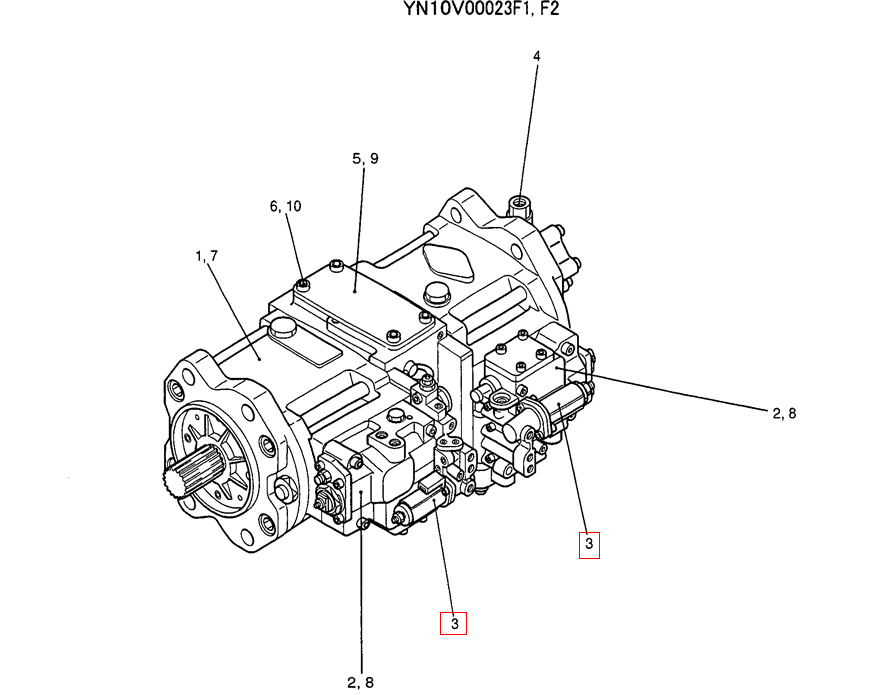

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 6 | 4 | ZS23C10016 | SCREW M10x1.50x16mm -- Not Shown |
| 5 | 1 | YN10V00018S005 | COVER Remarks: (not illustrated) |
| 4 | 1 | YN10V00014F2 | PUMP Assembly, GEAR, Remarks: SEE P-YN10V00014-1 |
| 3 | 2 | YN35V00041F1 | SOLENOID VALVE Remarks: SEE P-YN35V00041-1 |
| 2 | 2 | YN10V01006F1 | REGULATOR |
| 1 | 1 | YN10V00020F2 | PUMP ASSY, Remarks: SEE P-YN10V00020-1 |
| YN10V00023F1 | PUMP ASSY, HYD (STD) |
