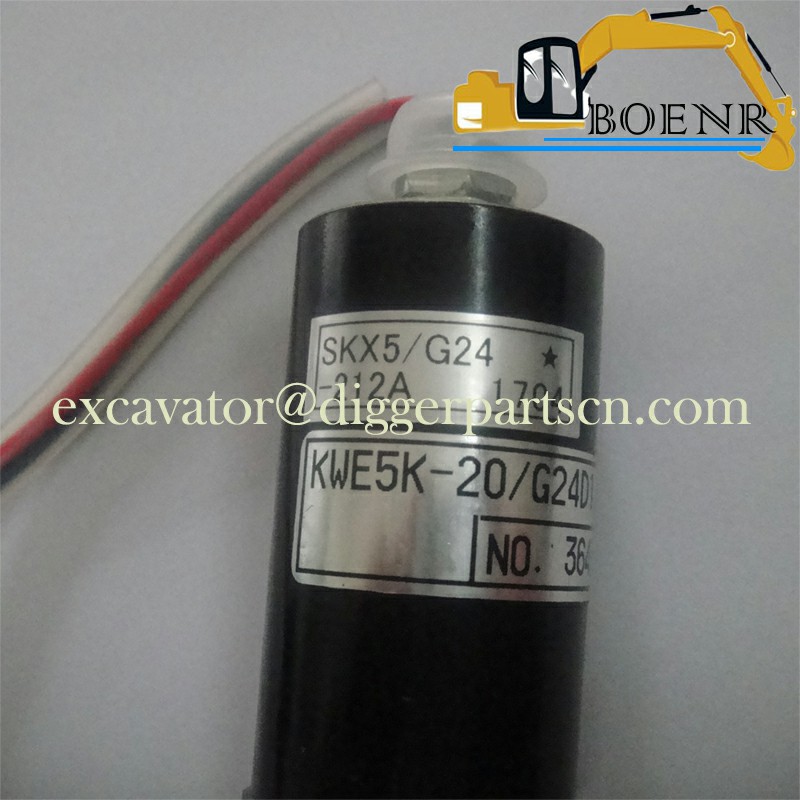

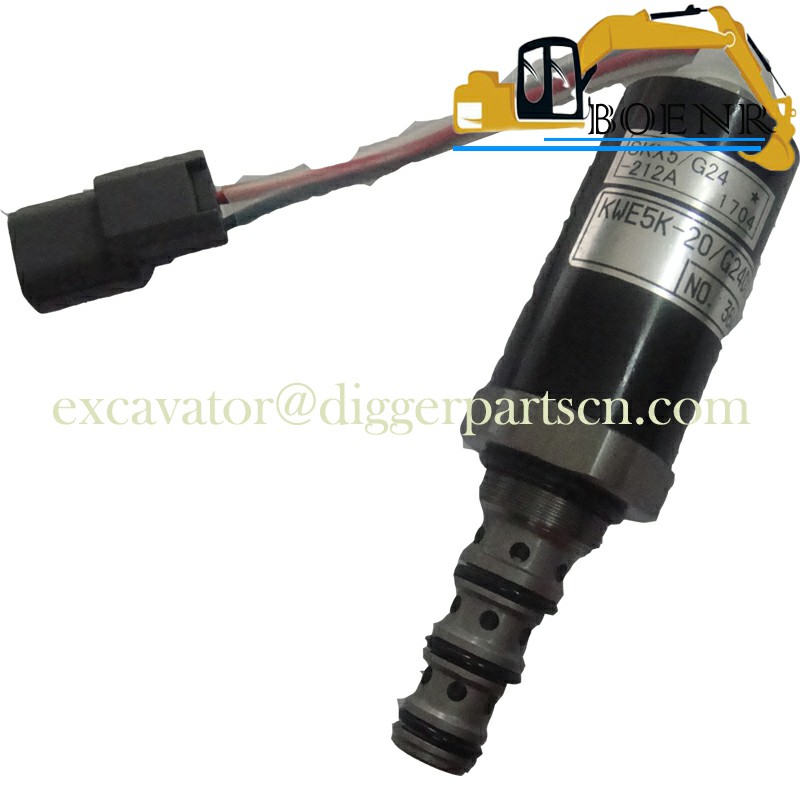

YN35V00005F1 KWE5K-20G24D12 Solenoid Valve For SK200-3 SK200-5 SK120-5
SK200-3 SK200-5 SK120-5 Solenoid Valve YN35V00005F1 KWE5K-20G24D12
| Part Name | Solenoid Valve | Part Number | YN35V00005F1 KWE5K-20G24D12 |
| Brand | Kobeki KPM | Applicable Model | SK200-3 SK200-5 SK120-5 |
Weight: 0.6 kg

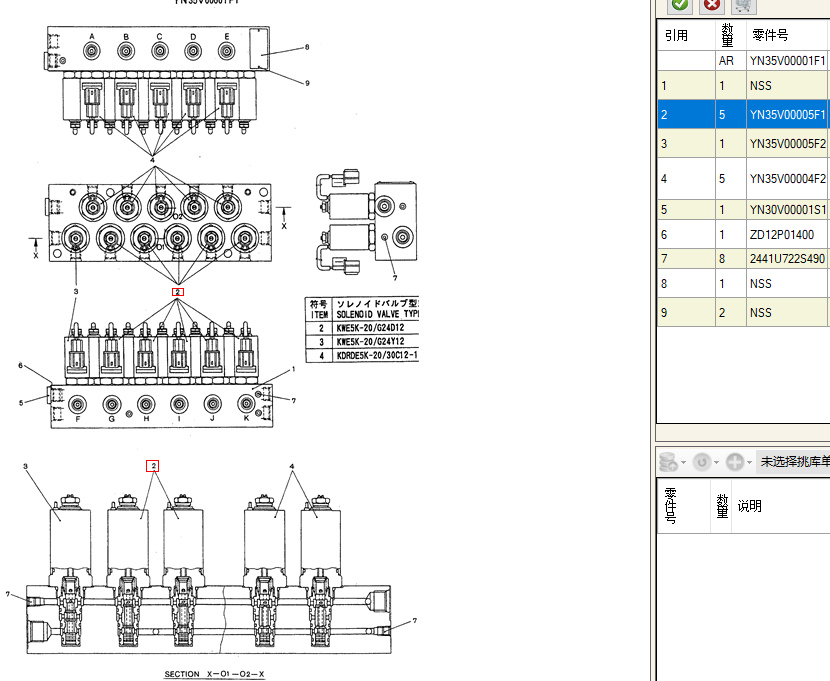

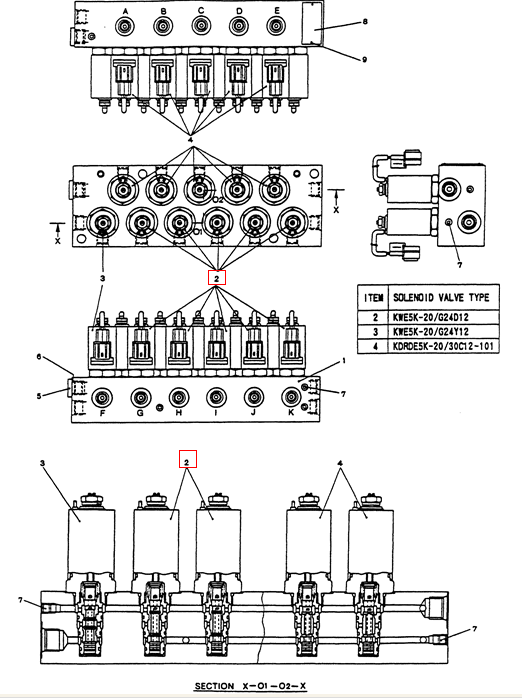

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 9 | 2 | NSS | NOT SERVICED SEPARATELY SCREW |
| 8 | 1 | NSS | NOT SERVICED SEPARATELY NAME PLATE |
| 7 | 8 | 2441U722S490 | PLUG 1/16" NPTF |
| 6 | 1 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| 5 | 1 | YN30V00001S156 | PLUG |
| 4 | 5 | YN35V00004F2 | SOLENOID (PROPORTIONAL REDUCING) |
| 3 | 1 | YN35V00005F2 | SOLENOID |
| 2 | 5 | YN35V00005F1 | SOLENOID |
| 1 | 1 | NSS | NOT SERVICED SEPARATELY MANIFOLD |
| YN35V00001F1 | VALVE |
